Microchip, DAC 12 bit- 1%FSR Serial (SPI), 8-Pin MSOP

Name: Microchip, DAC 12 bit- 1%FSR Serial (SPI), 8-Pin MSOP
Brand: Microchip
SKU: 165-3555
Price: 9.84 MYR
Availability: InStock

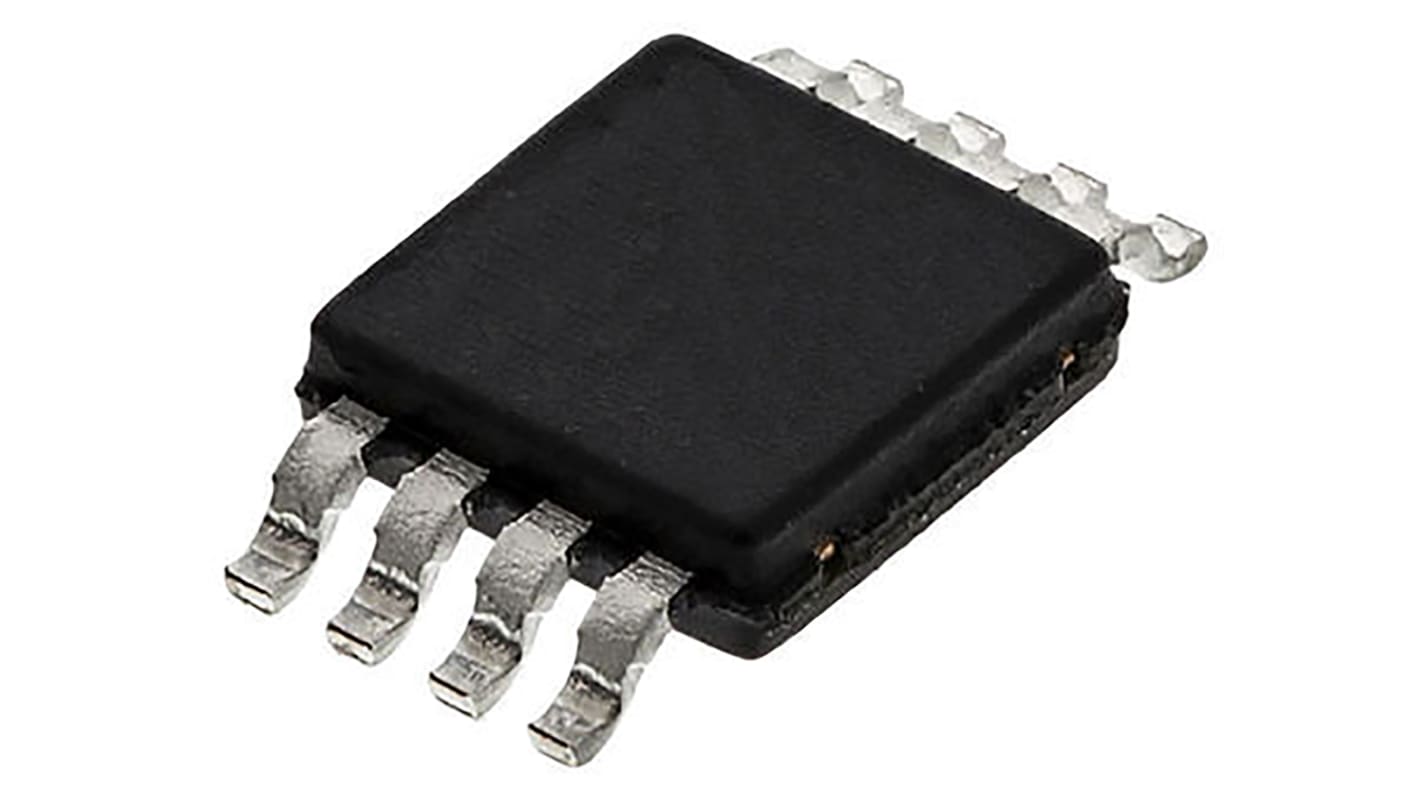

This image is representative of the product range

Bulk discount available

Subtotal (1 tube of 100 units)**

MYR983.90

400 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

**price indicative

Attribute	Value
Architecture	Resistor String
Resolution	12 bit
Full Scale Error	1%FSR
Integral Nonlinearity Error	12LSB
Number of DAC Channels	1
Mounting Type	Surface Mount
Package Type	MSOP
Pin Count	8
Maximum Settling Time	4.5µs
Digital Interface Type	Serial (SPI)
Output Polarity	Bipolar
Voltage Reference	External
Power Supply Type	Single
Typical Single Supply Voltage	5.5 V
Maximum Operating Temperature	125 °C
Dimensions	3 x 3 x 0.95mm
Minimum Operating Temperature	-40 °C
