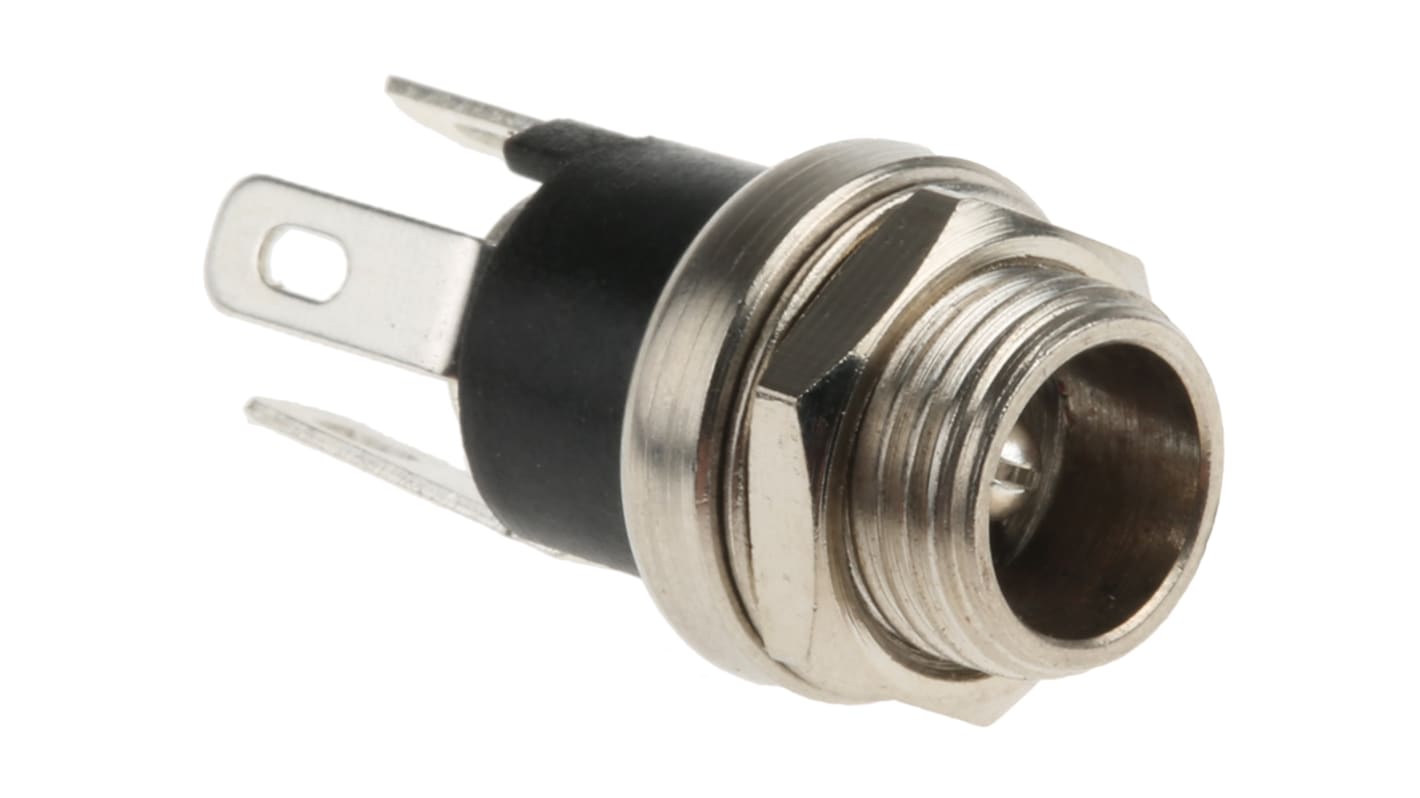

Lumberg, 16 DC Socket Rated At 500.0mA, 12.0 V, Panel Mount, length 13.2mm, Nickel, Silver
- RS Stock No.:
- 190-3254
- Mfr. Part No.:
- 1614 19
- Manufacturer:
- Lumberg
Temporarily out of stock - back order for despatch 02/05/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Bag of 250)
MYR12.508
| Units | Per Unit | Per Bag* |
| 250 - 1000 | MYR12.508 | MYR3,127.00 |
| 1250 + | MYR11.257 | MYR2,814.25 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 190-3254
- Mfr. Part No.:
- 1614 19
- Manufacturer:
- Lumberg
Technical data sheets
Legislation and Compliance
Product Details
1614 Chassis Socket
From Lumberg, the 1614 series chassis sockets are built with superb quality. With a break contact and solder wyes termination, the chassis socket is back mounted for a flush and secure fitting. All models are highly reliable and excellent quality.
Features & Benefits
• High Performance
• Conveniently Back-Mounted
• Conveniently Back-Mounted
Lumberg Connectors - IP40
Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.
Specifications
Attribute | Value |
|---|---|
| DC Power Connector Type | DC Socket |
| Current Rating | 500.0mA |
| Body Orientation | Straight |
| Voltage Rating | 12.0 V |
| Length | 13.2mm |
| Width | 10.8 (Dia.)mm |
| Mounting Type | Panel Mount |
| Pin Diameter | 2.1mm |
| Contact Plating | Nickel, Silver |
| Contact Material | Brass |
| Series | 16 |
