Units	Per Unit
1 - 4	MYR337.30
5 - 9	MYR330.55
10 - 24	MYR323.94
25 - 49	MYR317.46
50 +	MYR311.10

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	24V dc
	Input Voltage Range	18 → 75 V dc
	Power Rating	40W
	Input Voltage Nominal	48 V dc
	Output Current	1.67A
	Mounting Type	Chassis Mount
	Isolated	Yes
	Number of Outputs	1
	Isolation Voltage	2.5kV dc
	Length	63.8mm
	Width	112mm
	Depth	25.6mm
	Series	TMDC 40
	Load Regulation	0.01
	Minimum Temperature	-40°C
	Efficiency	92%
	Maximum Temperature	+65°C
	Standards Met	EN 60950-1

	Select all
	Brand TRACOPOWER
	Output Voltage 24V dc
	Input Voltage Range 18 → 75 V dc
	Power Rating 40W
	Input Voltage Nominal 48 V dc
	Output Current 1.67A
	Mounting Type Chassis Mount
	Isolated Yes
	Number of Outputs 1
	Isolation Voltage 2.5kV dc
	Length 63.8mm
	Width 112mm
	Depth 25.6mm
	Series TMDC 40
	Load Regulation 0.01
	Minimum Temperature -40°C
	Efficiency 92%
	Maximum Temperature +65°C
	Standards Met EN 60950-1

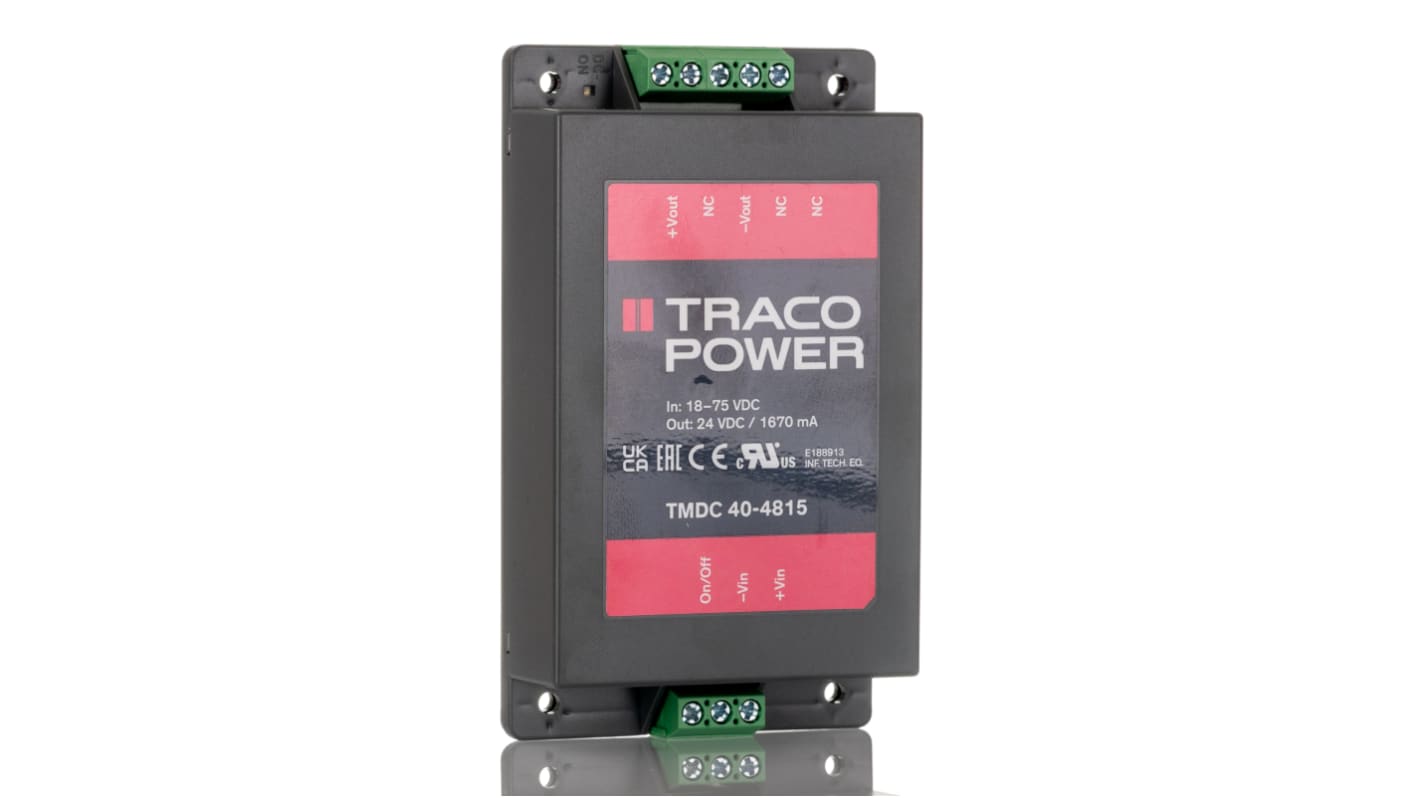

TRACOPOWER TMDC 40 DC-DC Converter, 24V dc/ 1.67A Output, 18 → 75 V dc Input, 40W, Chassis Mount, +65°C Max Temp

FREE delivery for orders over MYR500.00

TRACOPOWER TMDC 40 Series DC-DC Converter, 18 to 75 V DC Input Voltage Range, 40W Power Rating - TMDC 40-4815

Features & Benefits

Applications

Can it operate in extreme temperature conditions?

Will it provide protection against overloads and short circuits?

Is remote control functionality available?

Can it be mounted on a DIN-Rail?

Does it require a minimum load to function?
