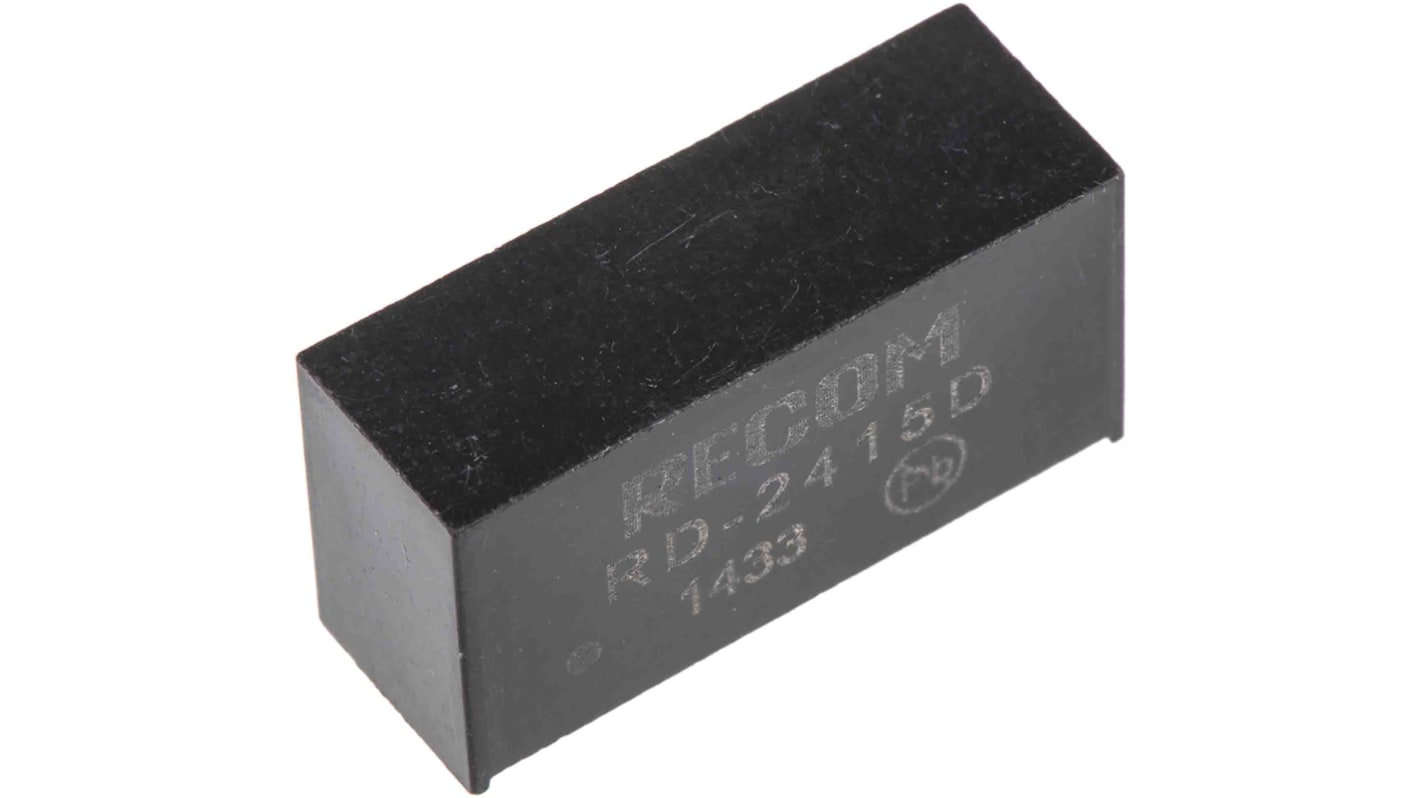

Name: Recom RD DC-DC Converter, ±15V dc/ ±66mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C
Brand: Recom
SKU: 672-8886
Price: 38.46 MYR
Availability: InStock

Essential and Operational Technologies

These cookies make our website work. This includes product images and videos, functionality for the basket, logging in, remembering your username, registration and My Account.

We use optimisation cookies to test new features and designs on our website. The information collected helps us improve our website and our customers' experience.

Advertising

These cookies are used to understand the performance and relevancy of our adverts, to provide you with personalised adverts on other websites and social media, to track when you have arrived at our site from a recognised third-party affiliate website, and to track if you made a purchase based on the adverts we displayed to you.

Recommendations

These cookies enable us to provide personalised product and content recommendations, to make the browsing experience more relevant to you.

Functionality

These cookies are used to offer customer surveys and feedback, to improve search results, and to allow you to share content from our website on social media.

Analytics

These cookies help us improve our website by collecting and reporting information on how you use it.

Units	Per Unit
1 - 6	MYR38.46
7 - 12	MYR37.65
13 +	MYR36.53

Select all	Attribute	Value
	Brand	Recom
	Output Voltage	±15V dc
	Input Voltage Range	21.6 → 26.4 V dc
	Power Rating	2W
	Input Voltage Nominal	24 V dc
	Output Current	±66mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	2
	Package	SIP
	Isolation Voltage	1kV dc
	Length	19.65mm
	Width	7.05mm
	Depth	10.2mm
	Series	RD
	Load Regulation	±10%
	Efficiency	82 → 86%
	Minimum Temperature	-40°C
	Maximum Temperature	+85°C

	Select all
	Brand Recom
	Output Voltage ±15V dc
	Input Voltage Range 21.6 → 26.4 V dc
	Power Rating 2W
	Input Voltage Nominal 24 V dc
	Output Current ±66mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 2
	Package SIP
	Isolation Voltage 1kV dc
	Length 19.65mm
	Width 7.05mm
	Depth 10.2mm
	Series RD
	Load Regulation ±10%
	Efficiency 82 → 86%
	Minimum Temperature -40°C
	Maximum Temperature +85°C

Recom RD DC-DC Converter, ±15V dc/ ±66mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C

FREE delivery for orders over MYR500.00

Recom 2W SIP Dual Output Unregulated Isolated DC-DC Converter - RD Series

Note

Standards

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
