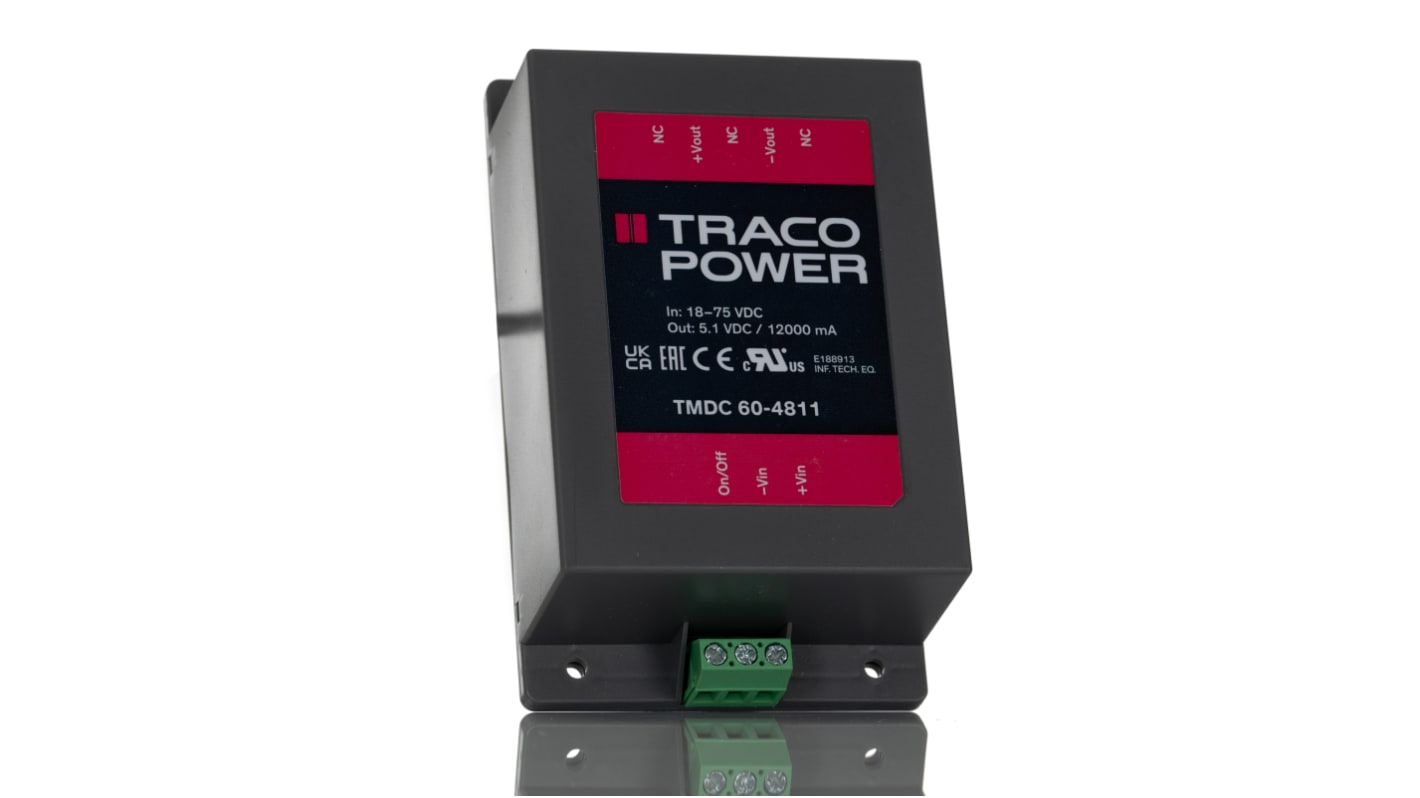

TRACOPOWER TMDC 60 DC-DC Converter, 5.1V dc/ 12A Output, 18 → 75 V dc Input, 60W, DIN Rail Mount, +85°C Max Temp
- RS Stock No.:
- 198-4631
- Mfr. Part No.:
- TMDC 60-4811
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)**
MYR403.38
Temporarily out of stock - back order for despatch 09/10/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 1 - 4 | MYR403.38 |
| 5 - 9 | MYR391.27 |
| 10 - 24 | MYR379.17 |
| 25 - 49 | MYR371.10 |
| 50 + | MYR363.03 |
**price indicative
- RS Stock No.:
- 198-4631
- Mfr. Part No.:
- TMDC 60-4811
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5.1V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 60W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 12A | |
| Mounting Type | DIN Rail Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -2 → +2% | |
| Package | Encapsulated | |
| Isolation Voltage | 2.5kV | |
| Length | 112mm | |
| Depth | 38mm | |
| Width | 67.8mm | |
| Series | TMDC 60 | |
| Railway Approved | No | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +85°C | |
| Standards Met | IEC/EN 62368-1 | |
| Efficiency | 0.91 | |
| Medical Approved | No | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5.1V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 60W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 12A | ||
Mounting Type DIN Rail Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -2 → +2% | ||
Package Encapsulated | ||
Isolation Voltage 2.5kV | ||
Length 112mm | ||
Depth 38mm | ||
Width 67.8mm | ||
Series TMDC 60 | ||
Railway Approved No | ||
Load Regulation 0.01 | ||
Maximum Temperature +85°C | ||
Standards Met IEC/EN 62368-1 | ||
Efficiency 0.91 | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
