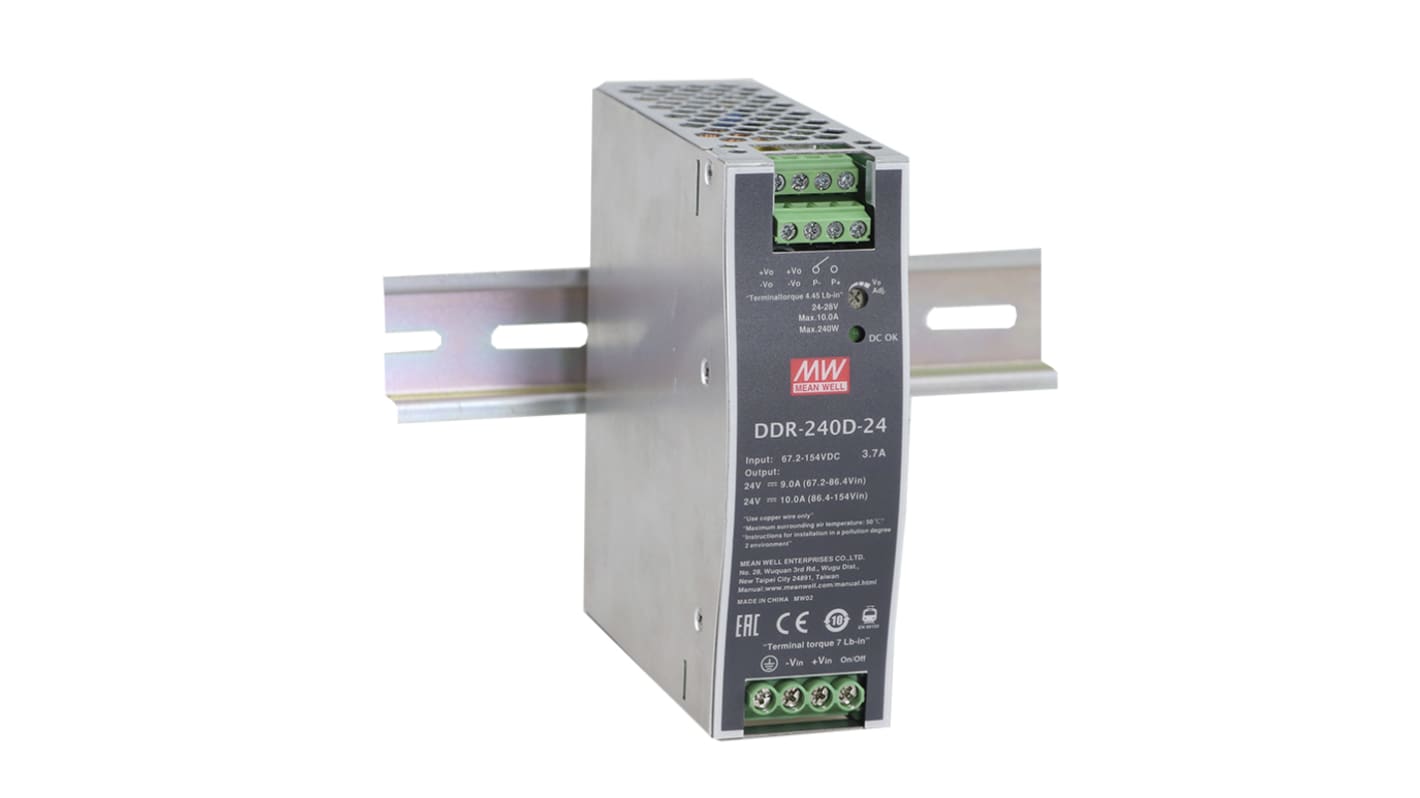

MEAN WELL DDR-240 DC/DC Converter, 24V dc/ 10 A, 67.2V dc Input, 33.6V Input, DIN Rail 240 W, 70 °C Max Temp -40 °C Min
- RS Stock No.:
- 179-2848
- Distrelec Article No.:
- 303-07-824
- Mfr. Part No.:
- DDR-240C-24
- Manufacturer:
- MEAN WELL
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR576.81
FREE delivery for orders over RM 150.00
In Stock
- Plus 118 unit(s) shipping from 14 September 2026
- Plus 40 unit(s) shipping from 21 September 2026
- Plus 40 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR576.81 |
| 5 - 9 | MYR564.72 |
| 10 - 24 | MYR547.77 |
| 25 - 49 | MYR534.28 |
| 50 + | MYR522.60 |
*price indicative
- RS Stock No.:
- 179-2848
- Distrelec Article No.:
- 303-07-824
- Mfr. Part No.:
- DDR-240C-24
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 67.2V dc | |
| Minimum Input Voltage | 33.6V | |
| Output Current 1 | 10A | |
| Output Voltage 2 | 24V dc | |
| Mount Type | DIN Rail | |
| Number of Outputs | 1 | |
| Isolation Voltage | 4kV dc | |
| Maximum Output Power | 240W | |
| Width | 125.2mm | |
| Length | 40mm | |
| Standards/Approvals | EN61000-4-3, EN61000-4-4, EN50155, EN61000-4-6, EN61000-4-8, CE, IEC60571, EAC, EN50121-3-2, EN45545-2, IEC61373, EN61000-4-2, EN61000-4-5 | |
| Depth | 113.5mm | |
| Series | DDR-240 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Efficiency | 91% | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 67.2V dc | ||
Minimum Input Voltage 33.6V | ||
Output Current 1 10A | ||
Output Voltage 2 24V dc | ||
Mount Type DIN Rail | ||
Number of Outputs 1 | ||
Isolation Voltage 4kV dc | ||
Maximum Output Power 240W | ||
Width 125.2mm | ||
Length 40mm | ||
Standards/Approvals EN61000-4-3, EN61000-4-4, EN50155, EN61000-4-6, EN61000-4-8, CE, IEC60571, EAC, EN50121-3-2, EN45545-2, IEC61373, EN61000-4-2, EN61000-4-5 | ||
Depth 113.5mm | ||
Series DDR-240 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Efficiency 91% | ||
- COO (Country of Origin):
- CN
DDR-240 series is a Din Rail type DC-DC Converter with main features including DIN rail type easy installation.ultra slim width (40 mm) 2,1 wide input voltage ,fanless design ,-40∼+70 degree celsius wide operating temperture,4KVdc i/0 isolation 150% peak load current sharing ,DC OK adjustable output voltage and full protective function.this series of models has various input options :16.8∼33.6V/33.6∼67.2V/67.2∼154V and two output options.24V/48V and can be used for industrial & railway control,security control,communication system and other fields.
2:1 wide input range
-40∼+80 degree C wide working temperature
150% peak load capability
current sharing up to 960W(3+1)
DC output adjustable
cooling by free air conversion
can be installed on DIN rail TS-35/7.5 or 15
protection:short circuit/overload/over voltage/over temp/input reverse polarity/input under volt protection
4kVdc i/o isolation
DC OK relay Contact
remove ON-OFF control
Note
Available on EPLAN.
