    XP Power IEU03 DC-DC Converter, 5V dc/ 600mA Output, 9 → 18 V dc Input, 3W, Through Hole, +95°C Max Temp -40°C

    RS Stock No.:
    167-2890
    Mfr. Part No.:
    IEU0312S05
    Manufacturer:
    XP Power
    XP Power

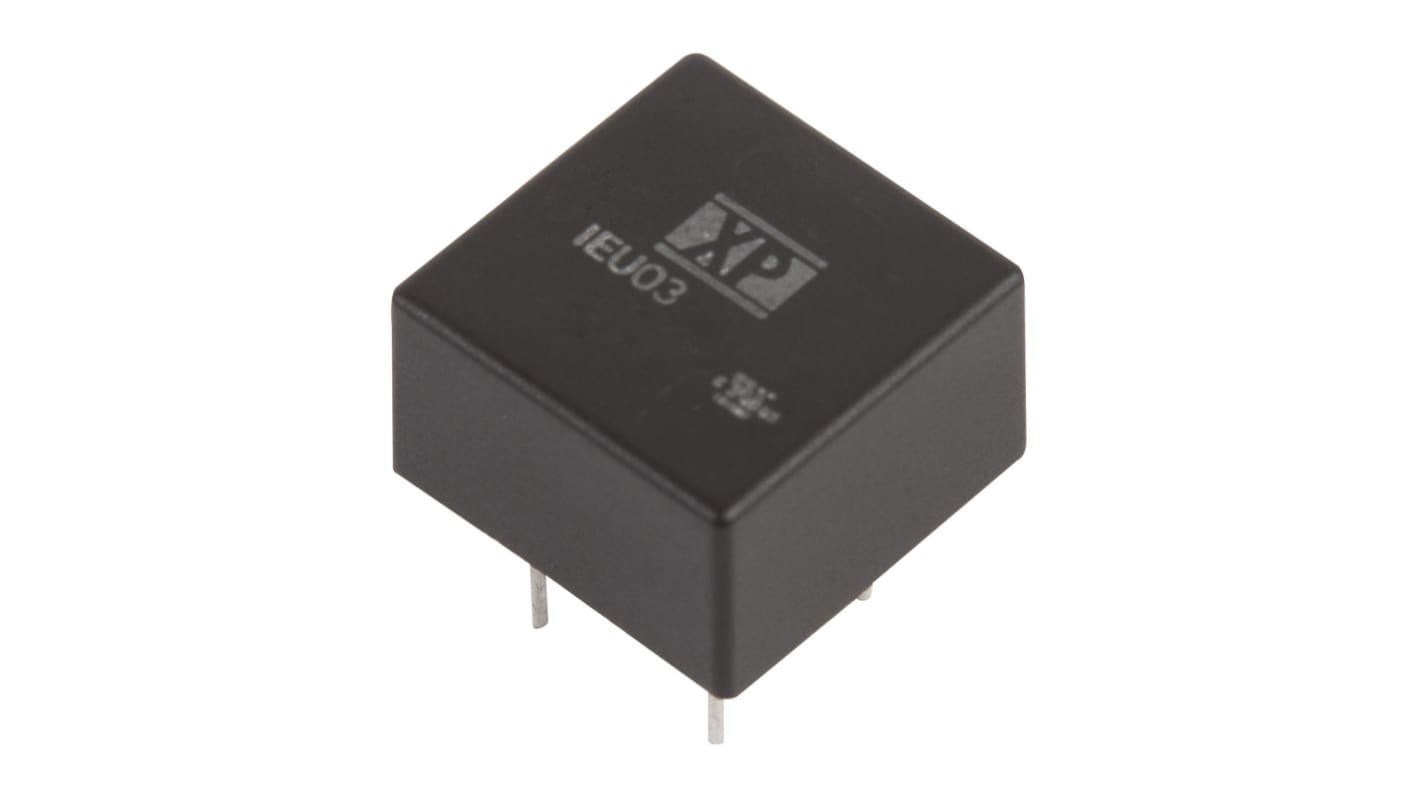

    This image is representative of the product range

    View all DC-DC Converters
    Temporarily out of stock - back order for despatch 16/01/2024, delivery within 4 working days from despatch date
    Add to Basket
    Tube(s)

    Added

    Price 1 Tube of 10

    MYR942.21

    Tube(s)Per TubePer Unit*
    1 +MYR942.21MYR94.221
    *price indicative
    RS Stock No.:
    167-2890
    Mfr. Part No.:
    IEU0312S05
    Manufacturer:
    XP Power
    COO (Country of Origin):
    TW

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    TW

    Product Details

    XP Power - IEU Series of DC-DC Converters


    The IEU series from XP Power offers a highly reliable range of single and dual outputs isolated DC-DC converters. The range features 1000 VDC in isolation and is available in an industry standard SIP or DIP package. These compact DC-DC converters all have a wide operating temperature and are also available in smaller package sizes.

    1 W, isolated DC-DC converters
    1000 VDC in isolation, 3000 VDC in isolation option available
    Single output
    -40 °C to +85 °C Operating temperature
    Industry standard SIP and DIP packaging
    Up to 80% efficiency
    Available in smaller packages

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    XP Power - Isolated DC-DC Converters

    Specifications

    AttributeValue
    Output Voltage5V dc
    Input Voltage Range9 → 18 V dc
    Power Rating3W
    Input Voltage Nominal12 V dc
    Output Current600mA
    Mounting TypeThrough Hole
    IsolatedYes
    Number of Outputs1
    PackageDIP 8
    Isolation Voltage1.5kV dc
    Length14mm
    Width14mm
    Depth8mm
    SeriesIEU03
    Load Regulation±1%
    Minimum Temperature-40°C
    Maximum Temperature+95°C
    Standards MetEN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60950-1, ITE, UL/cUL60950-1
