XP Power JCK DC-DC Converter, 5V dc/ 4A Output, 36 → 75 V dc Input, 20W, Through Hole, +100°C Max Temp -40°C Min

RS Stock No.:: 167-2487
Mfr. Part No.:: JCK2048S05
Manufacturer:: XP Power

XP Power JCK DC-DC Converter, 5V dc/ 4A Output, 36 → 75 V dc Input, 20W, Through Hole, +100°C Max Temp -40°C Min

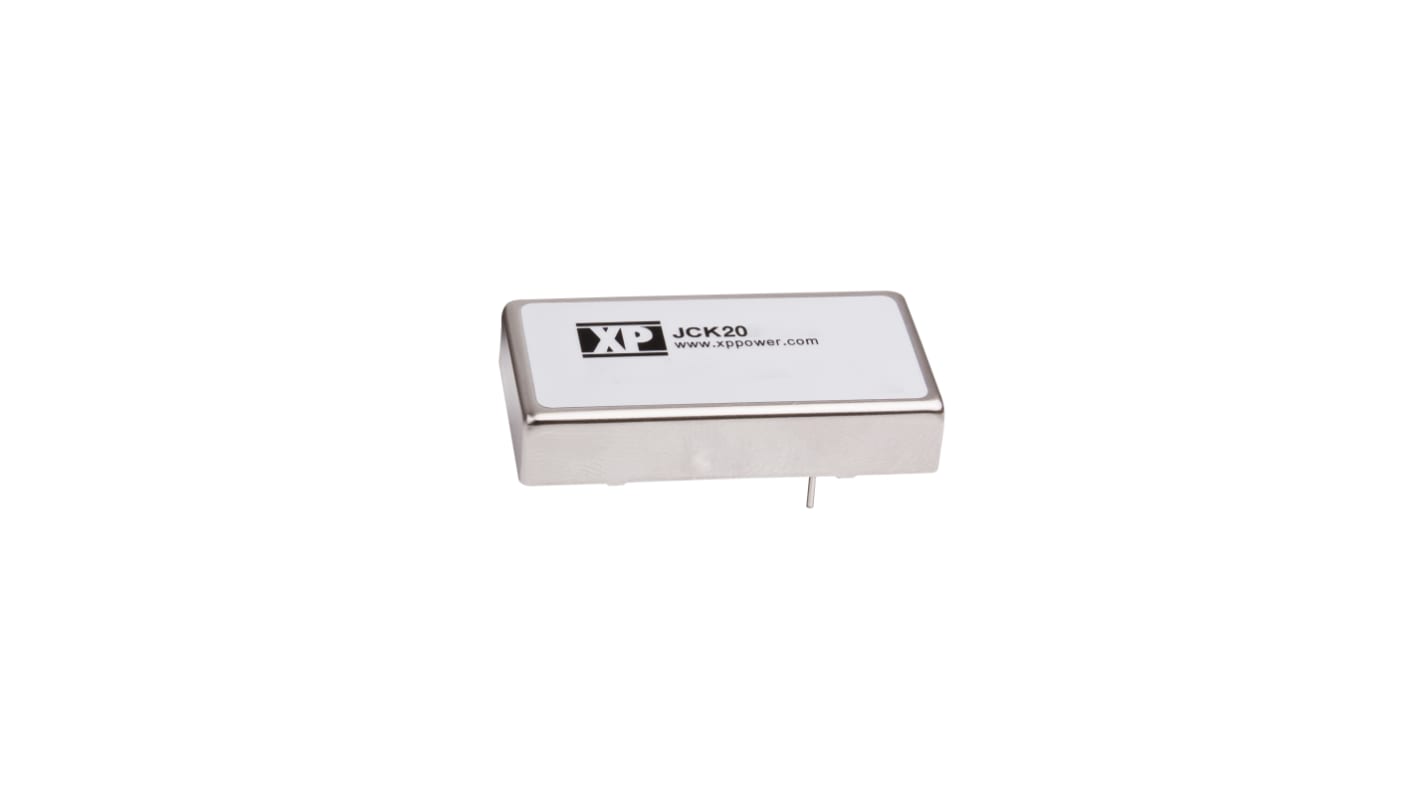

This image is representative of the product range

Subtotal (1 tube of 10 units)**

MYR2,264.00

Temporarily out of stock - back order for despatch 25/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 +	MYR2,264.00	MYR226.40

**price indicative

RS Stock No.:: 167-2487
Mfr. Part No.:: JCK2048S05
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	36 → 75 V dc
Power Rating	20W
Input Voltage Nominal	48 V dc
Output Current	4A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	2 x 1 in
Isolation Voltage	1.6kV dc
Width	25.4mm
Depth	10.2mm
Length	50.8mm
Series	JCK
Load Regulation	±0.5%
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+100°C
Minimum Temperature	-40°C

XP Power JCK DC-DC Converter, 5V dc/ 4A Output, 36 → 75 V dc Input, 20W, Through Hole, +100°C Max Temp -40°C Min

FREE delivery for orders over MYR700.00

XP Power - JCK20 Series of Isolated DC-DC Converters
