Select all	Attribute	Value
	Brand	XP Power
	Output Voltage	±5V dc
	Input Voltage Range	18 → 36 V dc
	Power Rating	15W
	Input Voltage Nominal	24 V dc
	Output Current	±1.5A
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	2
	Package	2 x 1 in
	Isolation Voltage	1.5kV dc
	Width	25.4mm
	Depth	10.16mm
	Length	50.8mm
	Series	JCK
	Load Regulation	±0.5%
	Minimum Temperature	-40°C
	Maximum Temperature	+100°C
	Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

	Select all
	Brand XP Power
	Output Voltage ±5V dc
	Input Voltage Range 18 → 36 V dc
	Power Rating 15W
	Input Voltage Nominal 24 V dc
	Output Current ±1.5A
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 2
	Package 2 x 1 in
	Isolation Voltage 1.5kV dc
	Width 25.4mm
	Depth 10.16mm
	Length 50.8mm
	Series JCK
	Load Regulation ±0.5%
	Minimum Temperature -40°C
	Maximum Temperature +100°C
	Standards Met EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

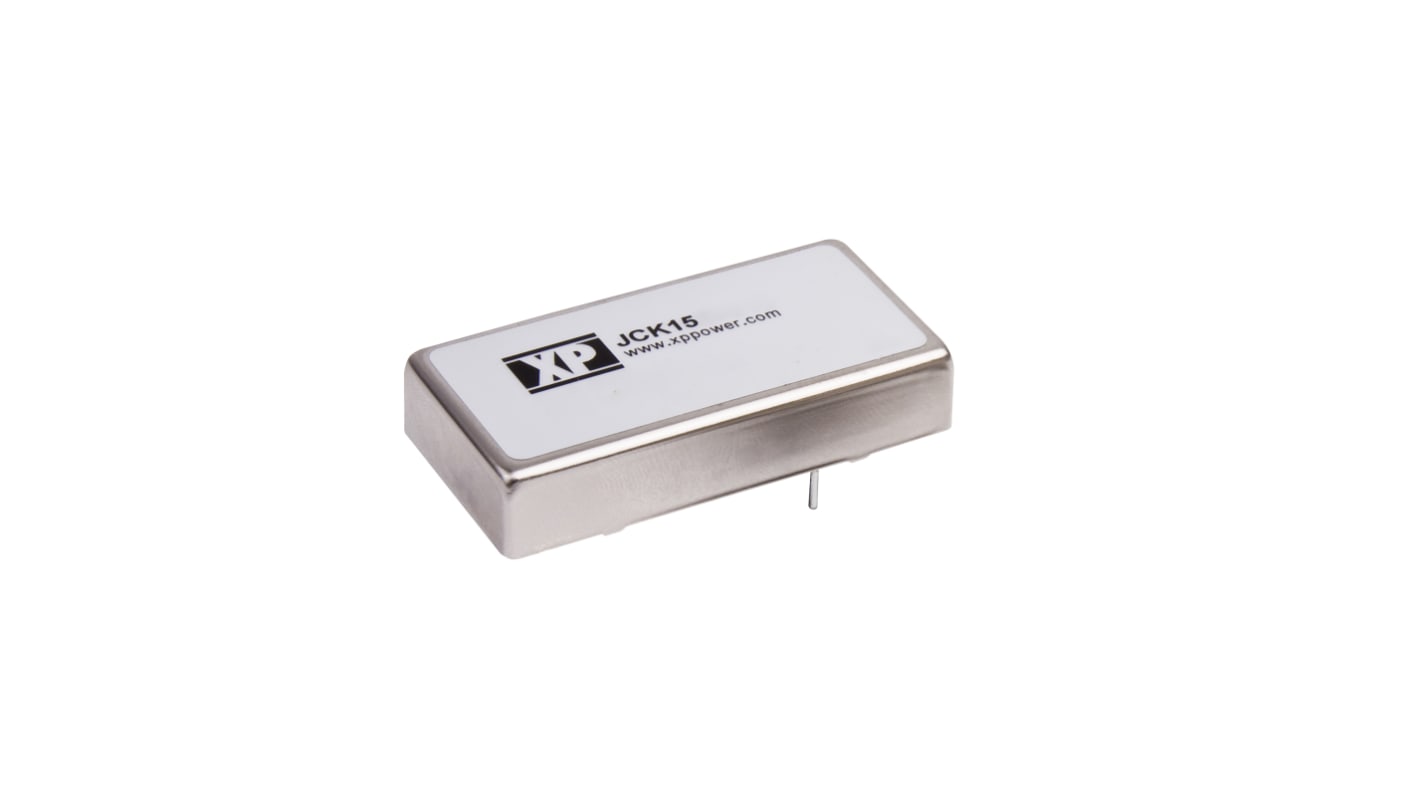

XP Power JCK DC-DC Converter, ±5V dc/ ±1.5A Output, 18 → 36 V dc Input, 15W, Through Hole, +100°C Max Temp -40°C

FREE delivery for orders over MYR500.00

XP Power - JCK15 Series of Isolated DC-DC Converters

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
