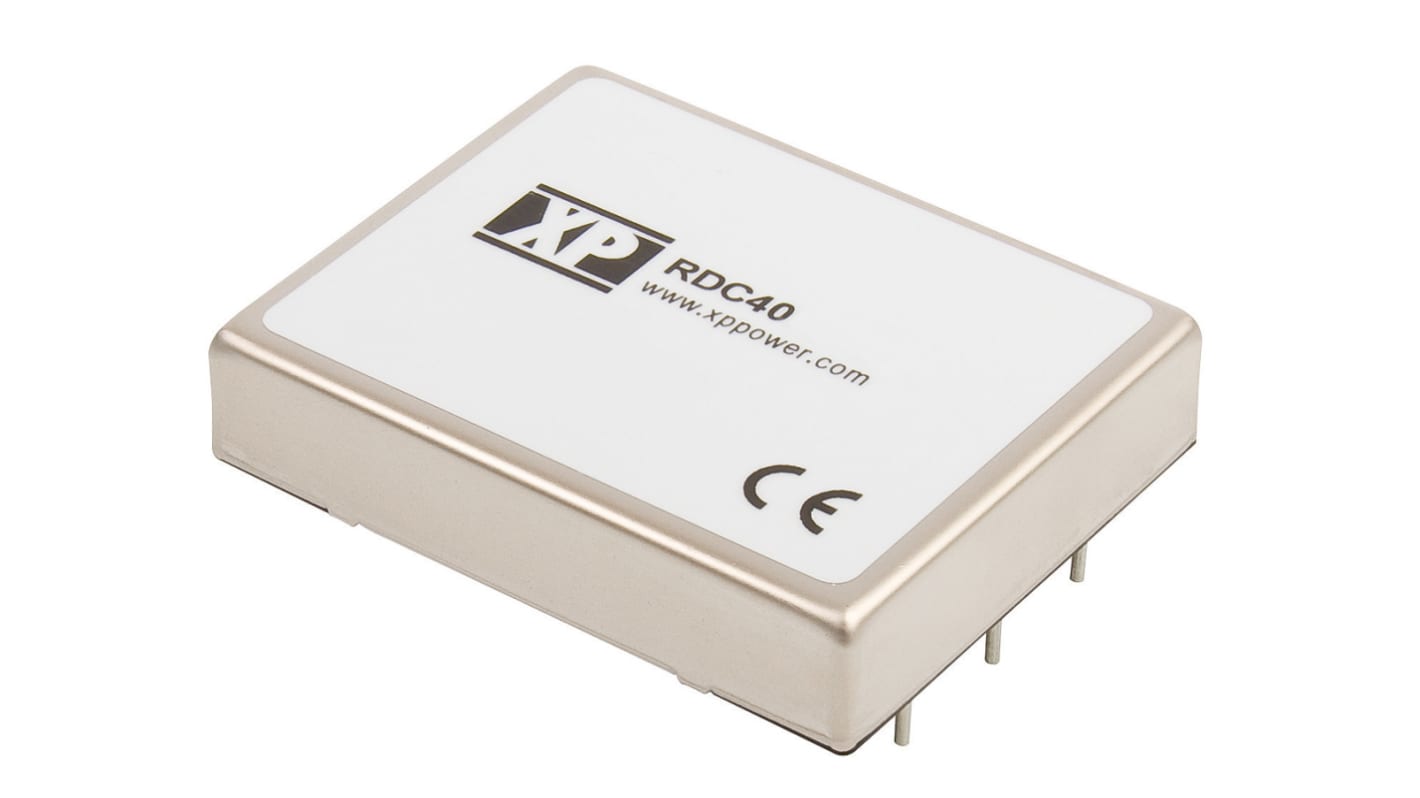

XP Power RDC40 DC-DC Converter, 5V dc/ 8A Output, 36 → 140 V dc Input, 40W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 167-2316
- Mfr. Part No.:
- RDC4072S05
- Manufacturer:
- XP Power
Subtotal (1 tube of 5 units)**
MYR2,776.24
Available for back order.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Tube(s) | Per Tube | Per Unit** |
---|---|---|
1 + | MYR2,776.24 | MYR555.248 |
**price indicative
- RS Stock No.:
- 167-2316
- Mfr. Part No.:
- RDC4072S05
- Manufacturer:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | XP Power | |
Output Voltage | 5V dc | |
Input Voltage Range | 36 → 140 V dc | |
Power Rating | 40W | |
Input Voltage Nominal | 72 V dc | |
Output Current | 8A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | -10 → +10% | |
Package | 2 x 1.6 in | |
Isolation Voltage | 1.5kV ac | |
Depth | 10.16mm | |
Length | 50.8mm | |
Width | 40.6mm | |
Railway Approved | Yes | |
Series | RDC40 | |
Load Regulation | ±0.5% | |
Standards Met | CE Certified, EN50121-3-2, EN50155, EN55011, EN60950-1:2006+A12:2011, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, LVD, MIL-HDBK-217F, TUV | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Medical Approved | No | |
Select all | ||
---|---|---|
Brand XP Power | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 140 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 72 V dc | ||
Output Current 8A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -10 → +10% | ||
Package 2 x 1.6 in | ||
Isolation Voltage 1.5kV ac | ||
Depth 10.16mm | ||
Length 50.8mm | ||
Width 40.6mm | ||
Railway Approved Yes | ||
Series RDC40 | ||
Load Regulation ±0.5% | ||
Standards Met CE Certified, EN50121-3-2, EN50155, EN55011, EN60950-1:2006+A12:2011, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, LVD, MIL-HDBK-217F, TUV | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Medical Approved No | ||
