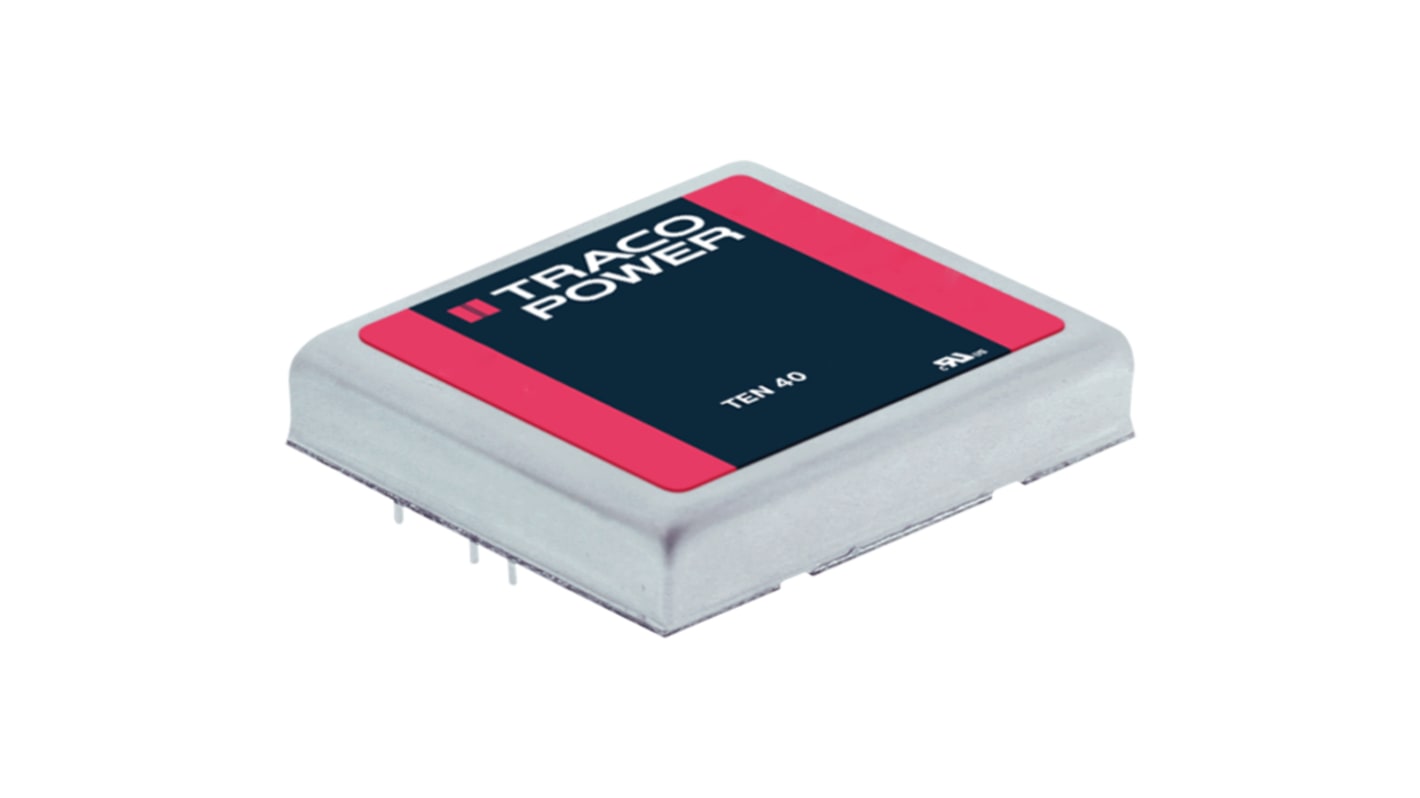

TRACOPOWER TEN 40 DC-DC Converter, 5V dc/ 6 A, 300mA Output, 18 → 36 V dc Input, 40W, Through Hole, +75°C Max
- RS Stock No.:
- 166-5542
- Mfr. Part No.:
- TEN 40-2432
- Manufacturer:
- TRACOPOWER
34 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Tube of 5
MYR2,818.14
Tube(s) | Per Tube | Per Unit* |
1 - 1 | MYR2,818.14 | MYR563.628 |
2 - 3 | MYR2,774.75 | MYR554.95 |
4 + | MYR2,714.72 | MYR542.944 |
*price indicative |
- RS Stock No.:
- 166-5542
- Mfr. Part No.:
- TEN 40-2432
- Manufacturer:
- TRACOPOWER
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 40W Single/Triple Output Regulated Isolated DC-DC Converter - TEN 40 Series
40W single/triple output regulated isolated DC-DC converters with a high power density. These single/triple output regulated isolated DC-DC converters have a high efficiency which allow an operating temperature range from -40°C to + 70°C. This series of single/triple output regulated isolated DC-DC converters are suitable for use in communication systems, industrial electronics and distributed power systems.
Very high power density: 40W in a 51x51x10mm package
Wide 2:1 input range
Models with single, and triple output
Very high efficiency up to 89%
Remote on/off
Short circuit protection
Shielded metal case
Wide 2:1 input range
Models with single, and triple output
Very high efficiency up to 89%
Remote on/off
Short circuit protection
Shielded metal case
Note
Single o/p derates above 45°C, Triple o/p derates above 40°C.
Traco Power Through-Hole DC-to-DC Converter, 18 to 36V DC Input, 40W Power Rating - TEN 40 Series - TEN 40-2432
Need to efficiently regulate the level of DC voltage supply for your network servers? Choose this DC-to-DC converter from Traco Power. It features built-in protection against short circuits, overvoltage and overtemperature to protect attached equipment against damage caused by electrical faults and excessive heat. As it has three outputs, it's a good choice for use with devices that need a single high-current supply and an auxiliary supply to power peripherals. The converter is designed for through-hole mounting, so you can be sure of a secure hold on your PCB. Thanks to its broad operating temperature range of -40°C to +75°C, it's suitable for use in harsh industrial environments.
Features & Benefits
• Fast typical startup time of 25ms for quick voltage conversion
• Compact dimensions of 50.8 (length) x 50.8 (width) x 10.2mm (depth) to maximise PCB packing efficiency
• Mean time between failures of more than 920,000 hours for long-lasting performance
• Nickel-plated copper casing for high conductivity and resistance to corrosion
• Compact dimensions of 50.8 (length) x 50.8 (width) x 10.2mm (depth) to maximise PCB packing efficiency
• Mean time between failures of more than 920,000 hours for long-lasting performance
• Nickel-plated copper casing for high conductivity and resistance to corrosion
Applications
• Distributed power systems
• Industrial electronics
• Communications networks
• Industrial electronics
• Communications networks
How efficient is this converter?
This converter has a high typical efficiency of 87%, meaning power loss is minimal.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Approvals
7777
Specifications
Attribute | Value |
---|---|
Output Voltage | 5 V dc, ±15V dc |
Input Voltage Range | 18 → 36 V dc |
Power Rating | 40W |
Input Voltage Nominal | 24 V dc |
Output Current | 6 A, 300mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 3 |
Package | 2 x 2 in |
Isolation Voltage | 1.5kV dc |
Depth | 10.2mm |
Length | 50.8mm |
Series | TEN 40 |
Load Regulation | ±5% |
Efficiency | 87% |
Minimum Temperature | -40°C |
Maximum Temperature | +75°C |
