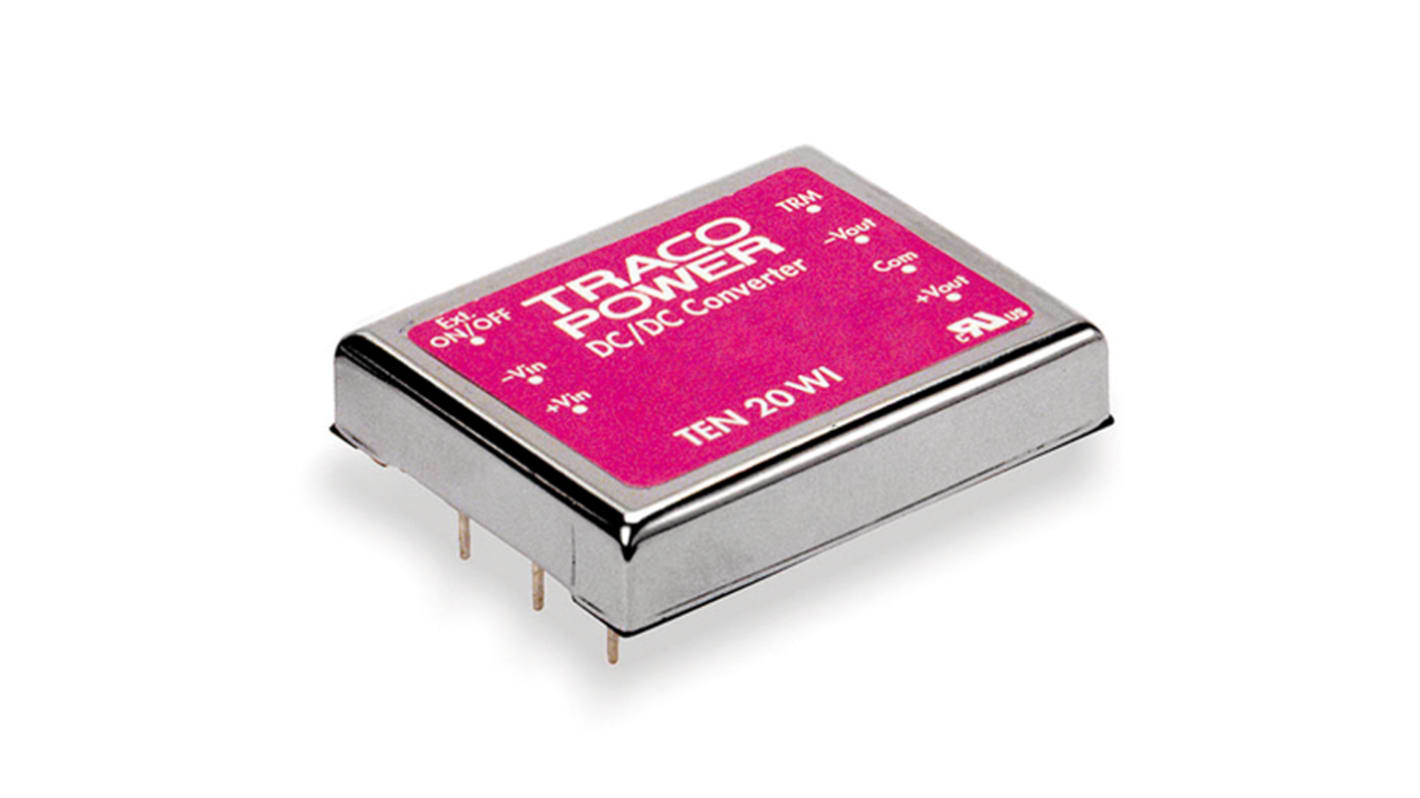

TRACOPOWER TEN 20WI DC-DC Converter, 12V dc/ 1.67A Output, 9 → 36 V dc Input, 20W, PCB Mount, '+75°C Max Temp

RS Stock No.:: 161-6392
Mfr. Part No.:: TEN 20-2412WI
Manufacturer:: TRACOPOWER

TRACOPOWER TEN 20WI DC-DC Converter, 12V dc/ 1.67A Output, 9 → 36 V dc Input, 20W, PCB Mount, '+75°C Max Temp

Bulk discount available

Price 1 Tube of 5**

MYR1,897.54

4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 - 1	MYR1,897.54	MYR379.508
2 - 3	MYR1,855.80	MYR371.16
4 +	MYR1,815.94	MYR363.188

**price indicative

RS Stock No.:: 161-6392
Mfr. Part No.:: TEN 20-2412WI
Manufacturer:: TRACOPOWER

Traco 20W Single/Dual Output Regulated Isolated DC-DC Converter - TEN 20WI Series

20W single/dual output regulated isolated high performance DC-DC converter modules with a high input voltage range and low profile package. These regulated isolated high performance DC-DC converter modules have a high efficiency which allows an operating temperature range of -40°C to 85°C. Typical applications for these DC-DC converter modules include battery operated equipment and distributed power architectures in communication and industrial electronics.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Ultra-wide 4:1 input voltage range
Adjustable output voltage (±10%)
Remote on/off
Input filter to meet EN 55022 Class A and FCC Level A without external components
Continuous short circuit protection
Shielded metal case with insulated base plate
Industry standard pinout

Note

Derating above 42°C.

Approvals

UL recognised

Standards

UL 1950, EN 60950, IEC 60950 compliance up to 60 VDC input voltage

TRACOPOWER TEN 20WI Series DC-DC Converter, 0.81 Efficiency, 1.5kV DC Isolation Voltage - TEN 20-2412WI

This DC-DC converter ensures stable voltage output for a range of applications. Operating efficiently within an input voltage range of 9 to 36V DC, it is well-suited for various industrial and communication electronics. Its compact design allows easy integration into standard configurations while maintaining strong performance and precise voltage regulation where it is essential.

Features & Benefits

• Ultra-wide input range provides versatility across applications
• Enhanced temperature tolerance of -40°C to +85°C ensures reliability
• 1500V DC isolation increases safety and reduces electrical interference
• Remote On/Off functionality facilitates control in automated systems
• High efficiency of 81% minimises energy losses during operation
• Short-circuit and overload protection enhances operational durability

Applications

• Suitable for battery-operated equipment to improve power management
• Ideal for distributed power architectures in industrial settings
• Applicable in communication devices that require precise voltage regulation
• Effective in systems needing an isolated power source for safety
• Utilised in automation solutions where remote operation enhances functionality

What kind of input voltage can be utilised?

The converter accepts an input voltage range of 9 to 36V DC, allowing for flexibility in various setups.

How do I ensure it operates efficiently under varying loads?

This converter features excellent load regulation, which maintains output stability across load changes from 25% to 100%.

Is it possible to adjust the output voltage?

Yes, the output voltage can be adjusted to meet specific application requirements within a safe range.

What safety features are incorporated?

It includes protection against short-circuits and overloads, ensuring reliability without damage.

How is the remote On/Off functionality implemented?

Remote control can be activated using 3.5 to 12V DC for powering on and 0 to 1.2V DC for powering off.

Approvals

UL Recognised; EN 60550; UL 1950

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	9 → 36 V dc
Power Rating	20W
Input Voltage Nominal	24 V dc
Output Current	1.67A
Mounting Type	PCB Mount
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	10.8 → 13.2V dc
Package	1.6 x 2 in
Isolation Voltage	1.5kV dc
Depth	10.2mm
Width	40.6mm
Length	50.8mm
Series	TEN 20WI
Load Regulation	±0.5%
Efficiency	81%
Maximum Temperature	'+75°C
Standards Met	EN 60950-1
Minimum Temperature	-40°C
