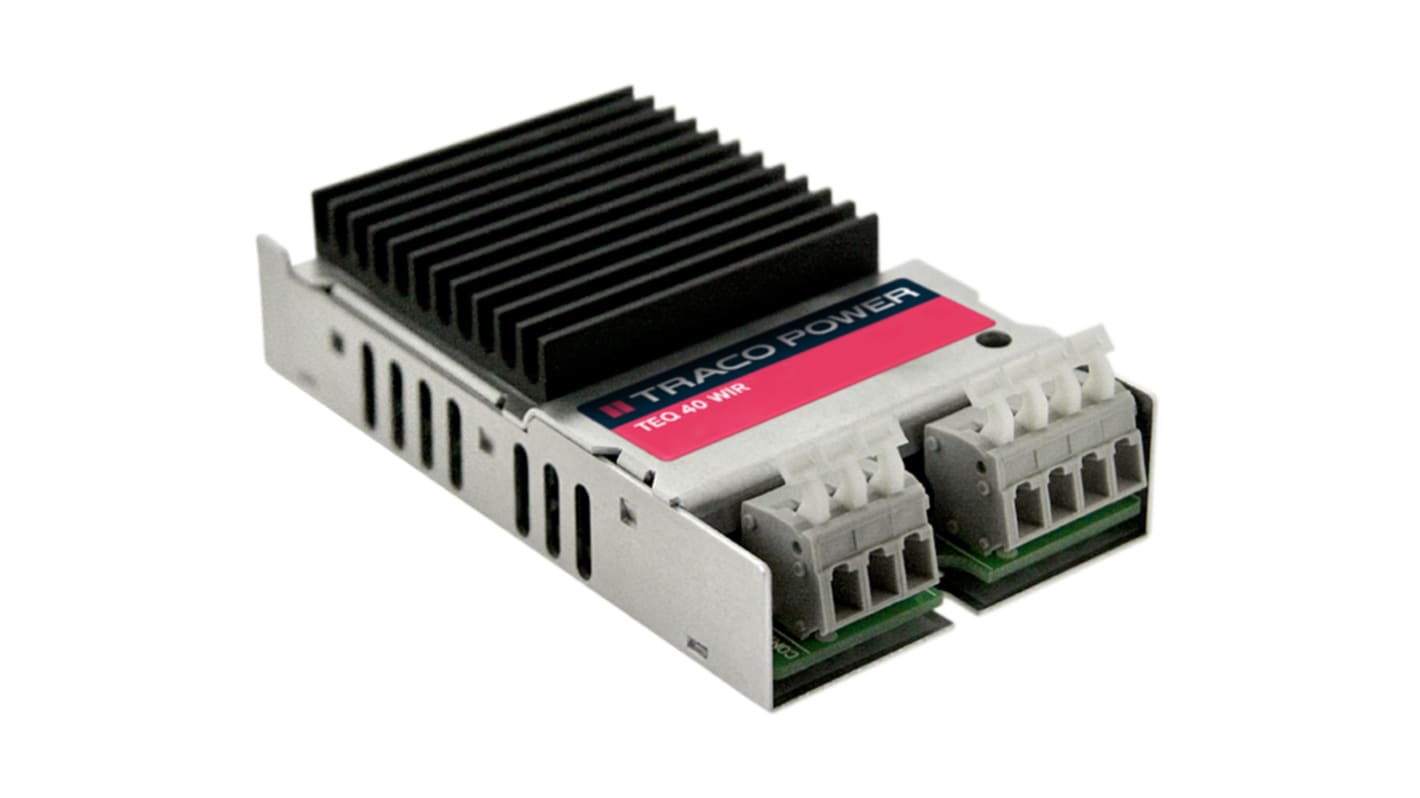

TRACOPOWER TEQ 40WIR DC-DC Converter, 5V dc/ 8A Output, 43 → 160 V dc Input, 40W, Chassis Mount, +83°C Max Temp
- RS Stock No.:
- 135-3714
- Mfr. Part No.:
- TEQ 40-7211WIR
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)**
MYR940.37
Temporarily out of stock - back order for despatch 11/11/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 1 - 4 | MYR940.37 |
| 5 - 9 | MYR912.16 |
| 10 - 24 | MYR883.94 |
| 25 - 49 | MYR865.13 |
| 50 + | MYR846.31 |
**price indicative
- RS Stock No.:
- 135-3714
- Mfr. Part No.:
- TEQ 40-7211WIR
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 43 → 160 V dc | |
| Power Rating | 40W | |
| Input Voltage Nominal | 110 V dc | |
| Output Current | 8A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 3kV dc | |
| Width | 57.2mm | |
| Depth | 26.1mm | |
| Length | 103mm | |
| Series | TEQ 40WIR | |
| Railway Approved | Yes | |
| Load Regulation | 0.015 | |
| Standards Met | EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1 | |
| Maximum Temperature | +83 °C, +92°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 43 → 160 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 110 V dc | ||
Output Current 8A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 3kV dc | ||
Width 57.2mm | ||
Depth 26.1mm | ||
Length 103mm | ||
Series TEQ 40WIR | ||
Railway Approved Yes | ||
Load Regulation 0.015 | ||
Standards Met EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1 | ||
Maximum Temperature +83 °C, +92°C | ||
Minimum Temperature -40°C | ||
