Units	Per Unit
1 - 4	MYR529.11
5 - 9	MYR517.99
10 - 24	MYR502.45
25 - 49	MYR490.08
50 +	MYR479.34

Select all	Attribute	Value
	Brand	Cosel
	Output Voltage	12V dc
	Input Voltage Range	60 → 160 V dc
	Power Rating	50.4W
	Input Voltage Nominal	110 V dc
	Output Current	4.2A
	Mounting Type	PCB Mount
	Isolated	Yes
	Number of Outputs	1
	Output Voltage Adjustment Range	10.8 → 13.2V
	Isolation Voltage	3 kV ac, 500V dc
	Width	37.3mm
	Length	58.4mm
	Depth	12.7mm
	Series	DHS
	Load Regulation	24mV
	Efficiency	86%
	Maximum Temperature	+100°C
	Standards Met	CE, cUL (CSA 60950-1), cULus Recognised, EN 60950-1, UL 60950-1
	Minimum Temperature	-40°C

	Select all
	Brand Cosel
	Output Voltage 12V dc
	Input Voltage Range 60 → 160 V dc
	Power Rating 50.4W
	Input Voltage Nominal 110 V dc
	Output Current 4.2A
	Mounting Type PCB Mount
	Isolated Yes
	Number of Outputs 1
	Output Voltage Adjustment Range 10.8 → 13.2V
	Isolation Voltage 3 kV ac, 500V dc
	Width 37.3mm
	Length 58.4mm
	Depth 12.7mm
	Series DHS
	Load Regulation 24mV
	Efficiency 86%
	Maximum Temperature +100°C
	Standards Met CE, cUL (CSA 60950-1), cULus Recognised, EN 60950-1, UL 60950-1
	Minimum Temperature -40°C

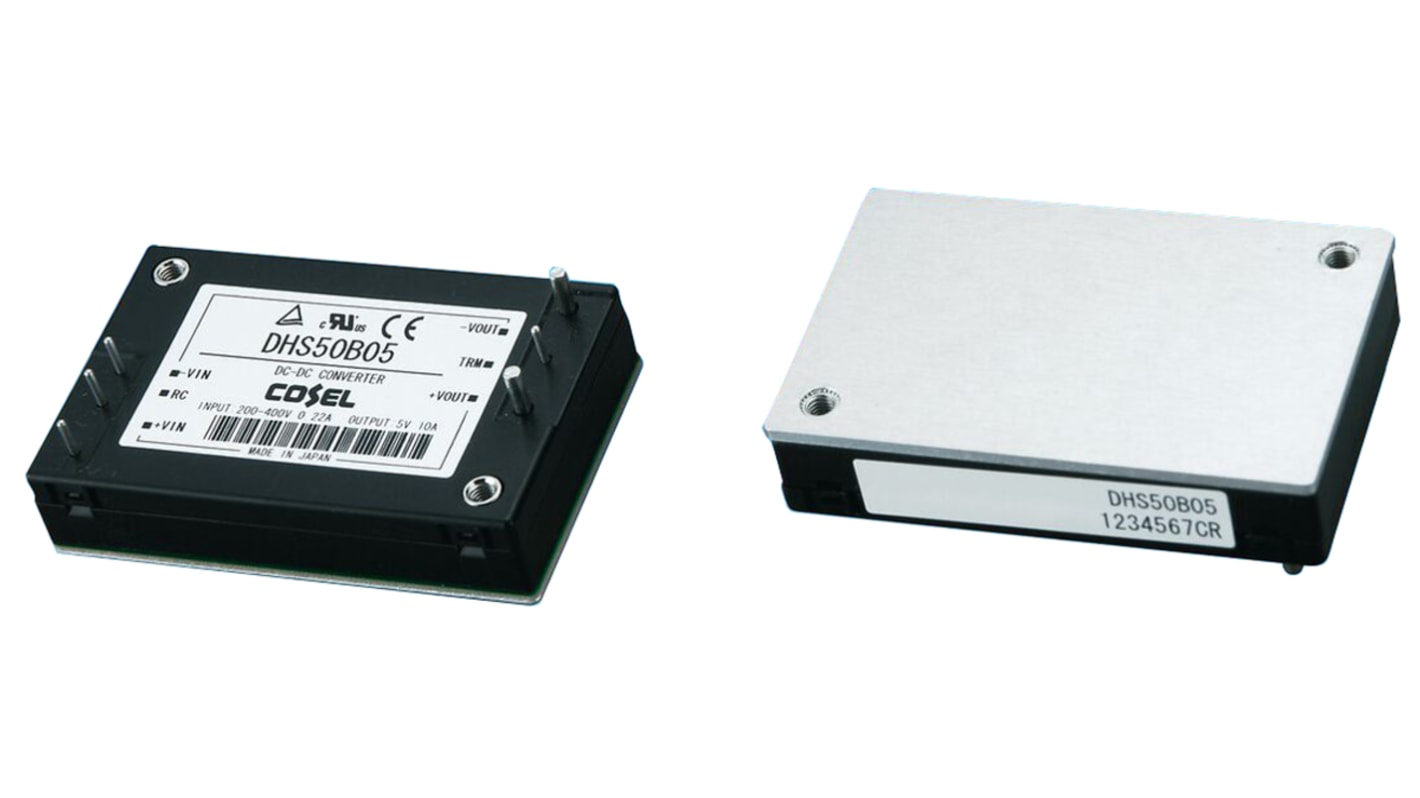

Cosel DHS DC-DC Converter, 12V dc/ 4.2A Output, 60 → 160 V dc Input, 50.4W, PCB Mount, +100°C Max Temp -40°C Min

FREE delivery for orders over MYR500.00

DHS Series

Features and Benefits

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
