Units	Per Unit
1 - 4	MYR203.84
5 - 9	MYR199.57
10 - 24	MYR193.58
25 - 49	MYR188.82
50 +	MYR184.69

Select all	Attribute	Value
	Brand	Cosel
	Output Voltage	±5V dc
	Input Voltage Range	9 → 36 V dc
	Power Rating	15W
	Input Voltage Nominal	24 V dc
	Output Current	1.5A
	Mounting Type	PCB Mount
	Isolated	Yes
	Number of Outputs	2
	Output Voltage Adjustment Range	4.935 → 5.240V
	Isolation Voltage	500V dc
	Width	25.4mm
	Length	25.4mm
	Depth	9.9mm
	Series	MGFW
	Load Regulation	250mV
	Standards Met	CE, cUL, cULus Recognised, EN 60950-1, TUV, UL 60950-1
	Efficiency	84%
	Minimum Temperature	-40°C
	Maximum Temperature	+85°C

	Select all
	Brand Cosel
	Output Voltage ±5V dc
	Input Voltage Range 9 → 36 V dc
	Power Rating 15W
	Input Voltage Nominal 24 V dc
	Output Current 1.5A
	Mounting Type PCB Mount
	Isolated Yes
	Number of Outputs 2
	Output Voltage Adjustment Range 4.935 → 5.240V
	Isolation Voltage 500V dc
	Width 25.4mm
	Length 25.4mm
	Depth 9.9mm
	Series MGFW
	Load Regulation 250mV
	Standards Met CE, cUL, cULus Recognised, EN 60950-1, TUV, UL 60950-1
	Efficiency 84%
	Minimum Temperature -40°C
	Maximum Temperature +85°C

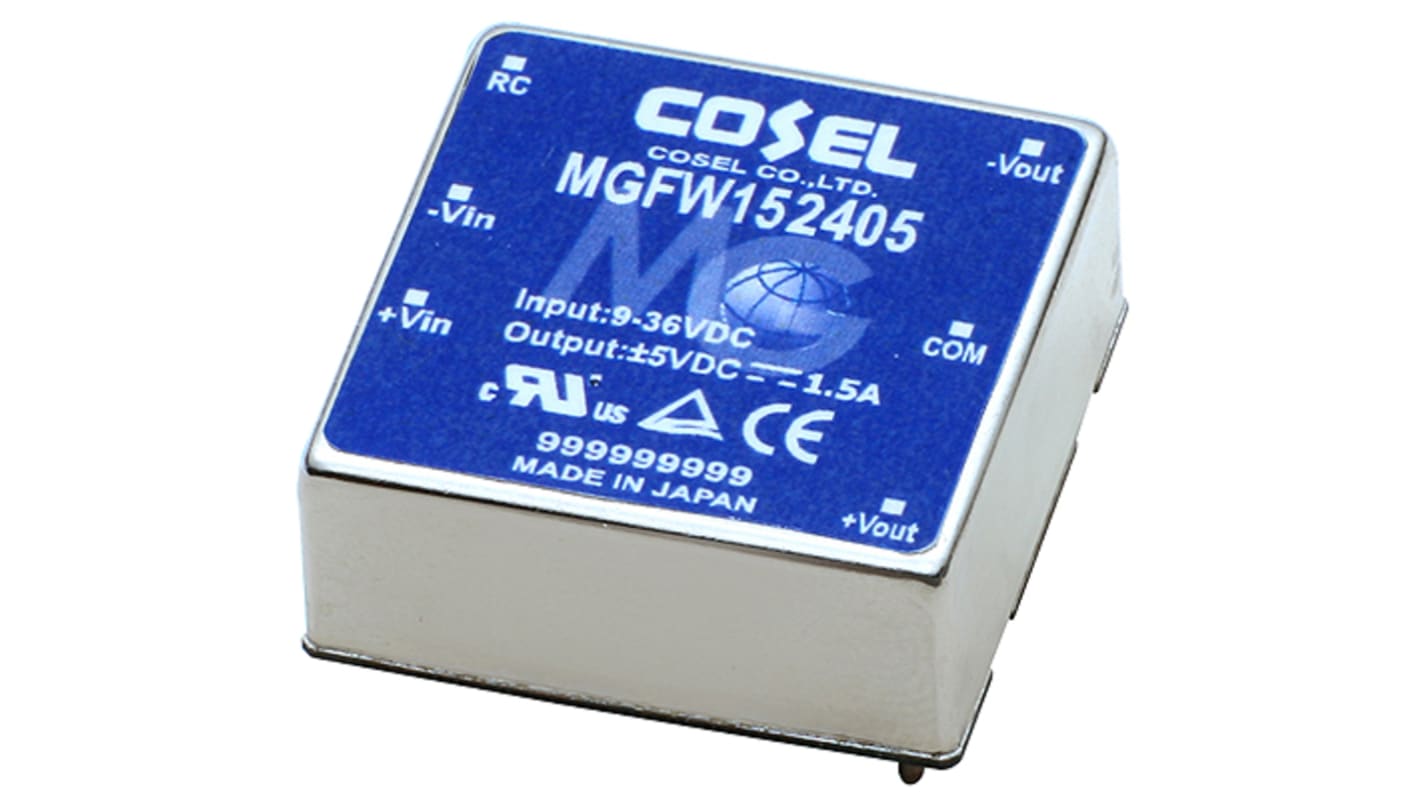

Cosel MGFW DC-DC Converter, ±5V dc/ 1.5A Output, 9 → 36 V dc Input, 15W, PCB Mount, +85°C Max Temp -40°C Min Temp

FREE delivery for orders over MYR500.00

MGFW Series, On/Off Remote Function

Features and Benefits
