    XP Power JSM25 DC-DC Converter, 5V dc/ 5A Output, 9 → 18 V dc Input, 25W, Through Hole, +105°C Max Temp -40°C

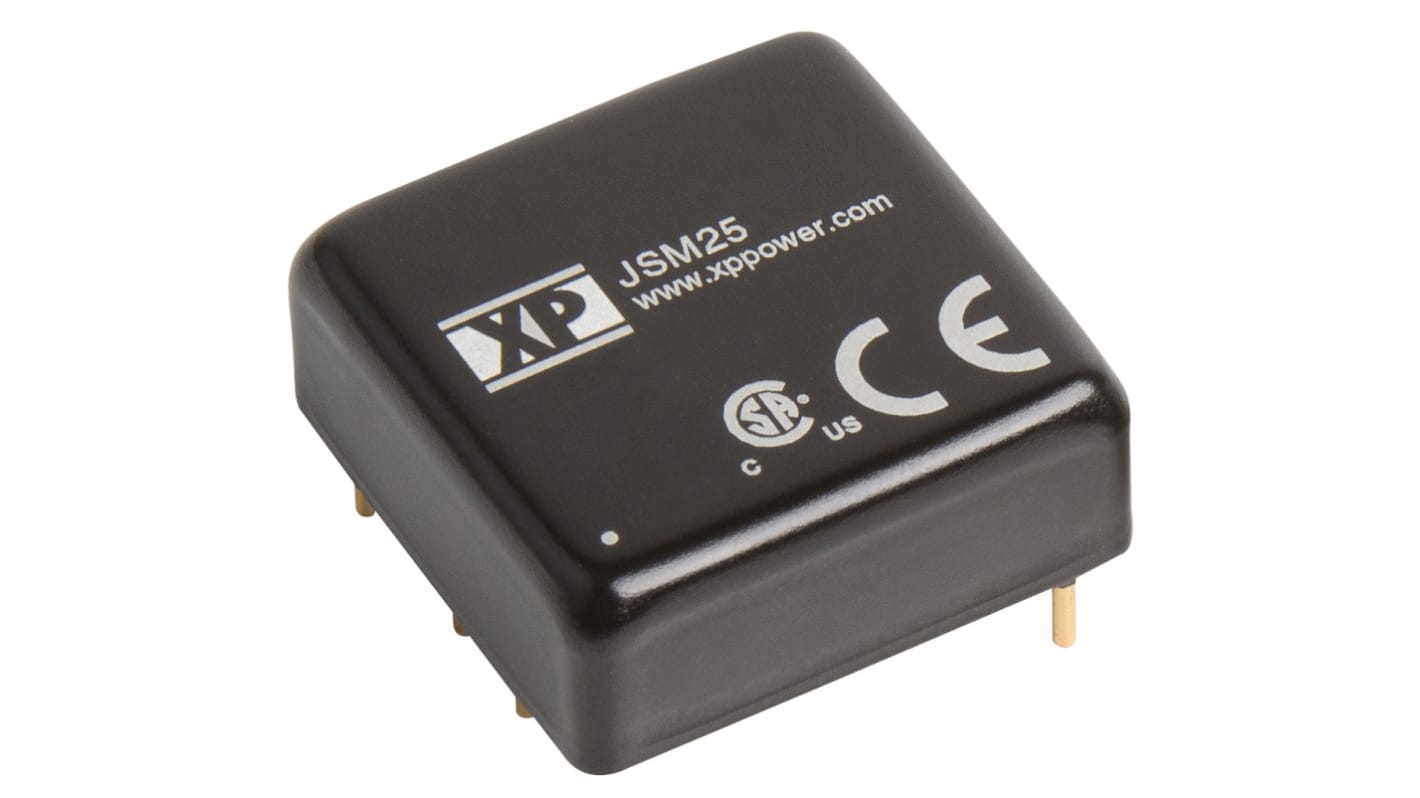

    This image is representative of the product range

    Subtotal (1 unit)**

    MYR292.33

    Add to Basket
    Select or type quantity
    Temporarily out of stock - back order for despatch 15/12/2025, delivery within 4 working days from despatch date*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per Unit
    1 +MYR292.33

    **price indicative

    RS Stock No.:
    123-1206
    Mfr. Part No.:
    JSM2512S05
    Manufacturer:
    XP Power
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    XP Power

    Output Voltage

    5V dc

    Input Voltage Range

    9 → 18 V dc

    Power Rating

    25W

    Input Voltage Nominal

    12 V dc

    Output Current

    5A

    Mounting Type

    Through Hole

    Isolated

    Yes

    Number of Outputs

    1

    Package

    1 x 1 in

    Isolation Voltage

    1.5kV dc

    Depth

    10.16mm

    Length

    25.4mm

    Width

    25.4mm

    Series

    JSM25

    Load Regulation

    ±0.2%

    Maximum Temperature

    +105°C

    Minimum Temperature

    -40°C

    Standards Met

    EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1
