XP Power JCK DC-DC Converter, 5V dc/ 8A Output, 9 → 18 V dc Input, 40W, Through Hole, +70°C Max Temp -40°C Min

RS Stock No.:: 122-7444
Mfr. Part No.:: JCK4012S05
Manufacturer:: XP Power

XP Power JCK DC-DC Converter, 5V dc/ 8A Output, 9 → 18 V dc Input, 40W, Through Hole, +70°C Max Temp -40°C Min

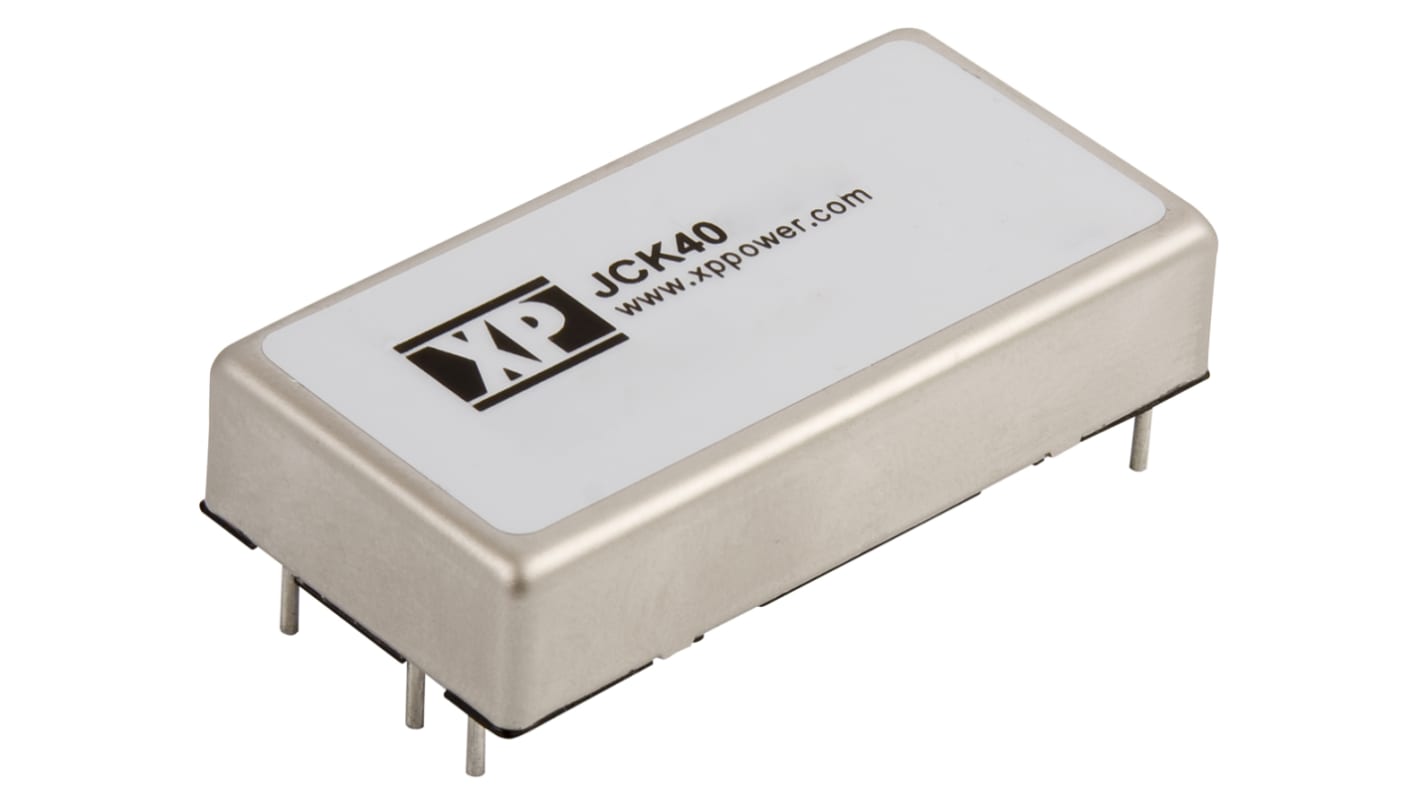

This image is representative of the product range

Bulk discount available

Price Each**

MYR327.23

Temporarily out of stock - back order for despatch 24/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 2	MYR327.23
3 - 4	MYR320.36
5 +	MYR310.75

**price indicative

RS Stock No.:: 122-7444
Mfr. Part No.:: JCK4012S05
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	9 → 18 V dc
Power Rating	40W
Input Voltage Nominal	12 V dc
Output Current	8A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	2 x 1 in
Isolation Voltage	1.6kV dc
Width	25.4mm
Depth	10.16mm
Length	50.8mm
Series	JCK
Load Regulation	±0.5%
Maximum Temperature	+70°C
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

XP Power JCK DC-DC Converter, 5V dc/ 8A Output, 9 → 18 V dc Input, 40W, Through Hole, +70°C Max Temp -40°C Min

FREE delivery for orders over MYR700.00

XP Power - JCK40 Series of Isolated DC-DC Converters
