XP Power IH DC-DC Converter, ±15V dc/ ±66mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 122-6939P
- Mfr. Part No.:
- IH2415S
- Manufacturer:
- XP Power

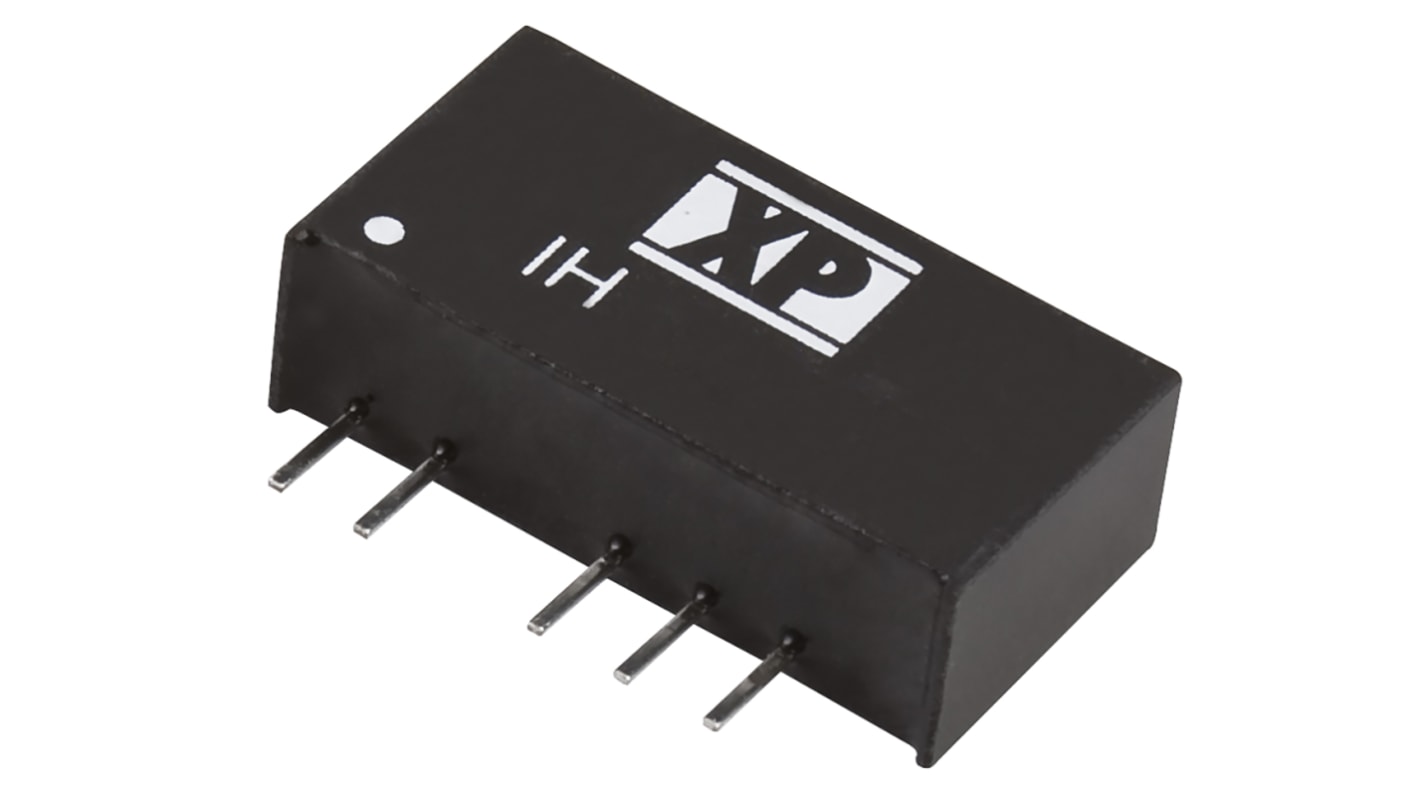

This image is representative of the product range
View all DC-DC Converters
1022 In Global stock for delivery within 4 - 6 working days
Price Each (Supplied in a Tube)
MYR33.74
| units | Per Unit |
| 5 - 9 | MYR33.74 |
| 10 + | MYR32.88 |
Packaging Options:
- RS Stock No.:
- 122-6939P
- Mfr. Part No.:
- IH2415S
- Manufacturer:
- XP Power
- COO (Country of Origin):
- TW
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - IH Series of Isolated DC-DC Converters
The IH series from XP Power offers a highly reliable range of dual output, 2 W, isolated DC-DC converters. The series attributes 1000 VDC in isolation and is available in an industry standard SIP or DIP package. These compact DC-DC converters also feature a wide -40 °C to +85 °C operating temperature range and an efficiency of up to 82%.
2 W, isolated DC-DC converters
1000 VDC in isolation
Dual output
-40 °C to +85 °C Operating temperature
Industry standard SIP and DIP packaging
Up to 82% efficiency
1000 VDC in isolation
Dual output
-40 °C to +85 °C Operating temperature
Industry standard SIP and DIP packaging
Up to 82% efficiency
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
XP Power - Isolated DC-DC Converters
Specifications
| Attribute | Value |
| Output Voltage | ±15V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Power Rating | 2W |
| Input Voltage Nominal | 24 V dc |
| Output Current | ±66mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP |
| Isolation Voltage | 1kV dc |
| Width | 7.2mm |
| Depth | 10.16mm |
| Length | 19.5mm |
| Series | IH |
| Load Regulation | ±10% |
| Efficiency | 82% |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
