Units	Per Unit	Per Reel**
800 - 800	MYR6.09	MYR4,872.00
1600 - 2400	MYR5.956	MYR4,764.80
3200 +	MYR5.846	MYR4,676.80

Select all	Attribute	Value
	Brand	DiodesZetex
	Minimum Output Voltage	1.23 V
	Maximum Output Voltage	37 V
	Minimum Input Voltage	4.5 V
	Maximum Input Voltage	40 V
	Maximum Output Current	3A
	Converter Type	Step Down
	Number of Outputs	1
	Output Type	Adjustable
	Mounting Type	Surface Mount
	Maximum Switching Frequency	173 kHz
	Package Type	TO-263
	Pin Count	5
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-20 °C
	Switching Regulator	Yes
	Width	9.65mm
	Dimensions	10.54 x 9.65 x 4.85mm
	Length	10.54mm
	Height	4.85mm

	Select all
	Brand DiodesZetex
	Minimum Output Voltage 1.23 V
	Maximum Output Voltage 37 V
	Minimum Input Voltage 4.5 V
	Maximum Input Voltage 40 V
	Maximum Output Current 3A
	Converter Type Step Down
	Number of Outputs 1
	Output Type Adjustable
	Mounting Type Surface Mount
	Maximum Switching Frequency 173 kHz
	Package Type TO-263
	Pin Count 5
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -20 °C
	Switching Regulator Yes
	Width 9.65mm
	Dimensions 10.54 x 9.65 x 4.85mm
	Length 10.54mm
	Height 4.85mm

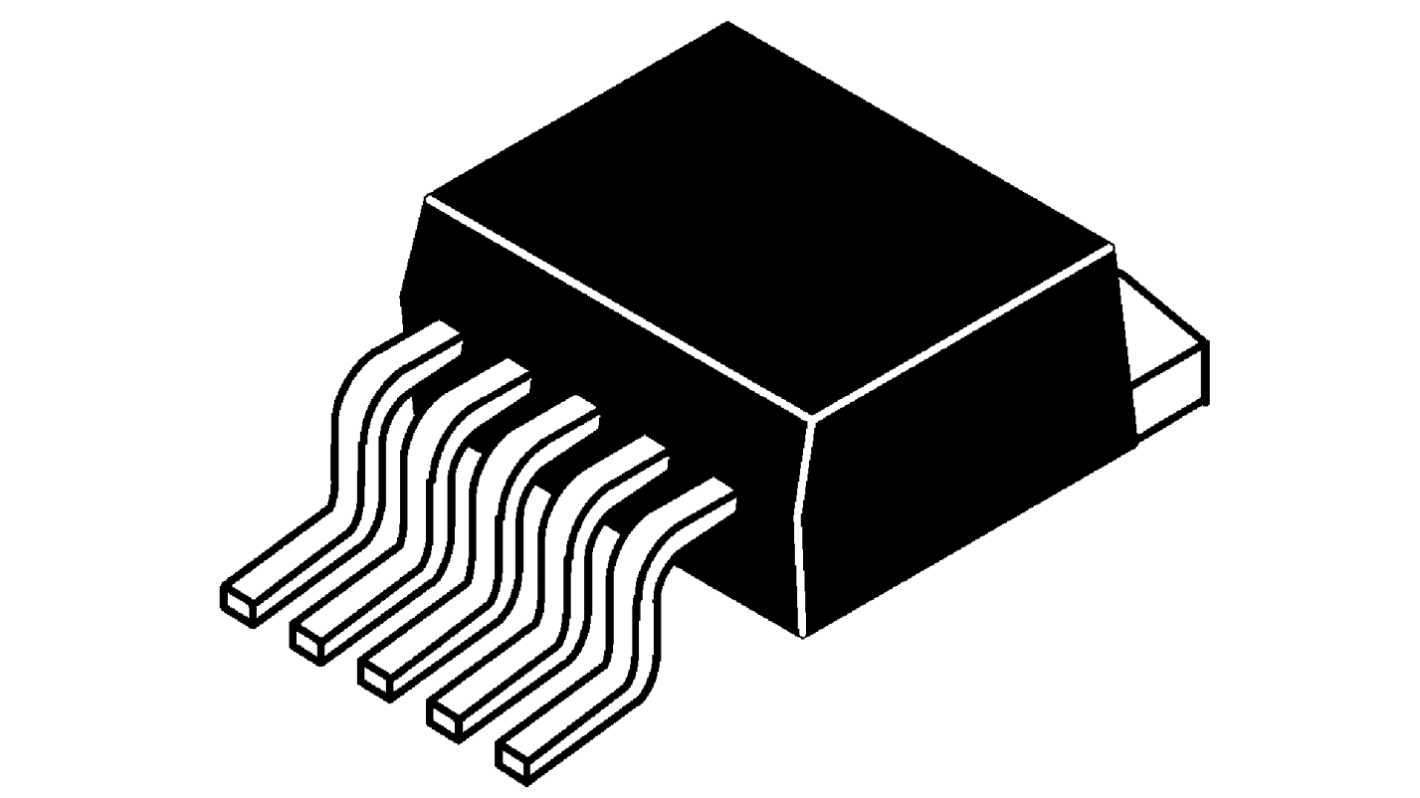

DiodesZetex AP1501-K5G-13, 1-Channel, Step Down DC-DC Converter, Adjustable 5-Pin, TO-263

FREE delivery for orders over MYR500.00

Step-Down Switching Regulators, Diodes Inc
