Product Details

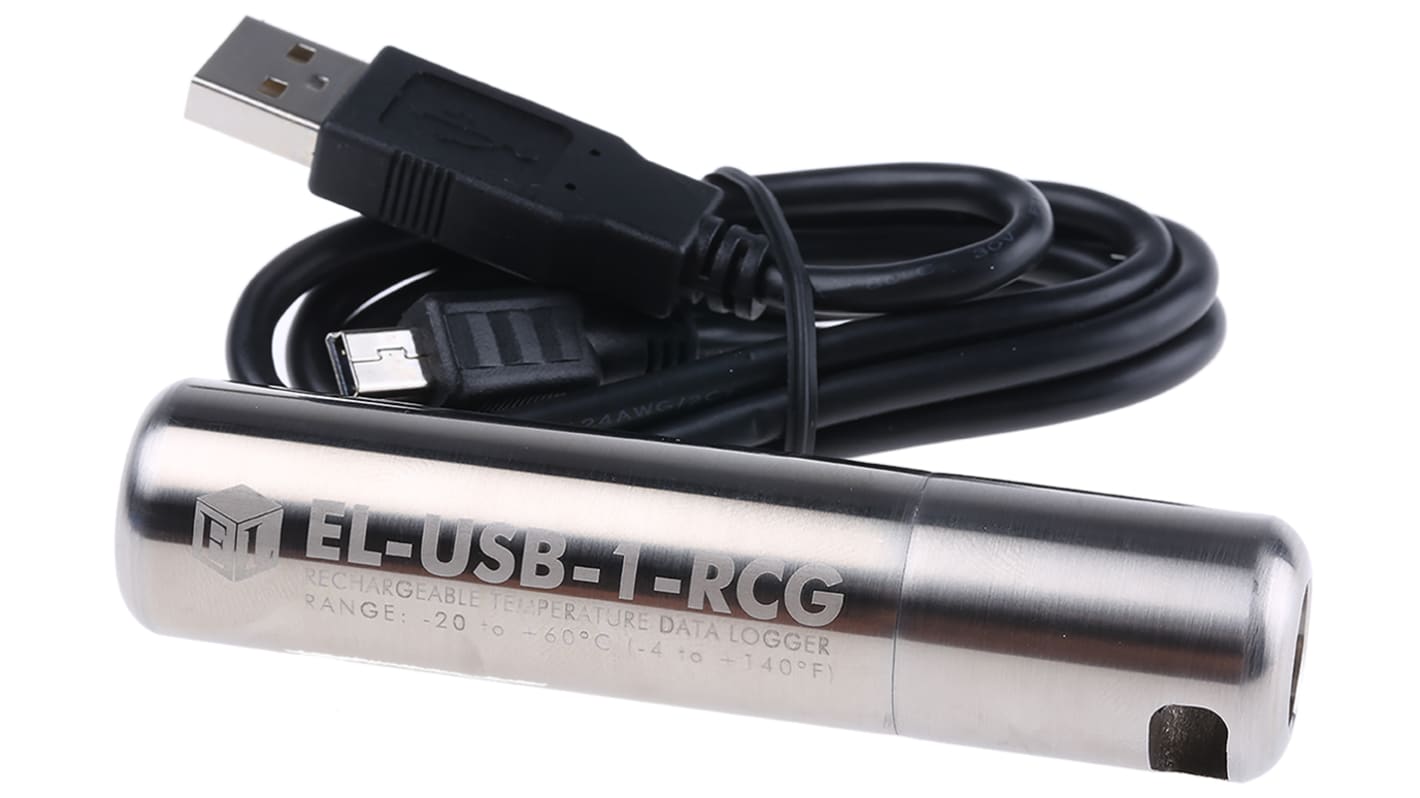

Rechargeable Temperature Data Logger with USB
The EL-USB-1-RCG is a standalone USB data logger from Lascar. This device will measure and store more than 32,000 temperature readings over a -20 to +60°C range.
The polycarbonate window and stainless steel 316 assembly protects from corrosion, impact and water ingress to IP67/NEMA 4X.
Users can easily set up their device by connecting the data logger to a PC's USB port, using the free EasyLog software. In the software, users can also view and download all their recorded data.
The polycarbonate window and stainless steel 316 assembly protects from corrosion, impact and water ingress to IP67/NEMA 4X.
Users can easily set up their device by connecting the data logger to a PC's USB port, using the free EasyLog software. In the software, users can also view and download all their recorded data.
Features and Benefits
-20 to +60°C (-4 to +140°F) measurement range
Stores over 32,000 readings
EasyLog software available as a free download
Stainless steel (316 grade) case
Rechargeable Lithium-Ion battery
Logging rates between 1 second and 12 hours
Immediate and delayed logging start
User-programmable alarm thresholds
Red & green status LEDs behind protective glass window
Environmental protection to IP67
Supplied with Type A-Mini B USB cable
Stores over 32,000 readings
EasyLog software available as a free download
Stainless steel (316 grade) case
Rechargeable Lithium-Ion battery
Logging rates between 1 second and 12 hours
Immediate and delayed logging start
User-programmable alarm thresholds
Red & green status LEDs behind protective glass window
Environmental protection to IP67
Supplied with Type A-Mini B USB cable
Applications
Food Temperature Monitoring
Facilities Management
Housing and Business Premises
Facilities Management
Housing and Business Premises
Note
This device is supplied with a Type A-Mini B USB cable.
Specifications
Attribute | Value |
|---|---|
| Number of Input Channels | 1 |
| Model Number | EL-USB-1-RCG |
| Measurement Parameters | Temperature |
| Sensor Type | Temperature |
| Interface Type | USB |
| Data Logger Type | Temperature |
| Maximum Temperature Measurement | +60 °C |
| Power Source | Battery |
| Best Temperature Measurement Accuracy | ±1 °C |
| IP Rating | IP67 |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | +55°C |
| Model Number p | EL-USB-1-RCG |
| Temperature Measurement Resolution | 0.1°C |
| Number of Readings Per Channel | 32510 |
| Alarm | Yes |
| Battery Type | Rechargeable Lithium-Ion |
| Includes | Battery, Cable, Software |
| Battery Life | 3 yr |
