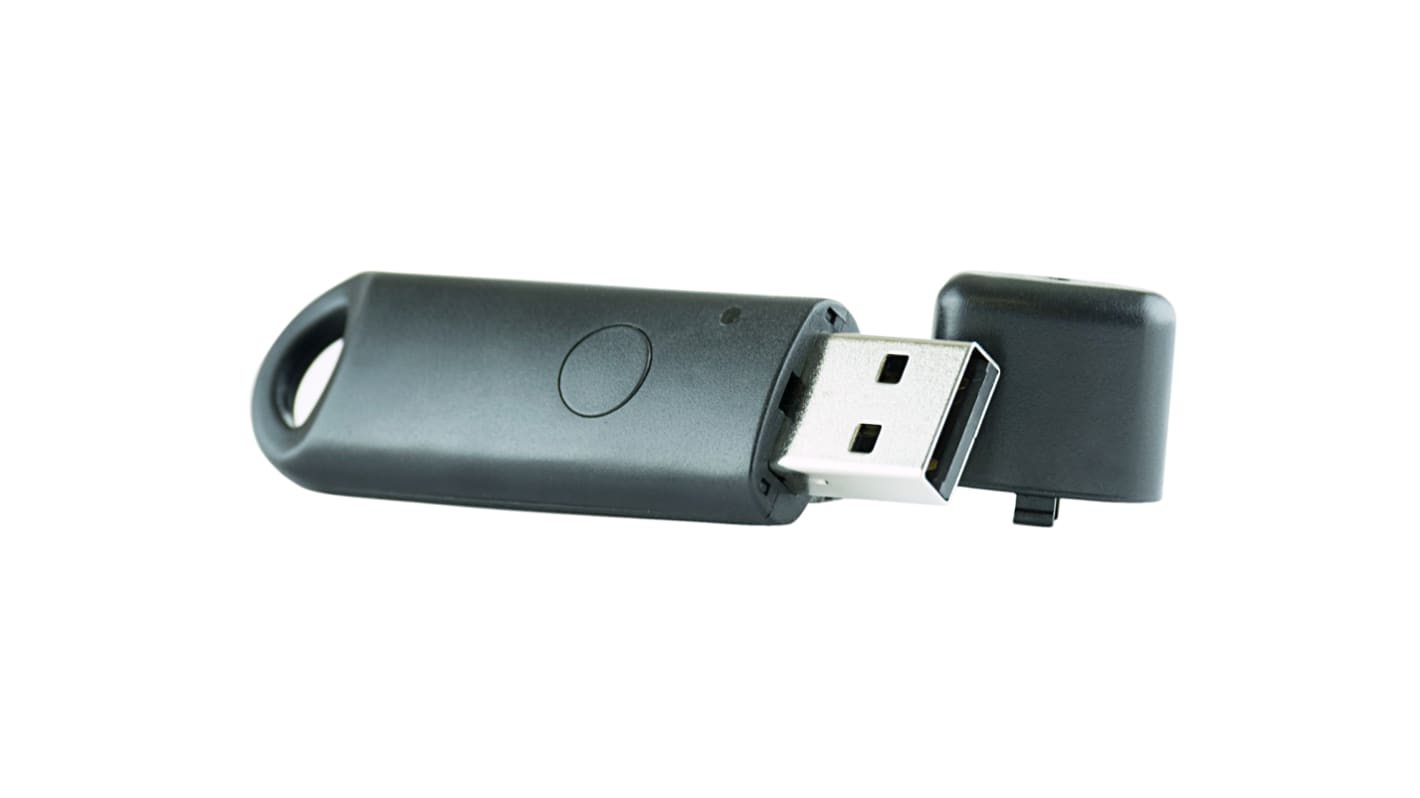

Lascar EL-USB-LITE Temperature Data Logger, USB
- RS Stock No.:
- 536-3283
- Mfr. Part No.:
- EL-USB-LITE
- Manufacturer:
- Lascar
72 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR178.65
| Units | Per Unit |
| 1 + | MYR178.65 |
- RS Stock No.:
- 536-3283
- Mfr. Part No.:
- EL-USB-LITE
- Manufacturer:
- Lascar
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Lascar Data Loggers
The Lascar EL-USB-LITE standalone data logger measures and stores over 4,000 temperature readings between -10°C and 50°C (14°F to +122°F) range at a resolution of 1°C (2°F) at a fixed 30-minute sample rate. The data logger is supplied with a CR1620 lithium coin cell, which can typically allow logging for up to a month. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.
Supplied with
CR1620 battery
Supplied with
CR1620 battery
Features and Benefits
The measurement ranges between -10°C and 50°C
Temperature measurement accuracy is ±2.5°C
Logging rates is 30 minutes
Number of readings per channel is 4080
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via red/green LEDs
Battery life is up to 1 month
Supplied complete with a CR1620 lithium coin cell
Temperature measurement accuracy is ±2.5°C
Logging rates is 30 minutes
Number of readings per channel is 4080
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via red/green LEDs
Battery life is up to 1 month
Supplied complete with a CR1620 lithium coin cell
Applications
Building and site monitoring
Cold chain in the food industry
Housing and business premises
Cold chain in the food industry
Housing and business premises
Specifications
Attribute | Value |
|---|---|
| Model Number | EL-USB-LITE |
| Number of Input Channels | 1 |
| Measurement Parameters | Temperature |
| Sensor Type | Temperature |
| Interface Type | USB |
| Data Logger Type | Temperature |
| Maximum Temperature Measurement | +50 °C |
| Power Source | Battery |
| Best Temperature Measurement Accuracy | ±2.5 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Number of Readings Per Channel | 4080 |
| Includes | Battery |
| Battery Life | 1 month |
| Temperature Measurement Resolution | 1°C |
| Battery Type | CR1620 Lithium Coin Cell |
| Alarm | Yes |
| Model Number p | EL-USB-LITE |
