Lascar EL-CC-2-004 Temperature & Humidity Data Logger, USB, 1 Input Channel(s)
- RS Stock No.:
- 146-6455
- Mfr. Part No.:
- EL-CC-2-004 PK10
- Manufacturer:
- Lascar
Subtotal (1 unit)*
MYR1,474.57
FREE delivery for orders over RM 500.00
Being discontinued
- Final 2 unit(s), ready to ship from another location
Units | Per Unit |
|---|---|
| 1 + | MYR1,474.57 |
*price indicative
- RS Stock No.:
- 146-6455
- Mfr. Part No.:
- EL-CC-2-004 PK10
- Manufacturer:
- Lascar
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lascar | |
| Number of Input Channels | 1 | |
| Model Number | EL-CC-2-004 | |
| Measurement Parameters | Humidity, Temperature | |
| Sensor Type | Humidity, Temperature | |
| Interface Type | USB | |
| Data Logger Type | Temperature & Humidity | |
| Maximum Temperature Measurement | +60 °C | |
| Power Source | Battery | |
| Best Temperature Measurement Accuracy | ±0.5°C | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +60°C | |
| Alarm | Yes | |
| Number of Readings Per Channel | 32637 | |
| Dimensions | 67 x 48mm | |
| Battery Type | Non Replacable | |
| Includes | Alarm | |
| Humidity Measurement Resolution | 0.1%RH | |
| Maximum Humidity Measurement | 100%RH | |
| Best Humidity Measurement Accuracy | ±2 %RH | |
| Battery Life | 1 Year | |
| Temperature Measurement Resolution | 0.1°C | |
| Select all | ||
|---|---|---|
Brand Lascar | ||
Number of Input Channels 1 | ||
Model Number EL-CC-2-004 | ||
Measurement Parameters Humidity, Temperature | ||
Sensor Type Humidity, Temperature | ||
Interface Type USB | ||
Data Logger Type Temperature & Humidity | ||
Maximum Temperature Measurement +60 °C | ||
Power Source Battery | ||
Best Temperature Measurement Accuracy ±0.5°C | ||
IP Rating IP67 | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +60°C | ||
Alarm Yes | ||
Number of Readings Per Channel 32637 | ||
Dimensions 67 x 48mm | ||
Battery Type Non Replacable | ||
Includes Alarm | ||
Humidity Measurement Resolution 0.1%RH | ||
Maximum Humidity Measurement 100%RH | ||
Best Humidity Measurement Accuracy ±2 %RH | ||
Battery Life 1 Year | ||
Temperature Measurement Resolution 0.1°C | ||
- COO (Country of Origin):
- CN

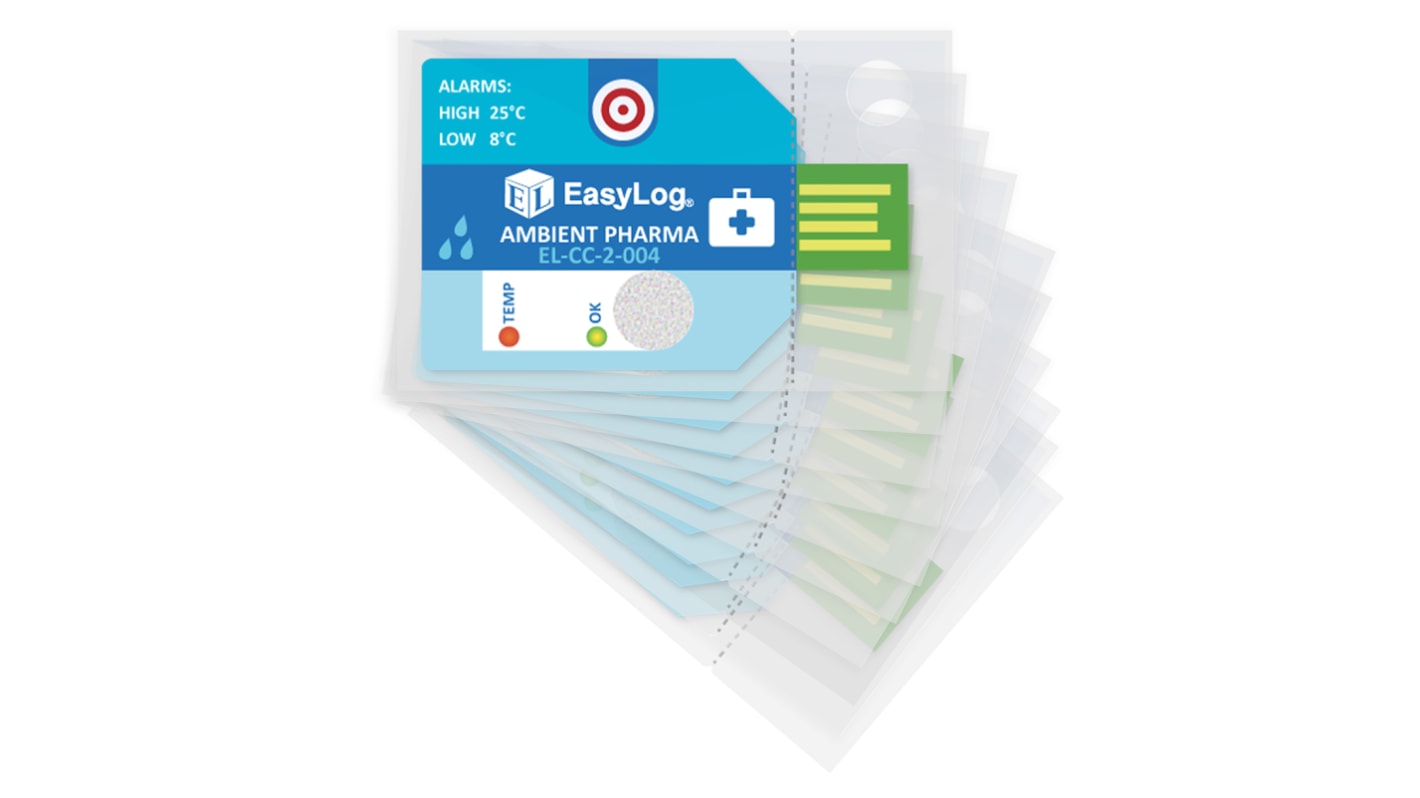

Lascar Single Use Monitor for the Pharmaceutical & Medical Market
Provided in packs of 10, the single-use EL-CC-2-004 PK10 Ambient Pharmaceutical Goods data logger measures and stores both temperature and humidity information. The unit comes pre-configured with High 25°C and Low 8°C Alarms - simply press the button to start logging.
During a logging session, pressing the button will light up the status LEDs to give a quick indication of whether the temperature has exceeded an alarm condition at any point.
Once your session is completed, tear open the IP67-rated plastic wallet to reveal the USB connector and plug it into your PC. Use the free EasyLog CC software for Windows to download and graph the data.
During a logging session, pressing the button will light up the status LEDs to give a quick indication of whether the temperature has exceeded an alarm condition at any point.
Once your session is completed, tear open the IP67-rated plastic wallet to reveal the USB connector and plug it into your PC. Use the free EasyLog CC software for Windows to download and graph the data.
Features and Benefits
Loggers for monitoring Chilled Goods, Ambient Pharmaceuticals, Blood and Platelets in transportation
Measures 0 to 100% Relative Humidity range.
No set-up required. One button press-to-start logging.
Single use with up to 12+ months battery life.
Various export options including PDF, Microsoft Excel and JPEG.
Measures 0 to 100% Relative Humidity range.
No set-up required. One button press-to-start logging.
Single use with up to 12+ months battery life.
Various export options including PDF, Microsoft Excel and JPEG.
Applications
Pharmaceutical Cold Chain
