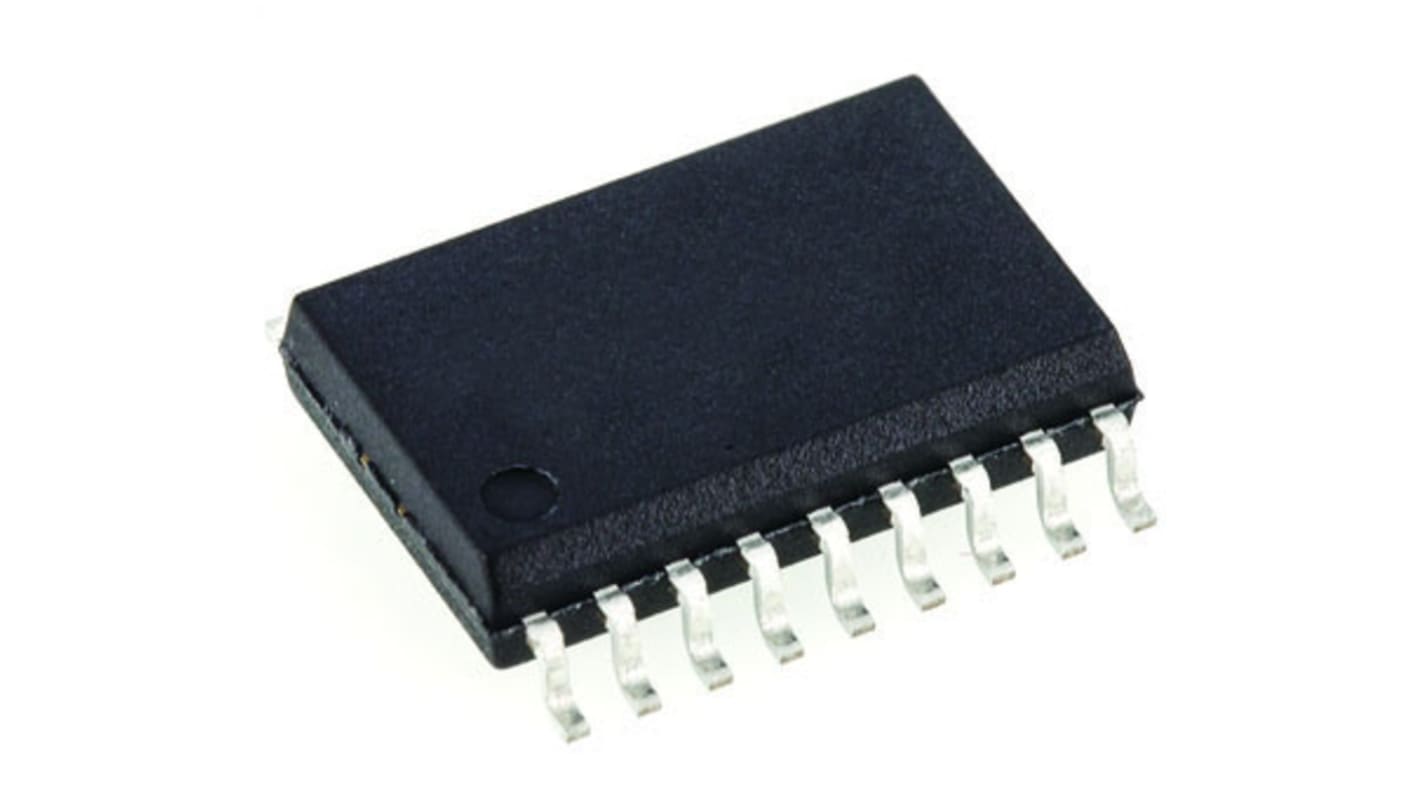

Texas Instruments ULN2803ADW Octal NPN Darlington Transistor, 500 mA 50 V, 18-Pin SOIC
- RS Stock No.:
- 866-0196
- Mfr. Part No.:
- ULN2803ADW
- Manufacturer:
- Texas Instruments
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Tube of 40)
MYR9.286
| Units | Per Unit | Per Tube* |
| 40 - 40 | MYR9.286 | MYR371.44 |
| 80 - 360 | MYR9.10 | MYR364.00 |
| 400 + | MYR7.49 | MYR299.60 |
| *price indicative | ||
- RS Stock No.:
- 866-0196
- Mfr. Part No.:
- ULN2803ADW
- Manufacturer:
- Texas Instruments
Technical data sheets
Legislation and Compliance
Product Details
Darlington Transistor Arrays, Texas Instruments
A range of Darlington transistor arrays from Texas Instruments suitable for a wide range of medium to high current driver applications.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Darlington Transistor Drivers
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 18 |
| Transistor Configuration | Common Emitter |
| Number of Elements per Chip | 8 |
| Maximum Collector Emitter Saturation Voltage | 1.6 V |
| Maximum Collector Cut-off Current | 50µA |
| Width | 7.6mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 11.75 x 7.6 x 2.35mm |
| Length | 11.75mm |
| Height | 2.35mm |
| Minimum Operating Temperature | -40 °C |
