onsemi NJD35N04T4G NPN Darlington Transistor, 4 A 350 V HFE:2000, 3-Pin DPAK

RS Stock No.:: 806-5046
Mfr. Part No.:: NJD35N04T4G
Manufacturer:: onsemi

onsemi NJD35N04T4G NPN Darlington Transistor, 4 A 350 V HFE:2000, 3-Pin DPAK

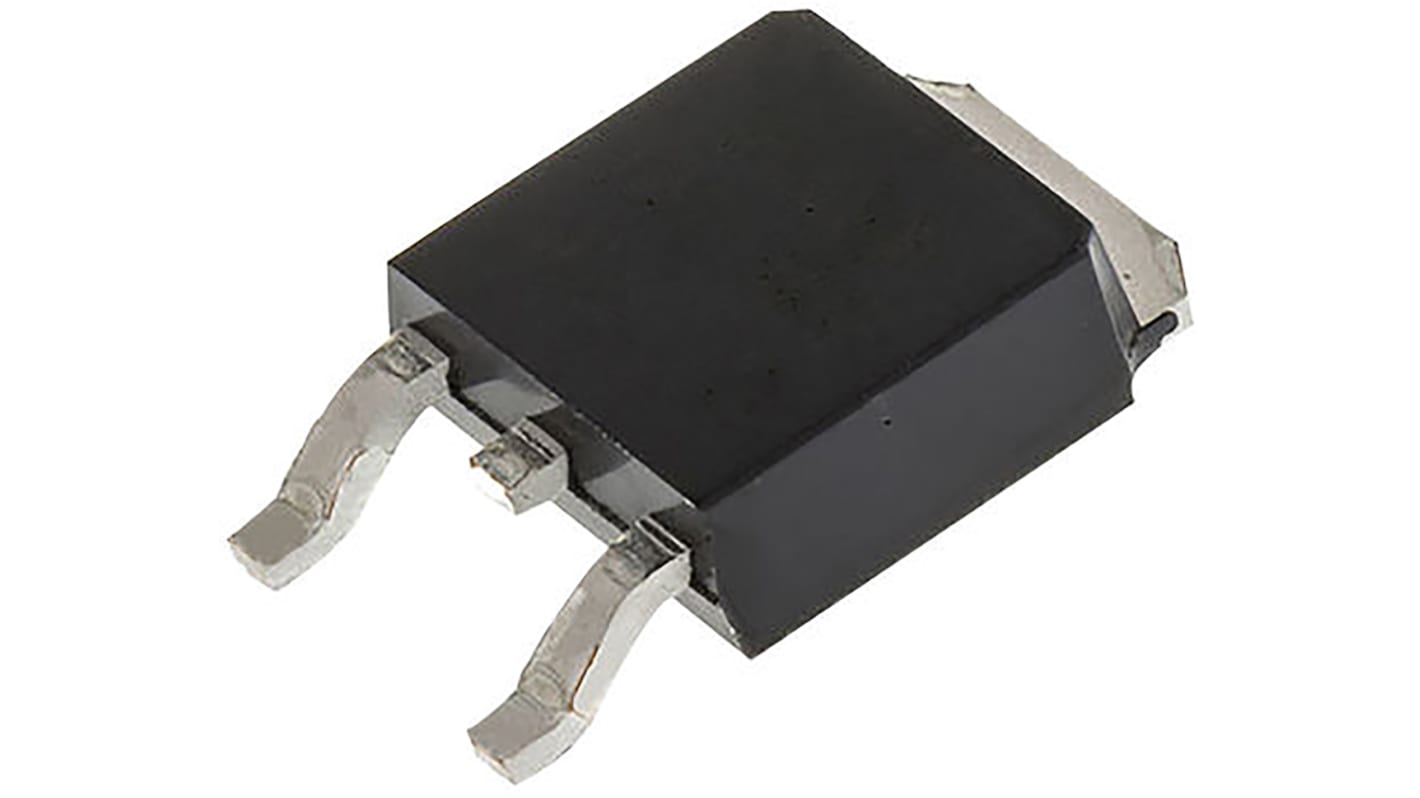

This image is representative of the product range

Bulk discount available

Price Each (On a Tape of 25)

MYR5.233

2500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per Unit	Per Tape**
25 - 600	MYR5.233	MYR130.825
625 - 1225	MYR4.972	MYR124.30
1250 +	MYR4.724	MYR118.10

**price indicative

RS Stock No.:: 806-5046
Mfr. Part No.:: NJD35N04T4G
Manufacturer:: onsemi

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Transistor Type	NPN
Maximum Continuous Collector Current	4 A
Maximum Collector Emitter Voltage	350 V
Maximum Emitter Base Voltage	5 V
Package Type	DPAK (TO-252)
Mounting Type	Surface Mount
Pin Count	3
Transistor Configuration	Single
Number of Elements per Chip	1
Minimum DC Current Gain	2000
Maximum Base Emitter Saturation Voltage	2 V
Maximum Collector Base Voltage	700 V
Maximum Collector Emitter Saturation Voltage	1.5 V
Maximum Collector Cut-off Current	250mA
Maximum Power Dissipation	45 W
Length	6.73mm
Height	2.38mm
Width	7.49mm
Dimensions	6.73 x 7.49 x 2.38mm
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-65 °C

onsemi NJD35N04T4G NPN Darlington Transistor, 4 A 350 V HFE:2000, 3-Pin DPAK

NPN Darlington Transistors, ON Semiconductor
