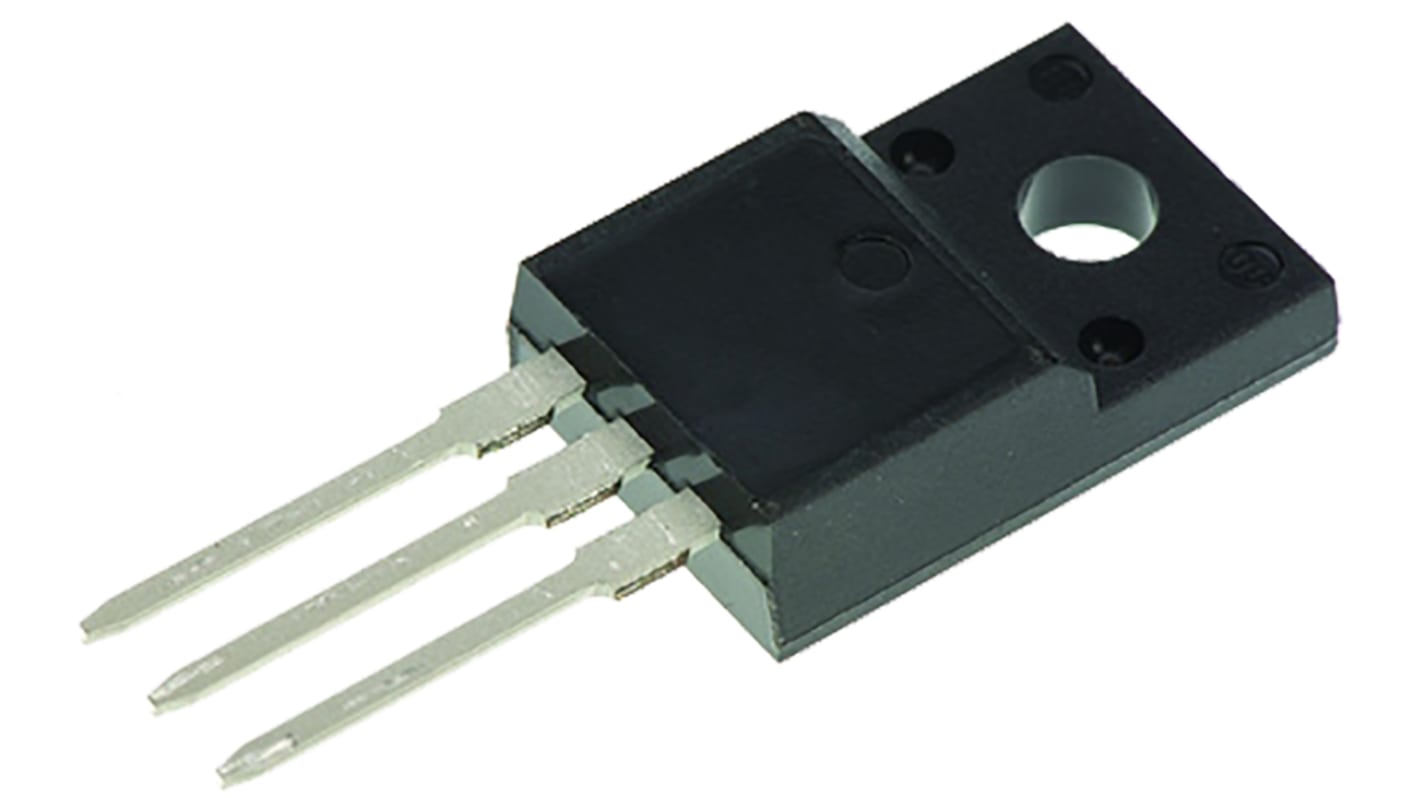

Toshiba TTD1415B,S4X(S Dual PNP Darlington Transistor, 7 A 100 V HFE:1000, 3-Pin TO-220SIS
- RS Stock No.:
- 144-5248
- Mfr. Part No.:
- TTD1415B,S4X(S
- Manufacturer:
- Toshiba
40 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR4.015
| Units | Per Unit | Per Pack* |
| 10 - 40 | MYR4.015 | MYR40.15 |
| 50 - 90 | MYR3.733 | MYR37.33 |
| 100 - 490 | MYR3.498 | MYR34.98 |
| 500 - 990 | MYR3.294 | MYR32.94 |
| 1000 + | MYR3.116 | MYR31.16 |
| *price indicative | ||
- RS Stock No.:
- 144-5248
- Mfr. Part No.:
- TTD1415B,S4X(S
- Manufacturer:
- Toshiba
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
NPN Darlington Transistors, Toshiba
Bipolar Transistors, Toshiba
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum Continuous Collector Current | 7 A |
| Maximum Collector Emitter Voltage | 100 V |
| Maximum Emitter Base Voltage | 6 V |
| Package Type | TO-220SIS |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Configuration | Single |
| Number of Elements per Chip | 2 |
| Minimum DC Current Gain | 1000 |
| Maximum Base Emitter Saturation Voltage | 2 V |
| Maximum Collector Base Voltage | 120 V |
| Maximum Collector Emitter Saturation Voltage | 2 V |
| Maximum Collector Cut-off Current | 2µA |
| Height | 15mm |
| Base Current | 0.7A |
| Width | 4.5mm |
| Maximum Power Dissipation | 25 W @ 25 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 10 x 4.5 x 15mm |
| Length | 100mm |
