Open/Close Damper Actuator, 40Nm, 230 V ac

  • RS Stock No. 504-1315
  • Mfr. Part No. GM230A
  • Manufacturer Belimo
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

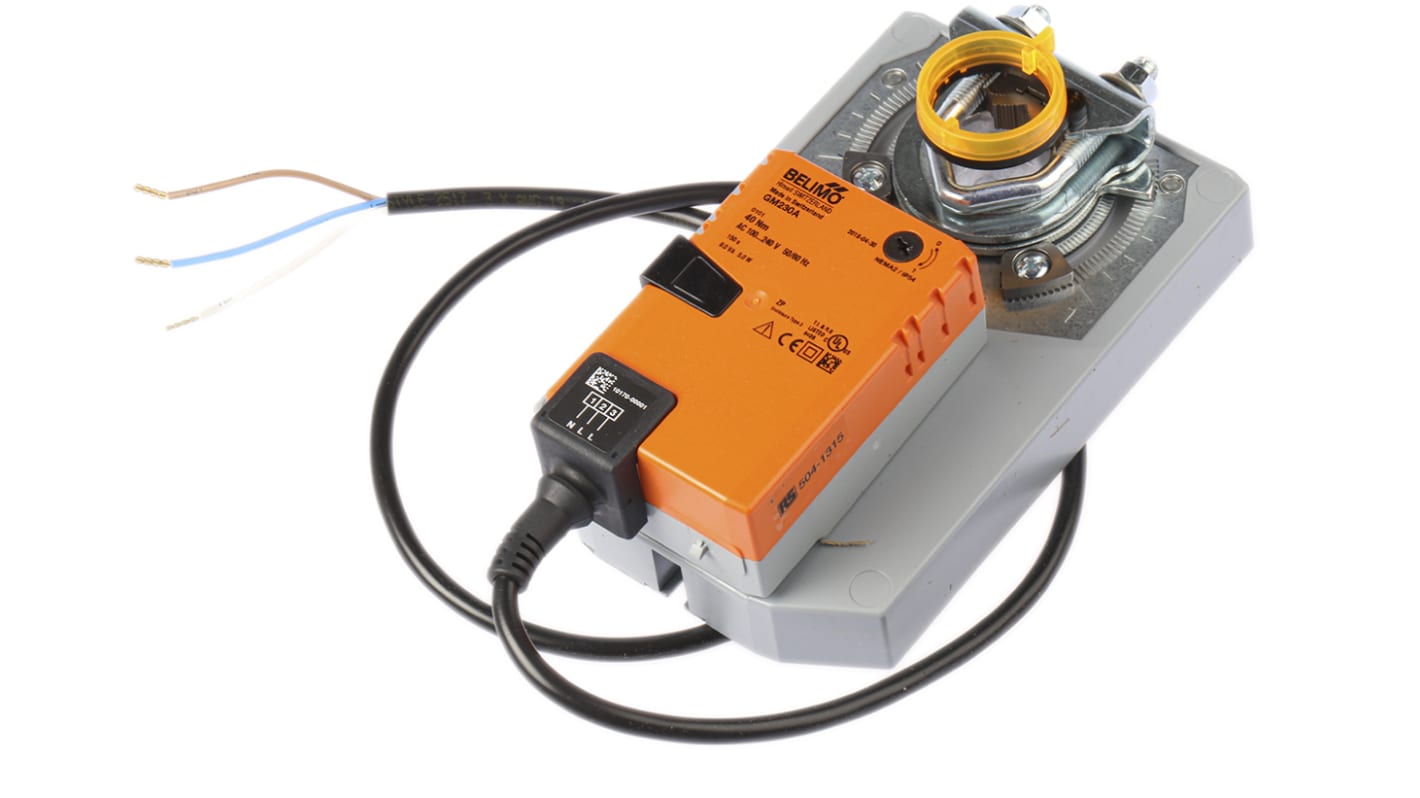

Belimo Damper Actuator

The Belimo damper actuator has an open/close control type. This actuator has an adjustable U-clamp, which accepts round or square shafts. It is a rotary/louver actuator. It is compatible with all the leading makes of HVAC controls. The damper actuator is used for adjusting air dampers in ventilation and air-conditioning system installed in buildings. This actuator operates on stall torque technology, which does not require end switches. The damper actuator has no limit switches and is overload proof. It requires a 230VAC/VDC supply voltage.

Optional auxiliary switch (stock no. 504-1545) suitable for use with LM, NM, SM, and GM damper actuators, features 2xSPDT switches rated at 3 (0.5)A 250Vac and supplied with 1m of cable.

Features and Benefits

Operation life is minimum 60000
Pushbutton manual override
Direction change switch
Cable length is 1m
Ambient temperature ranges between -30°C and 50°C
Rated impulse voltage is 0.8kV
Maintenance-free
Power consumption is 5W
Maximum damper area is 8m²
Damper spindle compatibility ranges between 12mm and 26.7mm
Motor torque is 40Nm
Noise level is 45dB

Certifications

IP54 rated
CE according to 89/336/EEC
92/31/EEC
UL Enclosure Type 2
IEC/EN 60730-1
IEC/EN 60730-2-14

Specifications
Attribute Value
Maximum Damper Area 8m²
Damper Spindle Compatibility 12 → 26.7mm
Power Consumption 5W
Control Type Open/Close
Supply Voltage 230 V ac
Motor Torque 40Nm
Noise Level 45dB(A)
Maximum Damper Spindle Size 26.7mm
Minimum Damper Spindle Size 12mm
Stock check temporarily unavailable - call for stock availability
Price Each
MYR 1,246.95
units
Per unit
1 - 5
MYR1,246.95
6 +
MYR1,216.37
