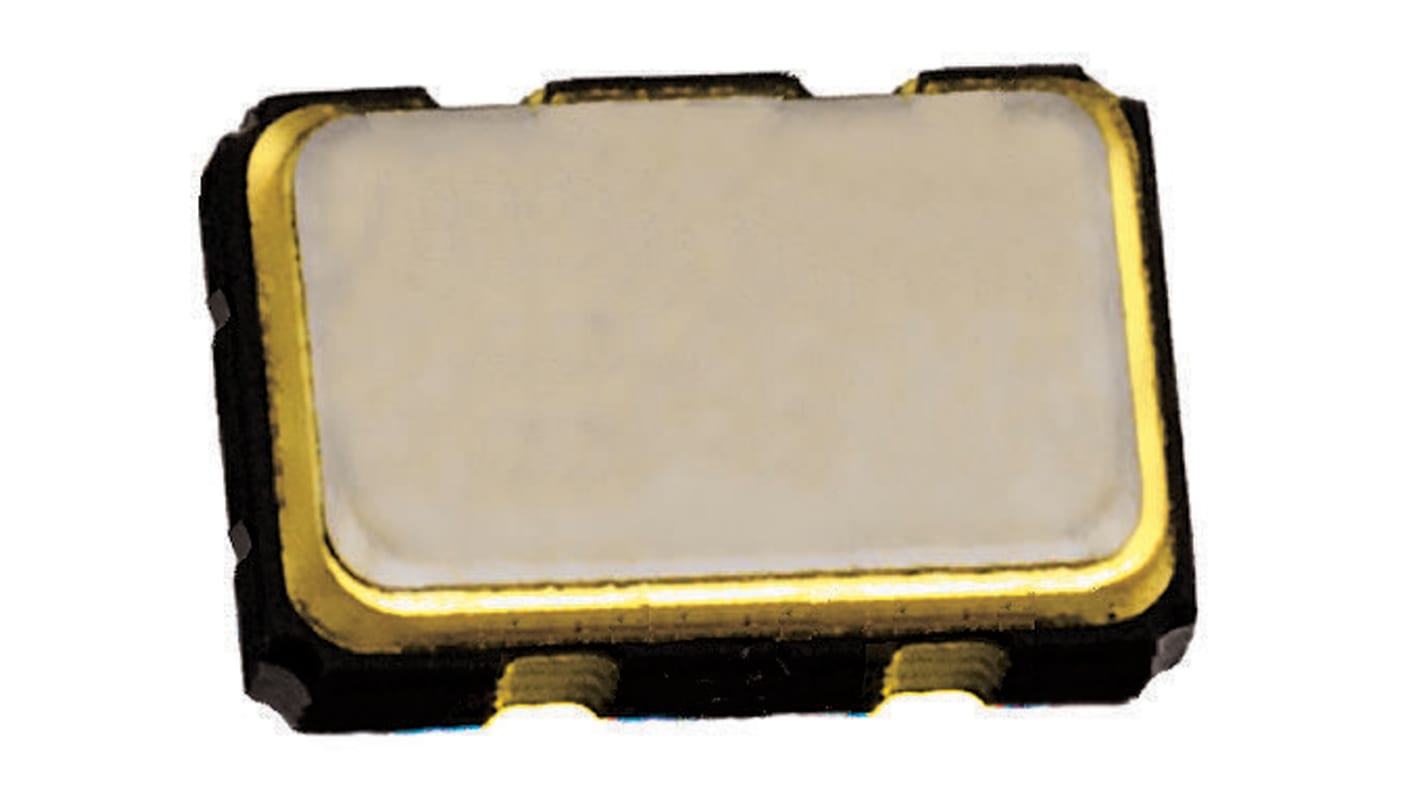

MERCURY 20MHz Crystal ±30ppm SMD 4-Pin 5 x 3.2 x 0.9mm
- RS Stock No.:
- 672-0460P
- Mfr. Part No.:
- MJ-20.000-12-30/30/4085
- Manufacturer:
- MERCURY
Bulk discount available
Subtotal 250 units (supplied as a tape)**
MYR1,240.00
Temporarily out of stock - back order for despatch 18/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 250 - 495 | MYR4.96 |
| 500 + | MYR4.812 |
**price indicative
- RS Stock No.:
- 672-0460P
- Mfr. Part No.:
- MJ-20.000-12-30/30/4085
- Manufacturer:
- MERCURY
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MERCURY | |
| Standard Frequency | 20MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 12pF | |
| Package Type | SMD | |
| Pin Count | 4 | |
| Length | 5mm | |
| Width | 3.2mm | |
| Height | 0.9mm | |
| Dimensions | 5 x 3.2 x 0.9mm | |
| Frequency Tolerance | ±30ppm | |
| Frequency Stability | ±30ppm | |
| Series Resistance | 50Ω | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand MERCURY | ||
Standard Frequency 20MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 12pF | ||
Package Type SMD | ||
Pin Count 4 | ||
Length 5mm | ||
Width 3.2mm | ||
Height 0.9mm | ||
Dimensions 5 x 3.2 x 0.9mm | ||
Frequency Tolerance ±30ppm | ||
Frequency Stability ±30ppm | ||
Series Resistance 50Ω | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
