RS PRO Uninsulated Crimp Pin Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 1.9mm Pin Diameter, 9mm Pin Length
- RS Stock No.:
- 809-2341
- Manufacturer:
- RS PRO
100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
1400 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
MYR0.44
Units | Per Unit | Per Pack* |
100 - 400 | MYR0.44 | MYR44.00 |
500 - 2400 | MYR0.428 | MYR42.80 |
2500 + | MYR0.352 | MYR35.20 |
*price indicative |
- RS Stock No.:
- 809-2341
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

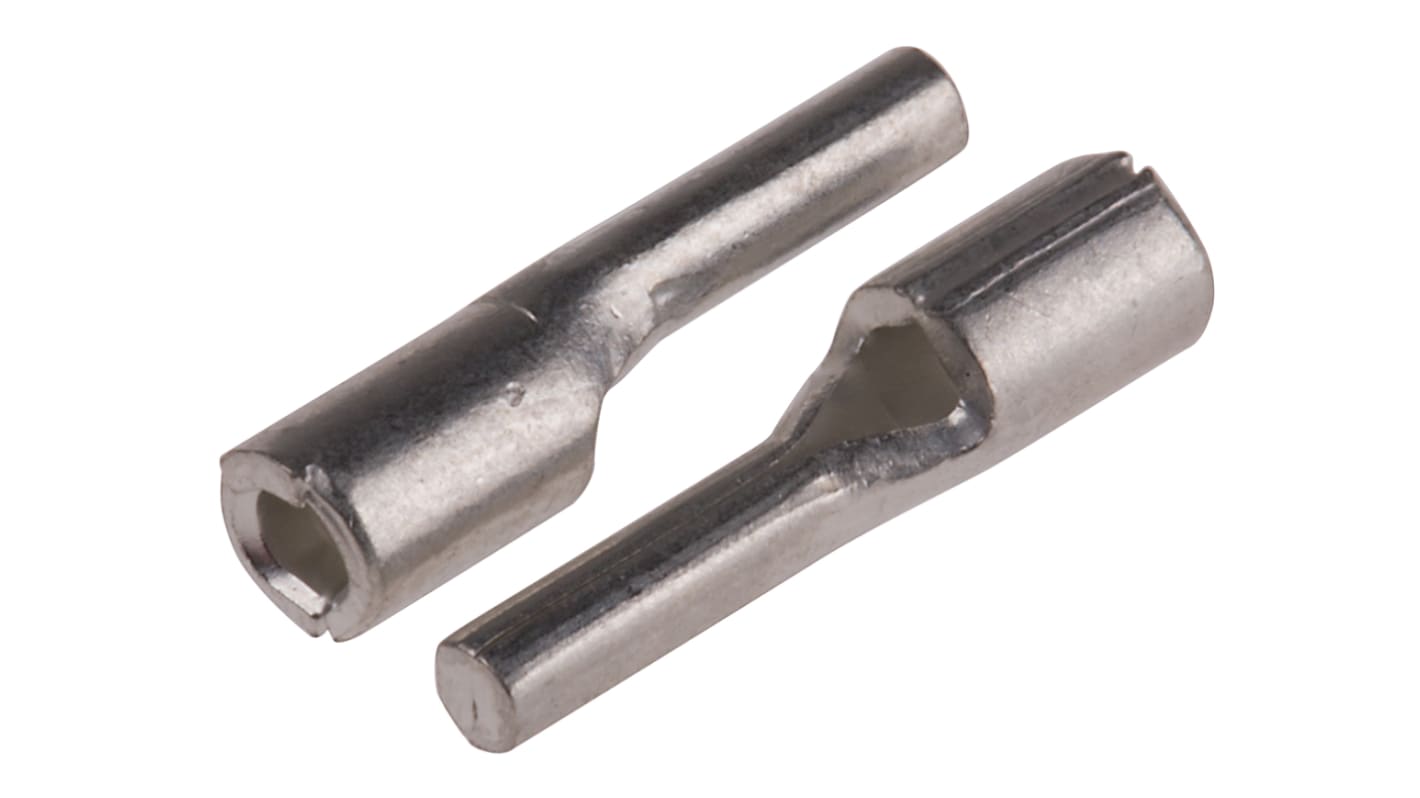

RS Uninsulated Crimp Wire Pin Terminals
Uninsulated crimp wire pin terminals made from copper with a brazed seam. These non-insulated crimp wire pin terminals are available with a variety of wire sizes.
Specifications
Attribute | Value |
---|---|
Insulation | Uninsulated |
Minimum Wire Size mm² | 0.5mm² |
Overall Length | 13.8mm |
Maximum Wire Size mm² | 1.5mm² |
Minimum Wire Size AWG | 22AWG |
Maximum Wire Size AWG | 16AWG |
Shrouded/Unshrouded | Unshrouded |
Pin Diameter | 1.9mm |
Pin Length | 9mm |
Contact Material | Copper |
