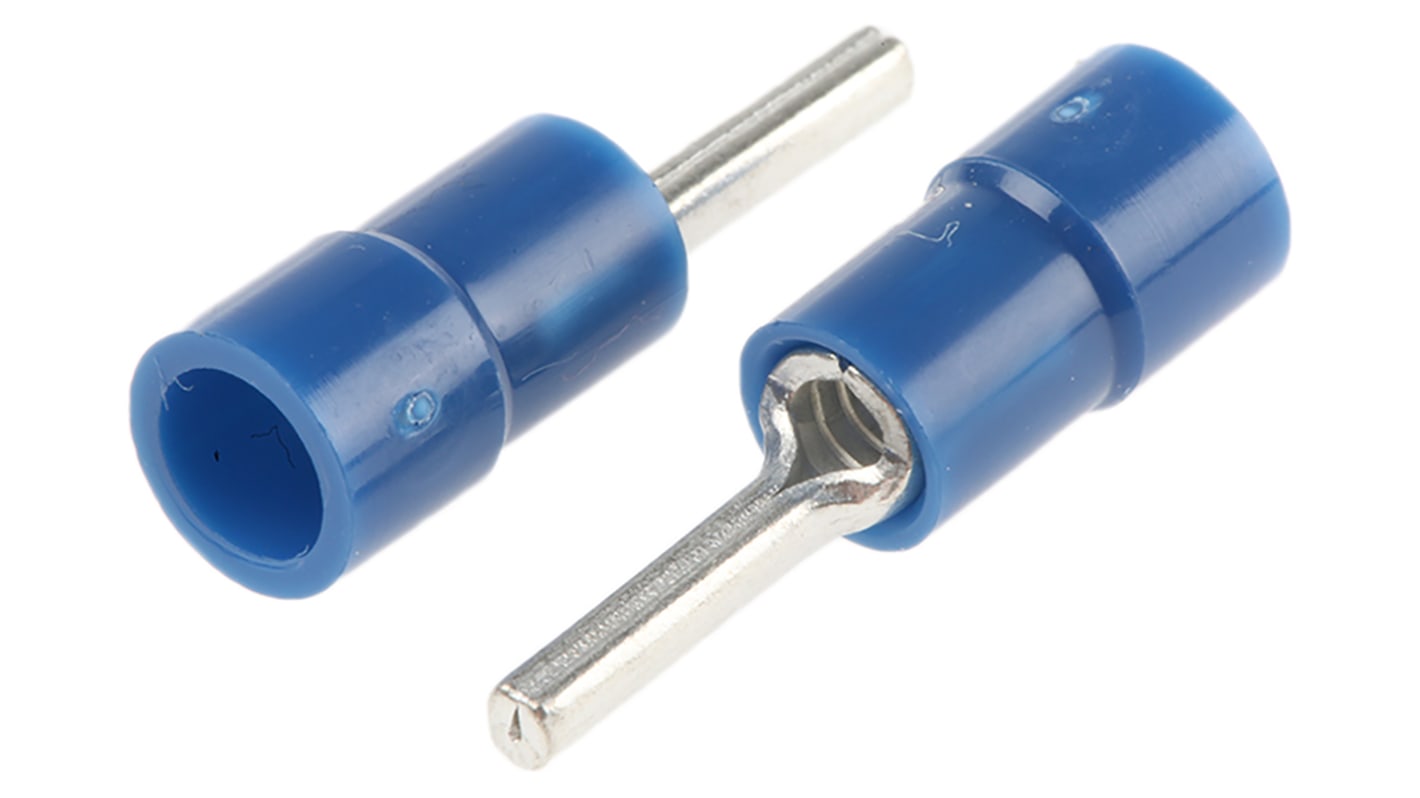

RS PRO Insulated, Tin Crimp Pin Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 1.9mm Pin Diameter, 10mm Pin Length, Blue
- RS Stock No.:
- 613-9873
- Manufacturer:
- RS PRO
1700 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
Was MYR0.707
You pay
MYR0.671
| Units | Per Unit | Per Pack* |
| 100 - 400 | MYR0.671 | MYR67.10 |
| 500 - 2400 | MYR0.657 | MYR65.70 |
| 2500 - 4900 | MYR0.637 | MYR63.70 |
| 5000 - 24900 | MYR0.622 | MYR62.20 |
| 25000 + | MYR0.512 | MYR51.20 |
| *price indicative | ||
- RS Stock No.:
- 613-9873
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO Insulated, Tin Crimp Pin Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, 1.9 mm Pin Diameter, 10 mm Pin Length, Blue
When you need to quickly and securely terminate electrical connections, turn to this pin connector from RS PRO. Its contacts are made from tin-plated copper to ensure a reliable electrical connection.
To protect the metal interior against corrosion, the air-tight crimping prevents moisture and oxygen from getting through. The end of the connector is insulated with vinyl to shield the connection against mechanical and chemical damage. You can also integrate this connector into a colour-coded system as its blue colour allows you to identify it at a glance.
You'll find this type of connector used by electricians thanks to its ease of use and versatility. It's useful for a variety of applications as it accommodates wires ranging in size from 16 to 14 AWG (American Wire Gauge).
To protect the metal interior against corrosion, the air-tight crimping prevents moisture and oxygen from getting through. The end of the connector is insulated with vinyl to shield the connection against mechanical and chemical damage. You can also integrate this connector into a colour-coded system as its blue colour allows you to identify it at a glance.
You'll find this type of connector used by electricians thanks to its ease of use and versatility. It's useful for a variety of applications as it accommodates wires ranging in size from 16 to 14 AWG (American Wire Gauge).
Features and Benefits
- Blue colour
- Copper contact material
- Tin contact plating
- Insulated
- Vinyl insulation material
- Maximum wire size of 14 AWG (American Wire Gauge)
- Minimum wire size of 16 AWG (American Wire Gauge)
- Maximum wire size of 2.5 mm²
- Minimum wire size of 1.5 mm²
- Overall length of 20.8 mm
- Pin diameter of 1.9 mm
- Pin length of 10 mm
- Unshrouded
Small Pack Size
Per Unit, RS stock no: 613-9873
Large Pack Size
RS stock no: 270-7623
Approvals
UL (E125401)
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 1.5mm² |
| Overall Length | 20.8mm |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Shrouded/Unshrouded | Unshrouded |
| Maximum Wire Size AWG | 14AWG |
| Pin Diameter | 1.9mm |
| Pin Length | 10mm |
| Colour | Blue |
| Contact Plating | Tin |
| Contact Material | Copper |
