TE Connectivity AMPMODU Short Point Series Female Crimp Terminal, 32AWG Min, 28AWG Max
- RS Stock No.:
- 782-9066
- Mfr. Part No.:
- 1-104481-3
- Manufacturer:
- TE Connectivity
200 In Local stock for delivery in 2-3 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
Was MYR1.454
You pay
MYR0.945
| Units | Per Unit | Per Pack* |
| 100 - 900 | MYR0.945 | MYR94.50 |
| 1000 - 2900 | MYR0.926 | MYR92.60 |
| 3000 - 7400 | MYR0.907 | MYR90.70 |
| 7500 - 14900 | MYR0.889 | MYR88.90 |
| 15000 + | MYR0.872 | MYR87.20 |
| *price indicative | ||
- RS Stock No.:
- 782-9066
- Mfr. Part No.:
- 1-104481-3
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details

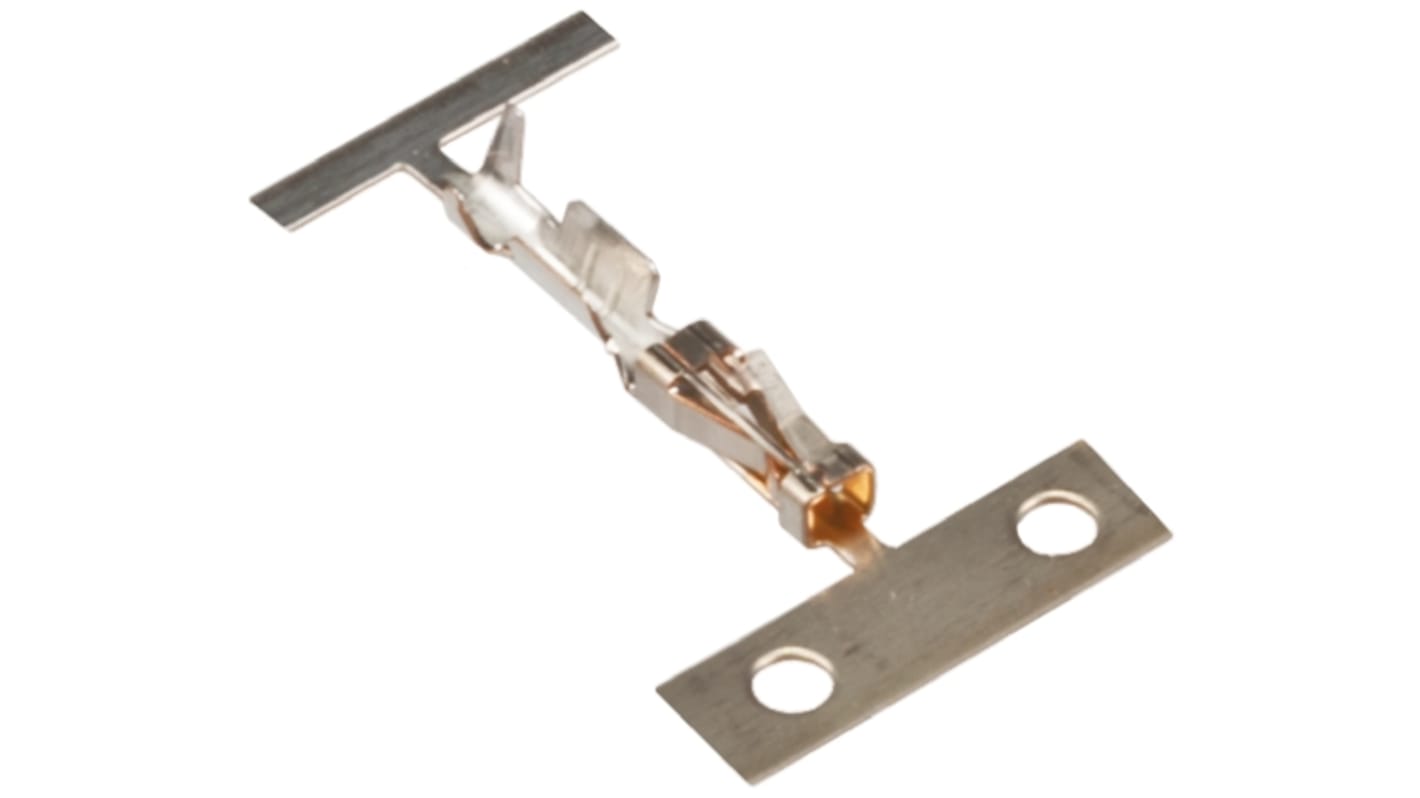

TE Connectivity AMPMODU Short Point Crimp Snap-In Receptacle Contacts
A range of TE Connectivity AMPMODU short point contacts designed to mate with 0.64mm square or round posts that are 4.29 to 6.58mm in length. These AMPMODU short point contacts have a locking lance feature and snap into AMPMODU MTE housings to provide a complete wire-crimp system or simply be used as replacement contacts. These short point crimp snap-in receptacle contacts are made from copper alloy with gold or tin plating options and support a maximum wire insulation diameter of 1.52mm.
For short point receptacle housings see stock number 797-3160 typical.
For short point receptacle housings see stock number 797-3160 typical.
2.54mm TE Connectivity AMPMODU Short Point Range
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | AMPMODU Short Point and AMPMODU MTE Connector Housings |
| Series | AMPMODU Short Point |
| Minimum Wire Size mm² | 0.03mm² |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 0.09mm² |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 32AWG |
| Contact Material | Phosphor Bronze |
| Maximum Wire Size AWG | 28AWG |
| Maximum Contact Resistance | 12mΩ |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +105°C |
