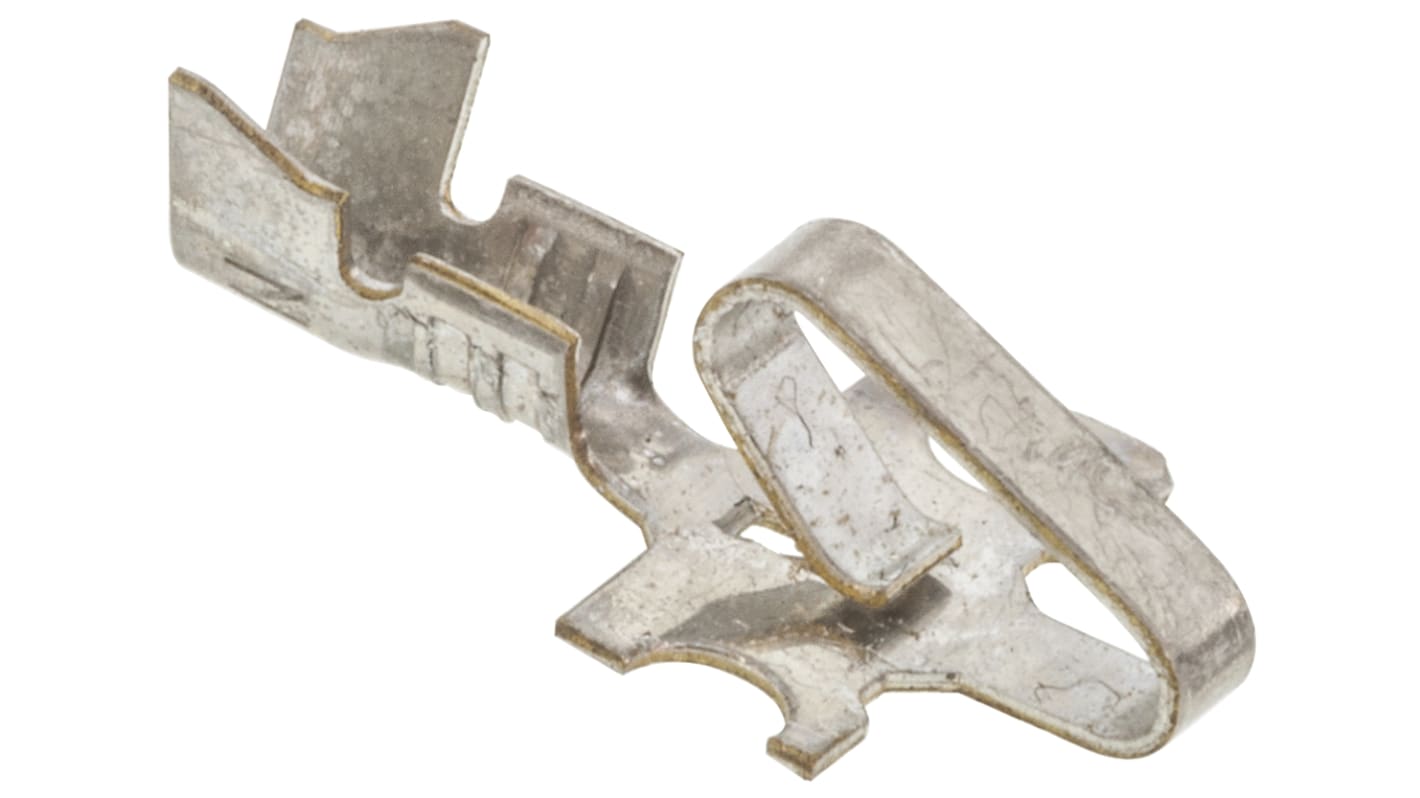

Molex KK 396 Series Female Crimp Terminal, 24AWG Min, 18AWG Max

2478 and 2578 series crimp receptacle terminals with a dual cantilever design for use in the KK 396 and KK508 series crimp connector housings. These KK series crimp terminals have a square post contact area that interfaces with the mating male pin header by using a spring-like contact. Wire size ranges of 26 AWG to 22 AWG (series 2578) and 24 AWG to 18 AWG (series 2478) are available with a range of contact platings

• Wire gauge of 18 to 26 AWG
• Brass or Phosphor Bronze material
• Tin or Gold Contact Plating

• Automotive Industry
• Consumer Electronics
• Data/Computing
• Medical Industry
• Communications
• Networking

Need to make dependable connections to a printed circuit board (PCB) or to wire terminals sized 24 to 18AWG (American Wire Gauge)? Turn to this female crimp contact from Molex. It features a dual cantilever design and a square post contact surface. A spring-like contact with the male pin header makes for a stronger connection, and a locking tang then secures the terminal once it's in the housing. This device has an operating temperature range of 0°C to +50°C, so you can use it in commercial and light industrial situations.

• Tin contact plating over brass construction provides enhanced conductivity
• Crimp connections create airtight seals that prevent moisture and debris from getting in and corroding wires
• No filler alloy is used, meaning a mechanically stronger bond and reliable performance

• Automotive industry
• Consumer electronics
• Data, communications and networking

Yes, this contact has been thoroughly tested to meet quality standards, and has satisfied all necessary EU safety and environmental standards. In addition, it has low halogen content so the risk of toxicity in case of exposure to fire or excessive heat is reduced.

3.96mm Molex KK Range
