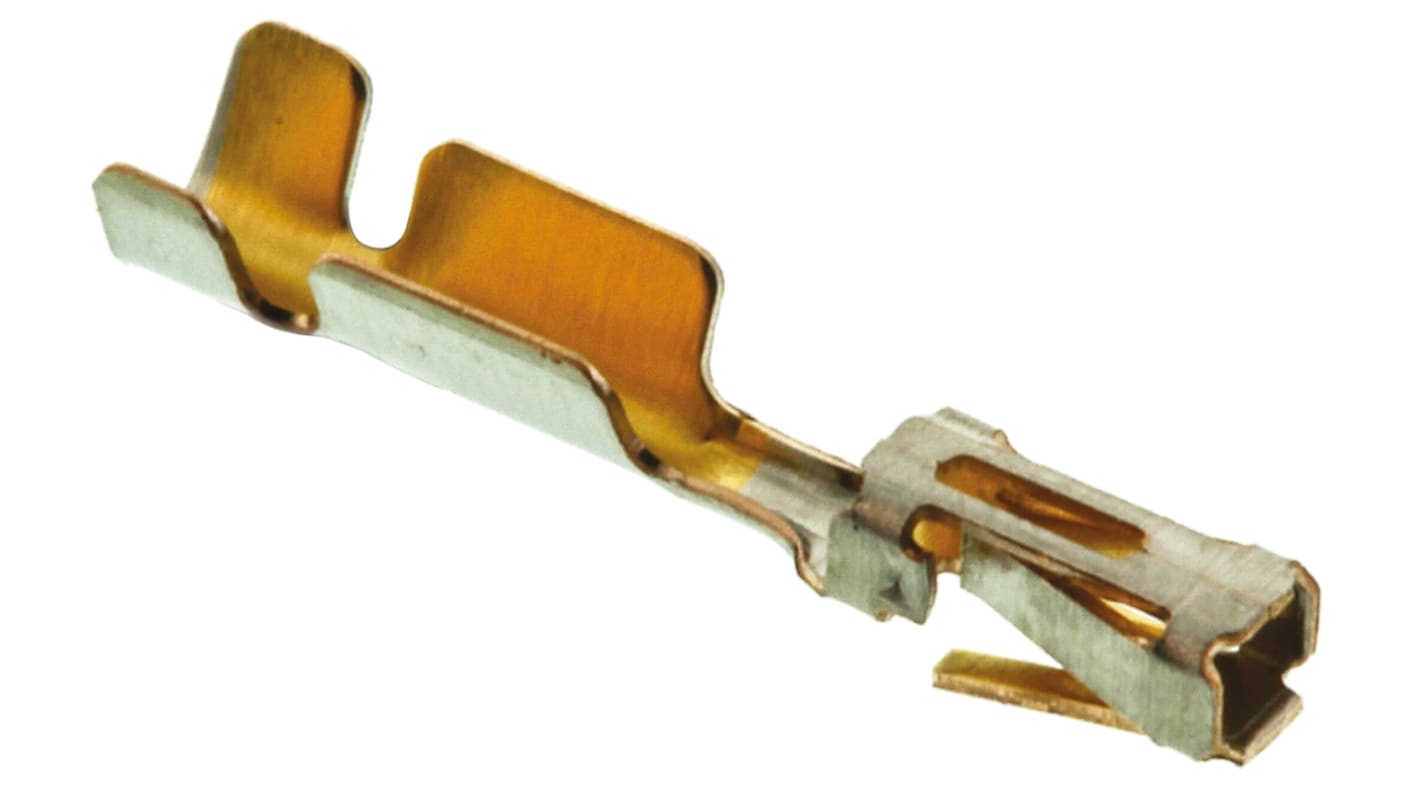

TE Connectivity, AMPMODU MOD IV Female Crimp Terminal Contact 20AWG 141603-4

Technical data sheets
Legislation and Compliance
Non Compliant
Product Details

Receptacle Crimp Contacts (Mod IV)

A range of Mod IV Receptacle Crimps for 30-28 or 26-22 awg wires:
233-1889 :30-28 AWG, Gold plated, standard pressure, loose.
233-1895 :26-22 AWG, Gold plated, standard pressure, loose.
495-8931 :30-28 AWG, Gold plated, intermediate pressure, loose.
495-8947 :30-28 AWG, Tin plated, intermediate pressure, loose.
For use with shells which mate with shrouded headers, see stock number 509-2537 typical.
For a suitable crimp tool for loose contacts see Stock no. 233-0044 .

2.54 TE Connectivity AMPMODU™ IV Range–Style 3 (with SMD compatible shrouded headers)

A wire to board connector system offering the benefit of SMT process compatibility on the PCB mount shrouded headers

Specifications
Attribute Value
Gender Female
For Use With AMPMODU MOD IV Connector Housing
Series AMPMODU MOD IV
Minimum Wire Size mm² 0.519mm²
Termination Method Crimp
Maximum Wire Size mm² 0.5mm²
Contact Plating Gold
Minimum Wire Size AWG 26AWG
Maximum Wire Size AWG 20AWG
Contact Material Phosphor Bronze
Maximum Contact Resistance 12mΩ
Minimum Operating Temperature -65°C
Maximum Operating Temperature +105°C
27200 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 100)
MYR 1.446
units
Per unit
Per Pack*
100 - 900
MYR1.446
MYR144.60
1000 - 2900
MYR1.271
MYR127.10
3000 - 7400
MYR1.065
MYR106.50
7500 - 14900
MYR0.958
MYR95.80
15000 +
MYR0.885
MYR88.50
*price indicative
Packaging Options:
