Amphenol FCI, Minitek Female Crimp Terminal Contact 26AWG 77138-101LF

  • RS Stock No. 170-8830
  • Mfr. Part No. 77138-101LF
  • Manufacturer Amphenol FCI
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

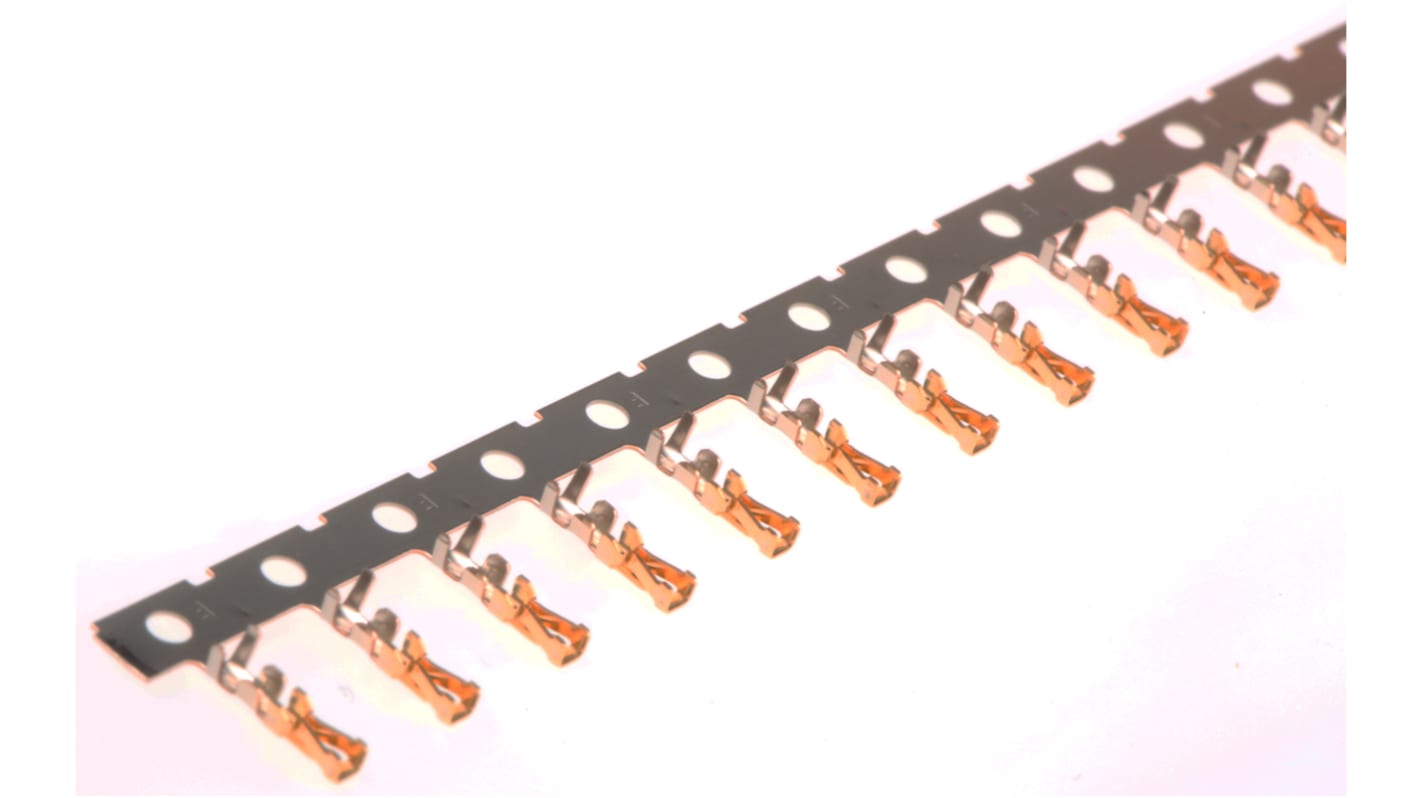

2.00 mm Amphenol FCI Minitek™ Crimp Contact

Amphenol FCI Minitek™ Crimp Contact 2.00mm female socket crimp for use within the Minitek range of CTW active latch housings, see stock number 673-7616 typical.

Phosphor Bronze Material
Gold plating thickness on contact area: 714-2404 has 0.76 μm and 771-0114 has 0.2 μm, remainder Gold Flash
Wire range 26-30 AWG

Note

For Hand Crimp Tool see stock number 721-2575 .

2.0mm Amphenol FCI Basics+ Connectors, Headers and Minitek™

2.0mm Amphenol FCI Basics+ Connectors, Headers and Minitek™ Basics+ Connectors, Headers and Minitek™ is a 2 mm system range offering up to 38% space saving compared to 2.54 mm connector systems.

Fully intermateable across the Minitek™ Headers and Connectors range

Specifications
Attribute Value
Gender Female
For Use With Minitek Connector Housing
Series Minitek
Termination Method Crimp
Contact Plating Gold
Minimum Wire Size AWG 30AWG
Maximum Wire Size AWG 26AWG
Contact Material Phosphor Bronze
Maximum Contact Resistance 20mΩ
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Temporarily out of stock - back order for despatch 17/12/2020, delivery within 4 working days from despatch date
Price Each (On a Reel of 20000)
Was MYR0.373
MYR 0.332
units
Per unit
Per Reel*
20000 +
MYR0.332
MYR6,640.00
*price indicative
