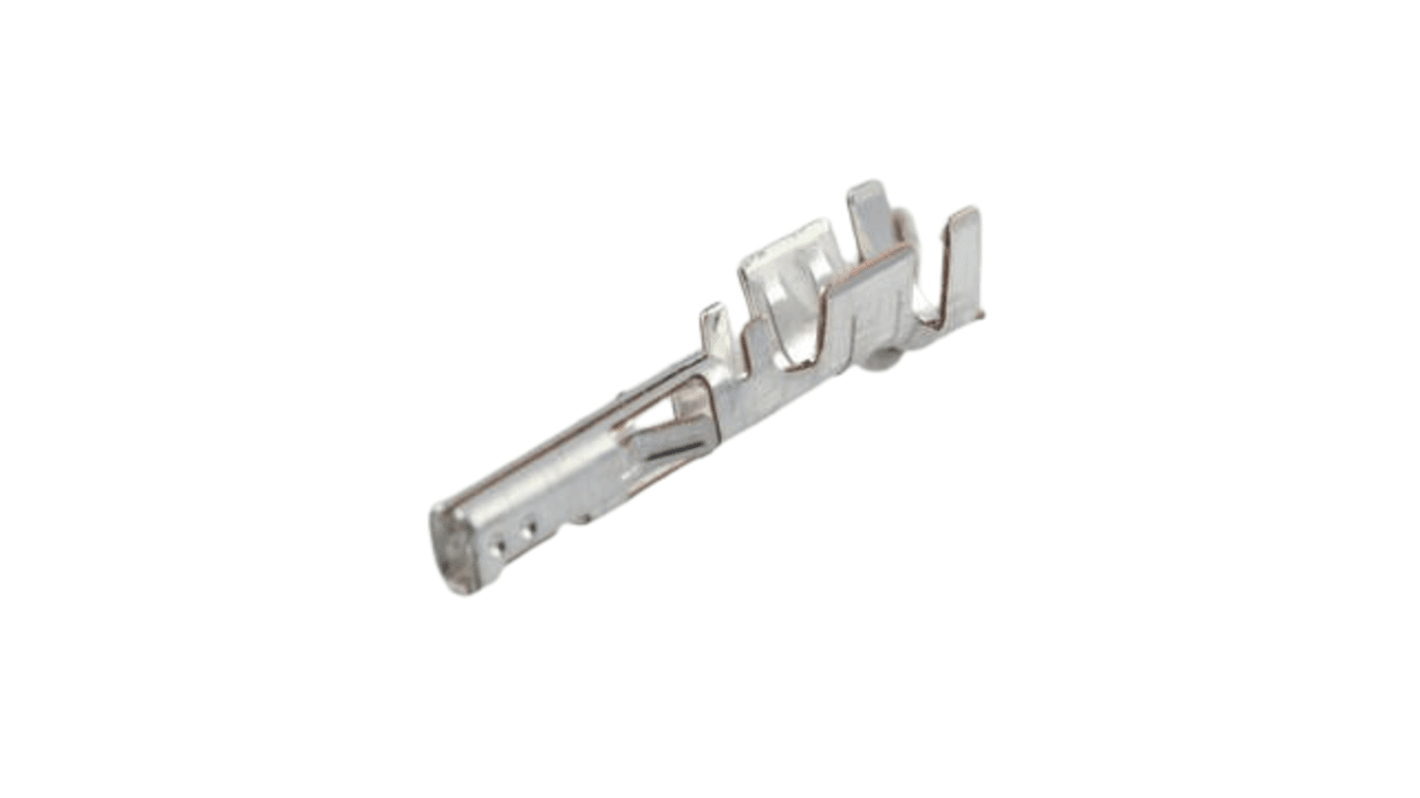

Molex, Micro-Fit 3.0 Female Crimp Terminal Contact 26AWG 43030-0004

  • RS Stock No. 170-7277
  • Mfr. Part No. 43030-0004
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

Molex Micro-Fit 3.0 Series

Specifications
Attribute Value
Gender Female
For Use With Micro-Fit 3.0 and Micro-Fit BMI Connector Housings
Series Micro-Fit 3.0
Minimum Wire Size mm² 0.05mm²
Maximum Wire Size mm² 0.1mm²
Termination Method Crimp
Minimum Wire Size AWG 30AWG
Contact Plating Tin
Maximum Wire Size AWG 26AWG
Contact Material Phosphor Bronze
Series Number 43030
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
156000 In Global stock for delivery within 4 - 6 working days
Price Each (On a Reel of 12000)
Was MYR0.141
MYR 0.131
units
Per unit
Per Reel*
12000 +
MYR0.131
MYR1,572.00
*price indicative
