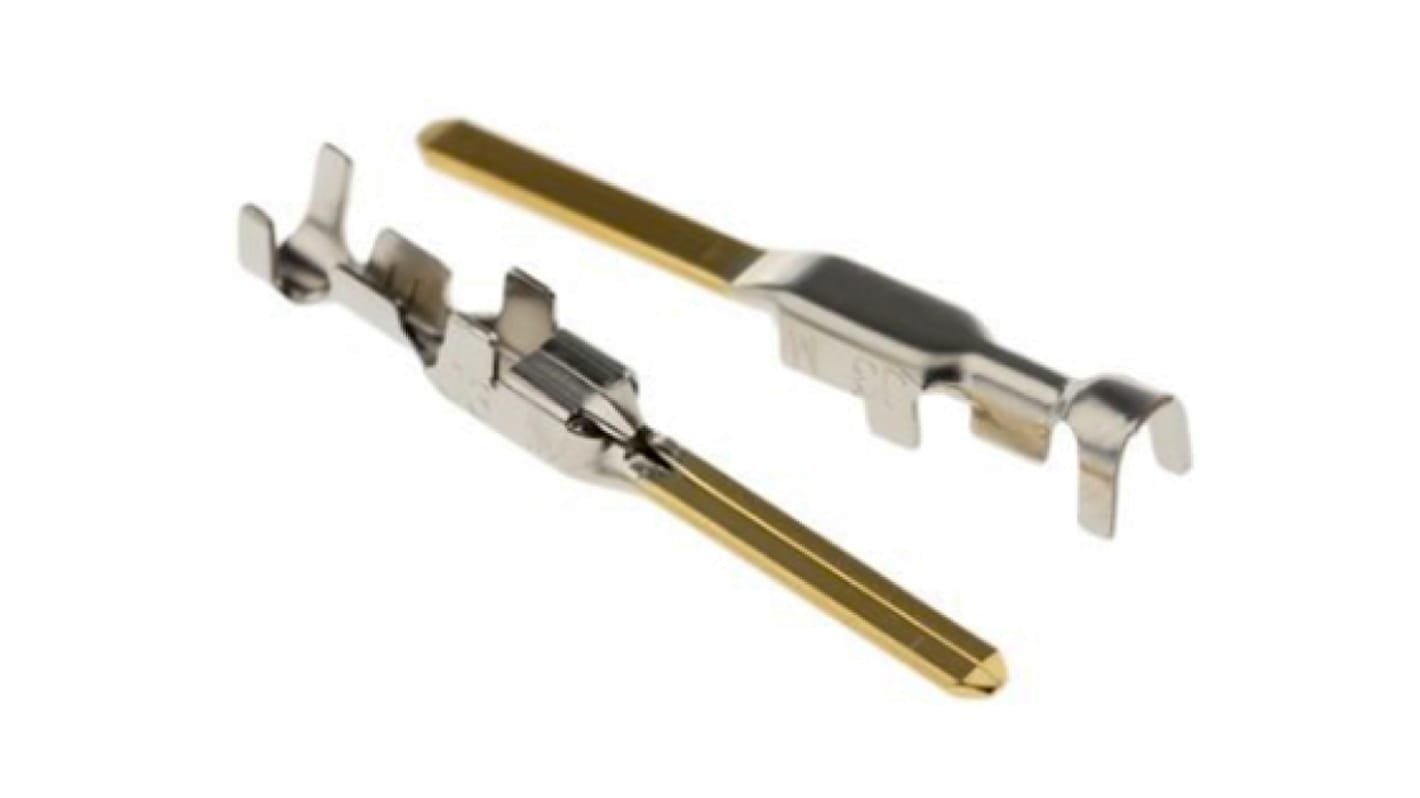

JST J300 Series Male Crimp Terminal, 20AWG Min, 16AWG Max
- RS Stock No.:
- 161-3221
- Mfr. Part No.:
- LF3M-41GF-M2.0N
- Manufacturer:
- JST
3000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Box of 1000)
MYR0.917
| Units | Per Unit | Per Box* |
| 1000 - 4000 | MYR0.917 | MYR917.00 |
| 5000 + | MYR0.825 | MYR825.00 |
| *price indicative | ||
- RS Stock No.:
- 161-3221
- Mfr. Part No.:
- LF3M-41GF-M2.0N
- Manufacturer:
- JST
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Available in both wire-to-board and wire-to-wire connection, the JFA connector is applicable to a wide range of applications e.g. from signal to output circuits.
Double-spring construction
Housing Lances
Clear Click Feeling
Housing Lances
Clear Click Feeling
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| For Use With | J300 JFA Connector Housing |
| Series | J300 |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Termination Method | Crimp |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 20AWG |
| Contact Material | Copper Alloy |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 5 mΩ, 10 mΩ |
| Maximum Current | 14A |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
