1718250100 Molex Super Sabre Female Crimp Terminal Contact 10AWG

  • RS Stock No. 144-8180
  • Mfr. Part No. 1718250100
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

This Product Specification covers the 7.50 mm (.295 inch) centerline Super-Sabre connector system with silver plating and 10 to 12 AWG wire, 4mm2 Cu-R4TPE 19 x 0.53mm wire and 5mm2 Cu-H1PVC 65 x 0.32mm wire using crimp technology.

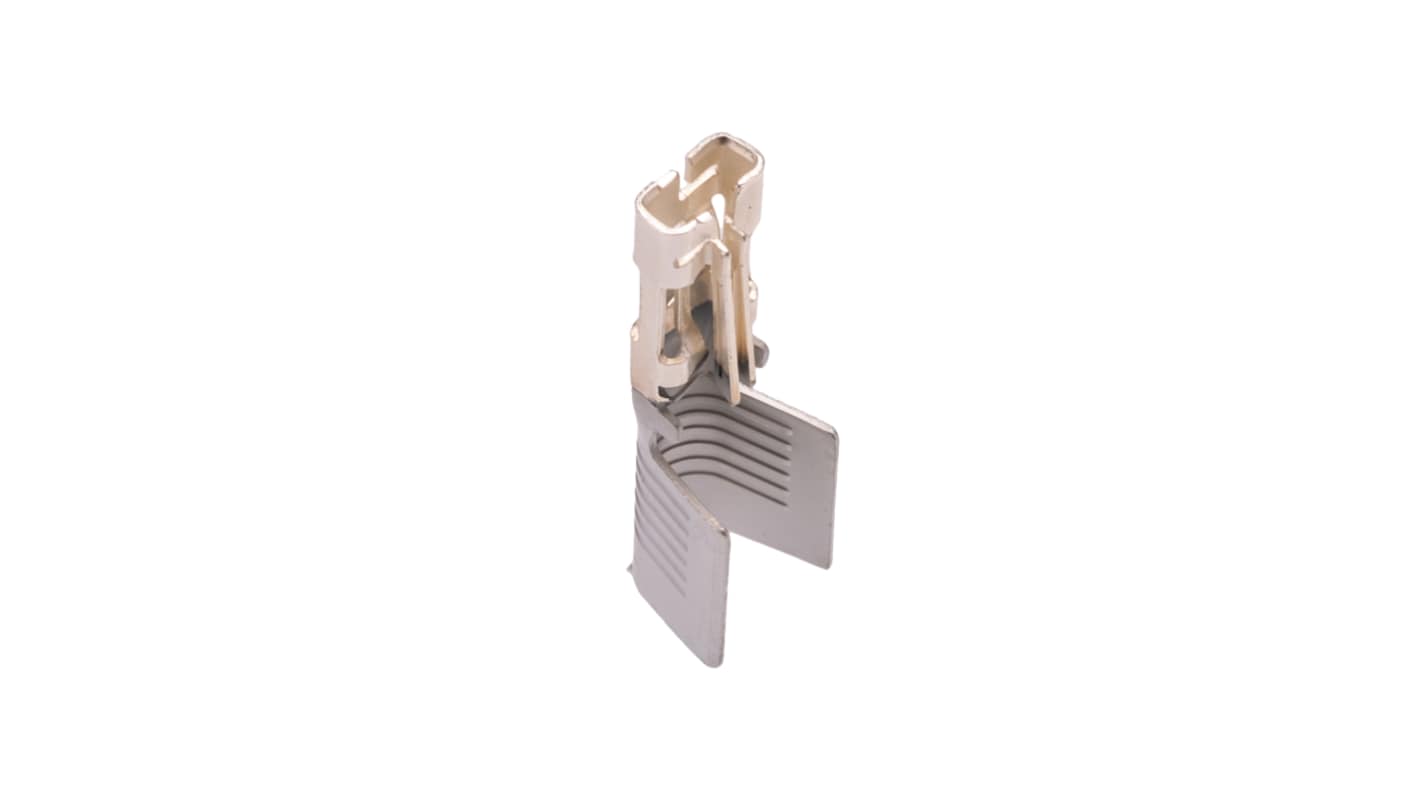

Super Sabre™ Female Crimp Terminal

Specifications
Attribute Value
Gender Female
For Use With Super Sabre Connector Housing
Series Super Sabre
Minimum Wire Size mm² 4mm²
Termination Method Crimp
Maximum Wire Size mm² 5mm²
Minimum Wire Size AWG 12AWG
Contact Plating Silver
Contact Material Copper
Maximum Wire Size AWG 10AWG
Series Number 171825
Maximum Contact Resistance 2.5mΩ
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
7880 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR5.95
MYR 4.05
units
Per unit
1 - 9
MYR4.05
10 - 49
MYR3.81
50 - 99
MYR3.48
100 - 499
MYR3.30
500 +
MYR2.97
