TE Connectivity Commercial MATE-N-LOK Series Female Crimp Terminal, 17AWG Min, 13AWG Max

RS Stock No.:: 520-377
Mfr. Part No.:: 163306-2
Manufacturer:: TE Connectivity

TE Connectivity Commercial MATE-N-LOK Series Female Crimp Terminal, 17AWG Min, 13AWG Max

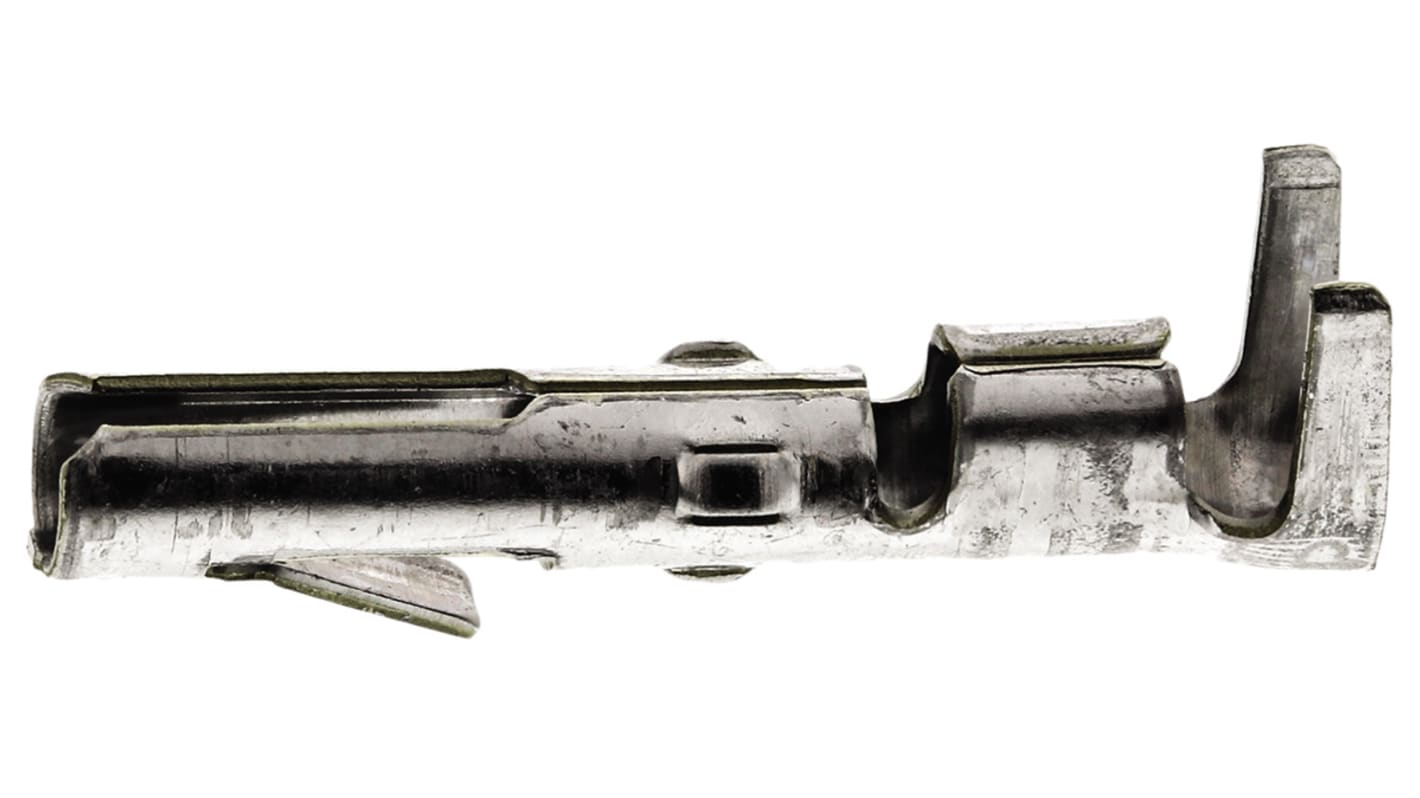

This image is representative of the product range

400 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

9000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Pack of 100)

MYR1.581

Units	Per Unit	Per Pack*
100 - 200	MYR1.581	MYR158.10
300 - 400	MYR1.547	MYR154.70
500 +	MYR1.501	MYR150.10
*price indicative

RS Stock No.:: 520-377
Mfr. Part No.:: 163306-2
Manufacturer:: TE Connectivity

Technical data sheets

Legislation and Compliance

Product Details

TE Connectivity Commercial MATE-N-LOK Pin and Socket Contacts

Commercial MATE-N-LOK pin and socket contacts for use in Commercial MATE-N-LOK connector housings. The 'clean' design of these contacts ensures there are no sharp projections to impede insertion or damage the housings. These Commercial MATE-N-LOK contacts are suitable for wire size ranges from 30 AWG to 14 AWG and are available with gold or tin plating.

Note

For a suitable Tool frame see stock number 849-114 and a suitable die set see stock number 361-9584.
Also use crimp frame 849-136 for smaller diameter insulation on cable 1.02 to 2.54 mm.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

TE Connectivity Commercial MATE-N-LOK Range

Specifications

Attribute	Value
Gender	Female
For Use With	Commercial MATE-N-LOK Connector Housing
Series	Commercial MATE-N-LOK
Minimum Wire Size mm²	1mm²
Termination Method	Crimp
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	17AWG
Contact Plating	Tin
Contact Material	Brass
Maximum Wire Size AWG	13AWG
