Interroll Round Conveyor Roller Spring Loaded 40mm Dia. x 750mm L, 3000N Load Capacity, 10mm Spindle, 776mm Overall
- RS Stock No.:
- 761-3186
- Mfr. Part No.:
- RD-17W1JF4EAB RL750
- Manufacturer:
- Interroll
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR154.47
| Units | Per Unit |
| 1 + | MYR154.47 |
- RS Stock No.:
- 761-3186
- Mfr. Part No.:
- RD-17W1JF4EAB RL750
- Manufacturer:
- Interroll
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

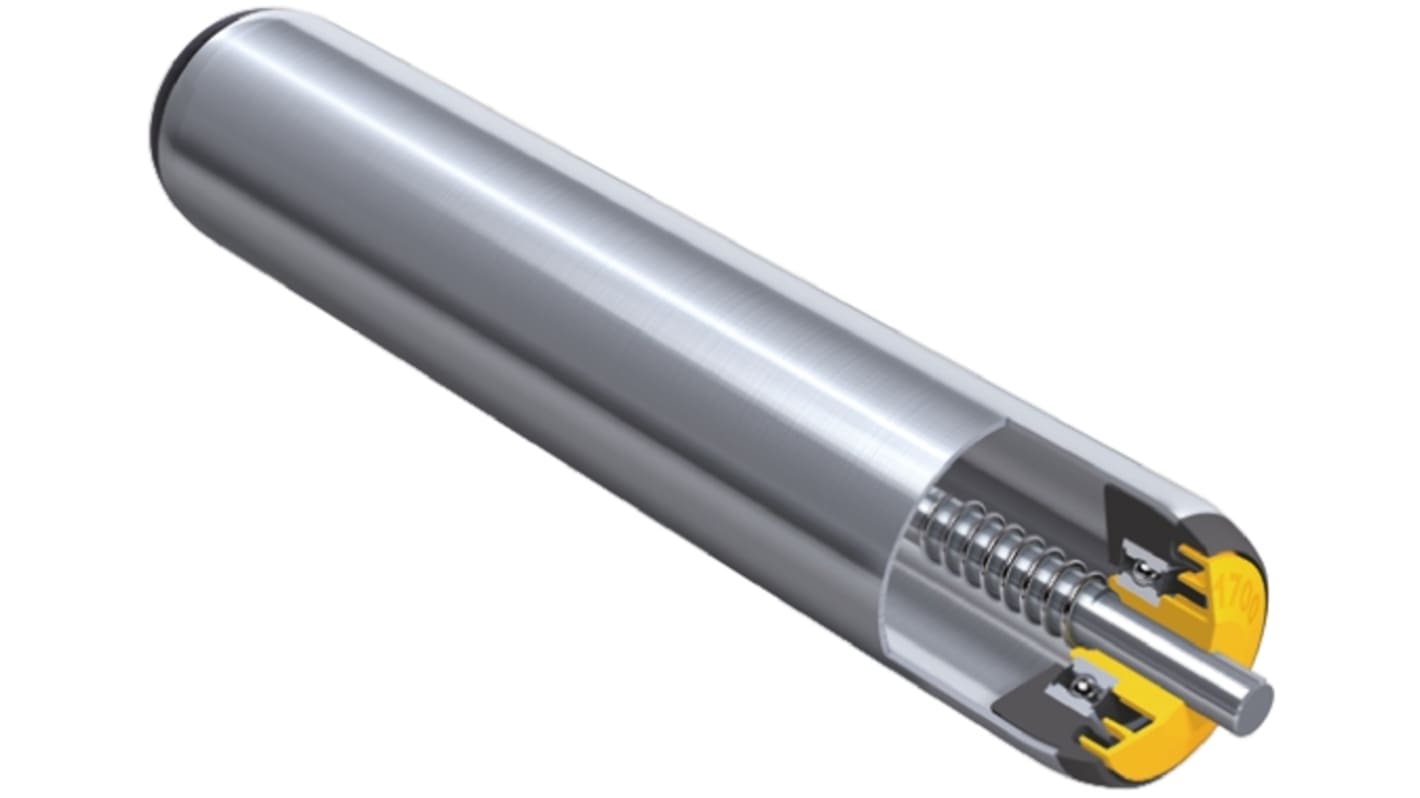

Interroll Series 1700 Universal Conveyor Roller
Tried and tested a million times over - universal roller with an extensive range of applications
Silent conveyor roller - Precision ball bearing, technopolymer bearing housing and seal
Protects the ball bearing from coarse dirt and water- Integral water-repellent groove
Axial loads are possible - axial forces diverted by ball bearing
Gentle lateral pushing of the materials to be conveyed- rounded tube ends
Silent conveyor roller - Precision ball bearing, technopolymer bearing housing and seal
Protects the ball bearing from coarse dirt and water- Integral water-repellent groove
Axial loads are possible - axial forces diverted by ball bearing
Gentle lateral pushing of the materials to be conveyed- rounded tube ends
Applications:
Properties:
In-house conveyor technology
Driven conveyors for packaged goods
Transport of tyres and rims
Driven conveyors for packaged goods
Transport of tyres and rims
Sealed precision ball bearings (6002 2RZ, 6003 2RZ, 689 2Z)
Form-fit axial fixing of bearing housing, ball bearing and seal
Form-fit axial fixing of bearing housing, ball bearing and seal
Specifications
Attribute | Value |
|---|---|
| Roller Length | 750mm |
| Roller Diameter | 40mm |
| Spindle Size | 10mm |
| Inside Frame Width | 760mm |
| Load Capacity | 3000N |
| Spindle Shape | Round |
| Fixing Type | Spring Loaded |
| Overall Length | 776mm |
