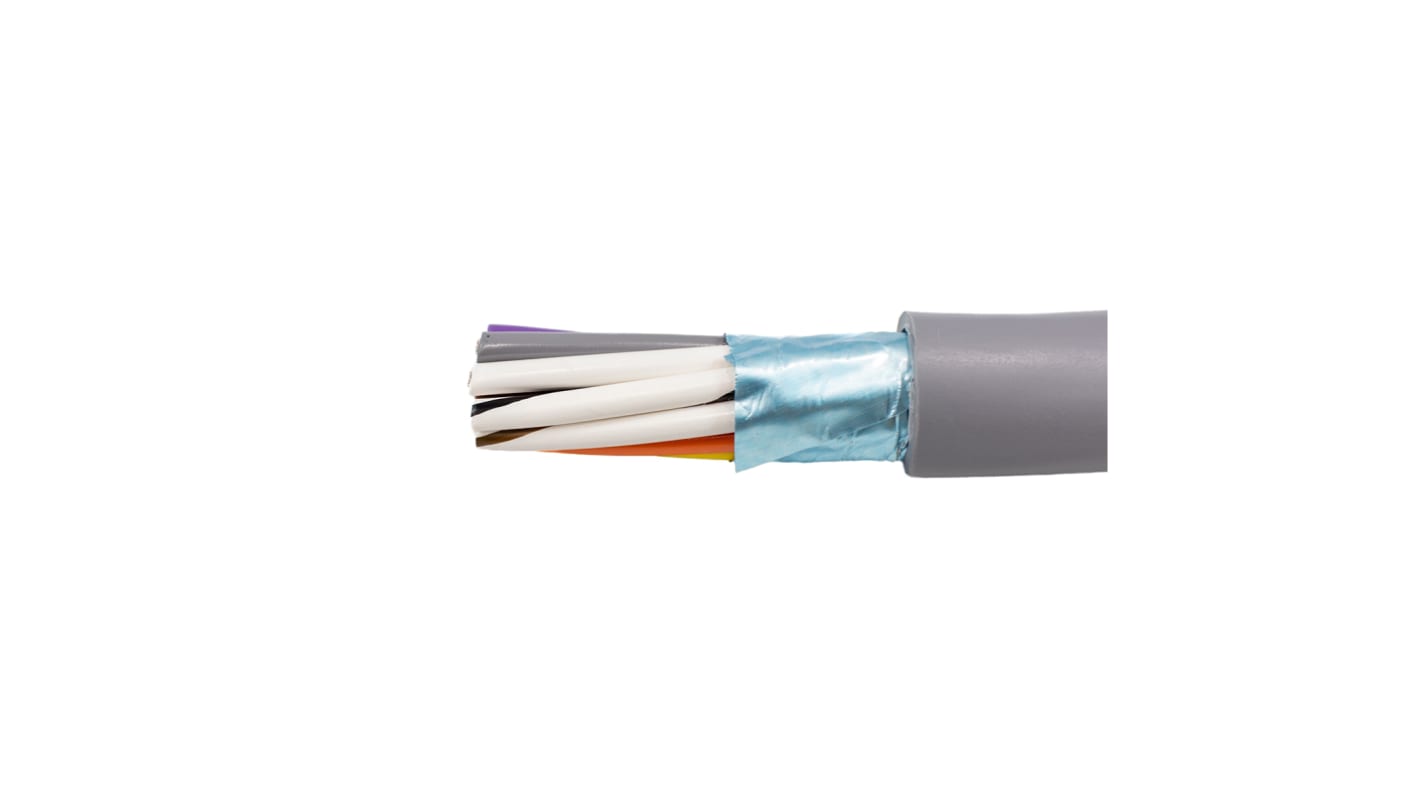

Alpha Wire Alpha Essentials Communication & Control Control Cable, 12 Cores, Screened, 305m, Grey PVC Sheath, 24 AWG
- RS Stock No.:
- 187-1894
- Mfr. Part No.:
- 1219/12C SL001
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 305 metres)**
MYR4,952.29
Temporarily out of stock - back order for despatch 01/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Reel** |
|---|---|---|
| 305 + | MYR16.237 | MYR4,952.285 |
**price indicative
- RS Stock No.:
- 187-1894
- Mfr. Part No.:
- 1219/12C SL001
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Alpha Essentials Communication & Control | |
| Number of Cores | 12 | |
| American Wire Gauge | 24 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Screened | |
| Screen Type | Aluminium Foil | |
| Minimum Bend Radius | 10 x Cable Diameter | |
| Length | 305m | |
| Outer Diameter | 6.75mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +80°C | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -20°C | |
| Drain Wire | Yes | |
| Core Strands | 7/32 AWG | |
| Conductor Resistance | 26 Ω | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 12 | ||
American Wire Gauge 24 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screened/Unscreened Screened | ||
Screen Type Aluminium Foil | ||
Minimum Bend Radius 10 x Cable Diameter | ||
Length 305m | ||
Outer Diameter 6.75mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +80°C | ||
Insulation Material PVC | ||
Minimum Operating Temperature -20°C | ||
Drain Wire Yes | ||
Core Strands 7/32 AWG | ||
Conductor Resistance 26 Ω | ||
