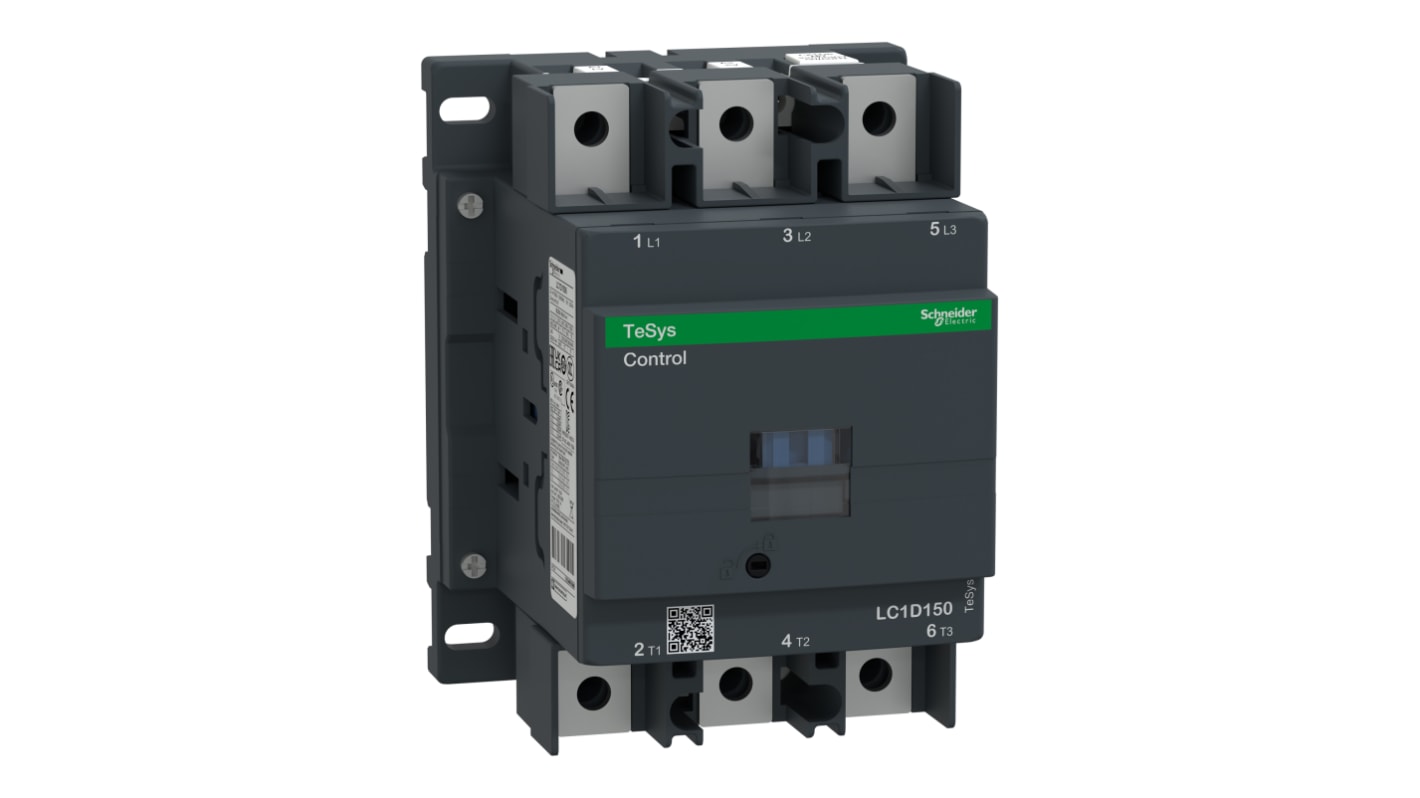

Schneider Electric LC1D Series Contactor, 220 V ac Coil, 3-Pole, 150 A, 3NO, 1 kV ac, 690 V dc
- RS Stock No.:
- 744-7257
- Mfr. Part No.:
- LC1D1506M7
- Manufacturer:
- Schneider Electric
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR2,973.06
You pay
MYR2,824.41
| Units | Per Unit |
| 1 + | MYR2,824.41 |
- RS Stock No.:
- 744-7257
- Mfr. Part No.:
- LC1D1506M7
- Manufacturer:
- Schneider Electric
Legislation and Compliance
Product Details
3 pole Contactors, AC Controlled, over 18kW power rating
TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.
Features and Benefits.
Utilisation category AC3
415Vac switching voltage
3 pole NO
415Vac switching voltage
3 pole NO
What does the utilisation category AC1 and AC3 mean for the TeSys contactors?
- Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
- AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
- AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
What accessories are available?
- Auxiliary contact blocks with serrated wiping action.
- Front mount dust tight auxiliary contact blocks.
- Pneumatic time delay blocks.
- Transient voltage surge suppressors.
- Interface modules and electronic timers.
- Mechanical latching blocks.
Is the TeSys D range a double break pole type contactor?
- Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles.
LC1D1506M7 Schneider Electric LC1D TeSys D Contactor Features.
- Motor Control and Resistive load applications.
- AC-1, AC-3 category.
- Ue Rated voltage <= 690 V DC for power circuit <= 1000 V AC 25...400 Hz for power circuit.
- Rated current 200 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit, 150 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit.
- 220 V AC 50/60 Hz Control circuit voltage.
- 1 NO + 1 NC auxiliary contact.
- Overvoltage category III.
- Rated breaking capacity 1400 A at 440 V for power circuit conforming to IEC 60947.
- Complete with a protective cover.
- Plate and Rail mounting.
- IP2x front face conforming to IEC 60529.
Approvals
BV, CCC, CSA, DNV, GL, GOST, RINA, UL, LROS.
Standards
EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Voltage Rating | 1 kV ac, 690 V dc |
| Contact Current Rating | 150 A |
| Range | TeSys D |
| Series | LC1D |
| Normal State Configuration | 3NO |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Number Of Auxiliary Contacts | 2 |
| Terminal Type | Lug Ring Terminal / Bus Bar |
| Width | 120mm |
| Length | 158mm |
| Depth | 136mm |
| Better World Product | Yes |
| Better World Verification | Green Premium |
