Siemens 3RT2 Series Contactor, 24 V dc Coil, 3-Pole, 16 A, 7.5 kW, 3NO, 400 V ac

RS Stock No.:: 706-1263
Mfr. Part No.:: 3RT2018-2BB42
Manufacturer:: Siemens

Siemens 3RT2 Series Contactor, 24 V dc Coil, 3-Pole, 16 A, 7.5 kW, 3NO, 400 V ac

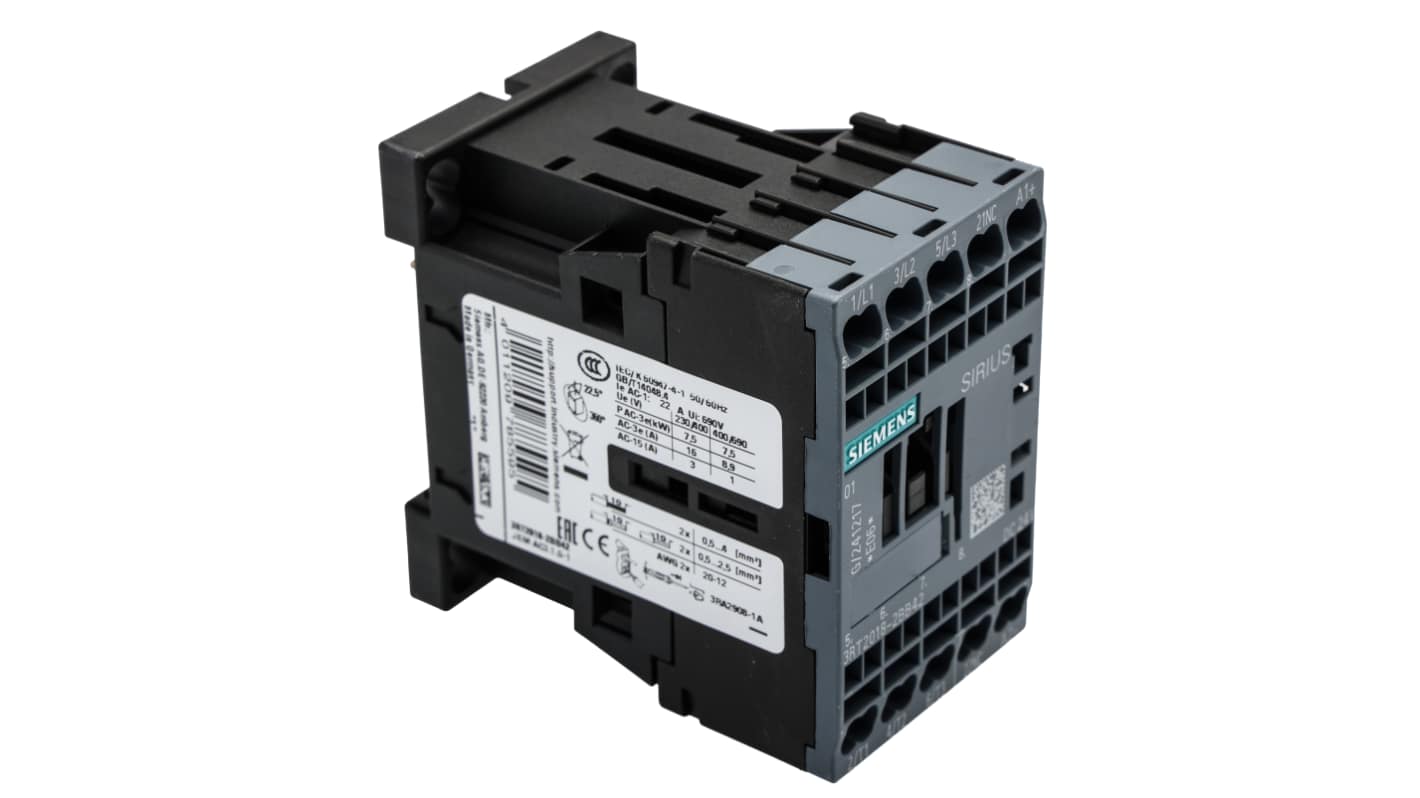

This image is representative of the product range

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

16 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR558.49

Units	Per Unit
1 +	MYR558.49

RS Stock No.:: 706-1263
Mfr. Part No.:: 3RT2018-2BB42
Manufacturer:: Siemens

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Contactors – 3RT2 Range

The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW

Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

Note

Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.

Approvals

CE, UL, CSA, CCC

Siemens Sirius Range Contactor & Control Relays

Specifications

Attribute	Value
Coil Voltage	24 V dc
Number of Poles	3
Contact Voltage Rating	400 V ac
Contact Current Rating	16 A
Power Rating	7.5 kW
Range	SIRIUS
Series	3RT2
Normal State Configuration	3NO
Number Of Auxiliary Contacts	1
Terminal Type	Cage Clamp
Width	45mm
Length	70mm
Depth	73mm
Better World Product	Yes
Better World Claim	Low carbon manufacture
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
