Select all	Attribute	Value
	Brand	Siemens
	Coil Voltage	24 V dc
	Number of Poles	4
	Contact Voltage Rating	690 V ac
	Contact Current Rating	10 A
	Series	3RH2
	Range	SIRIUS
	Normal State Configuration	2NO + 2NC
	Number Of Auxiliary Contacts	4
	Auxiliary Contact Configuration	2NO + 2NC
	Terminal Type	Screw
	Length	57.5mm
	Width	45mm
	Depth	73mm
	Control Voltage	24 V dc
	Maximum Operating Temperature	+50°C
	Mounting Style	DIN Rail
	Minimum Operating Temperature	-25°C
	Load Current	10A
	Load Voltage	690V ac

	Select all
	Brand Siemens
	Coil Voltage 24 V dc
	Number of Poles 4
	Contact Voltage Rating 690 V ac
	Contact Current Rating 10 A
	Series 3RH2
	Range SIRIUS
	Normal State Configuration 2NO + 2NC
	Number Of Auxiliary Contacts 4
	Auxiliary Contact Configuration 2NO + 2NC
	Terminal Type Screw
	Length 57.5mm
	Width 45mm
	Depth 73mm
	Control Voltage 24 V dc
	Maximum Operating Temperature +50°C
	Mounting Style DIN Rail
	Minimum Operating Temperature -25°C
	Load Current 10A
	Load Voltage 690V ac

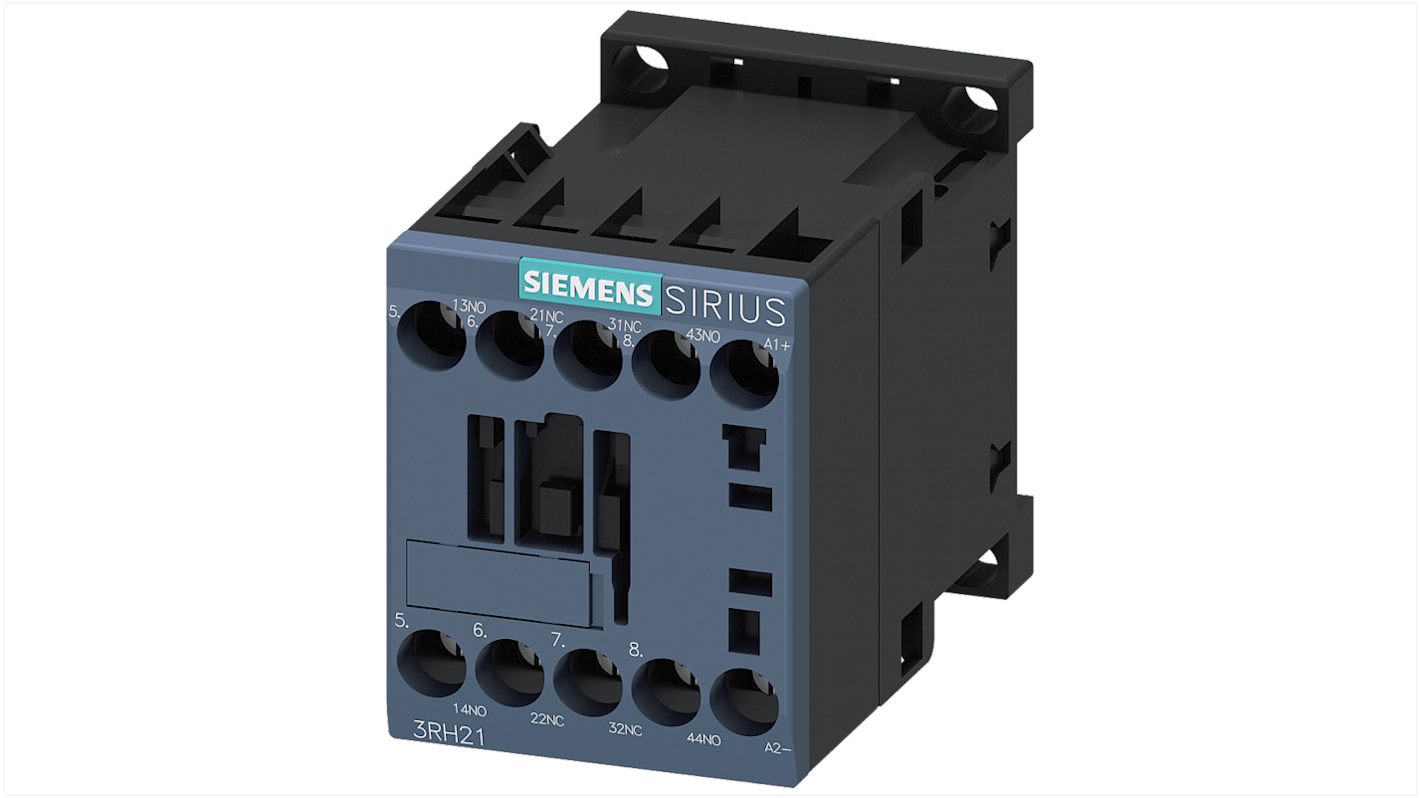

Siemens SIRIUS 3RH2 Contactor Relay, 24 V dc Coil, 4-Pole, 10 A, 2NO + 2NC, 690 V ac

FREE delivery for orders over MYR500.00

Siemens 3RH2 Series Contactor Relay, 24V DC Coil Voltage, 10A Current Rating - 3RH2122-1MB40-0KT0

Features & Benefits

Applications

How does the contactor relay ensure long-lasting performance?

What is the significance of the 2NO + 2NC configuration?

What type of connections are compatible with this relay?

In what conditions can this relay operate effectively?

What are the advantages of using a 24V DC coil voltage?
