Adaptaflex Flexible, Liquid Tight Conduit, 20mm Nominal Diameter, Galvanised Steel, Black
- RS Stock No.:
- 904-6507
- Mfr. Part No.:
- SPL-EF20/50M
- Manufacturer:
- Adaptaflex
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 904-6507
- Mfr. Part No.:
- SPL-EF20/50M
- Manufacturer:
- Adaptaflex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Adaptaflex | |
| Nominal Diameter | 20mm | |
| Material | Galvanised Steel | |
| Conduit Type | Flexible, Liquid Tight | |
| Series | SPL-EF | |
| Outer Diameter | 21.1mm | |
| Colour | Black | |
| Interior Diameter | 15.9mm | |
| Length | 50m | |
| IP Rating | IP40, IP65, IP66, IP67, IP68, IP69K | |
| Coating Material | Enhanced Low Fire Hazard Thermoplastic | |
| Maximum Operating Temperature | +150°C | |
| Standards Met | CE Compliant, VDE | |
| Minimum Operating Temperature | -40°C | |
| Minimum Bend Radius | 80 mm | |
| Select all | ||
|---|---|---|
Brand Adaptaflex | ||
Nominal Diameter 20mm | ||
Material Galvanised Steel | ||
Conduit Type Flexible, Liquid Tight | ||
Series SPL-EF | ||
Outer Diameter 21.1mm | ||
Colour Black | ||
Interior Diameter 15.9mm | ||
Length 50m | ||
IP Rating IP40, IP65, IP66, IP67, IP68, IP69K | ||
Coating Material Enhanced Low Fire Hazard Thermoplastic | ||
Maximum Operating Temperature +150°C | ||
Standards Met CE Compliant, VDE | ||
Minimum Operating Temperature -40°C | ||
Minimum Bend Radius 80 mm | ||
- COO (Country of Origin):
- GB

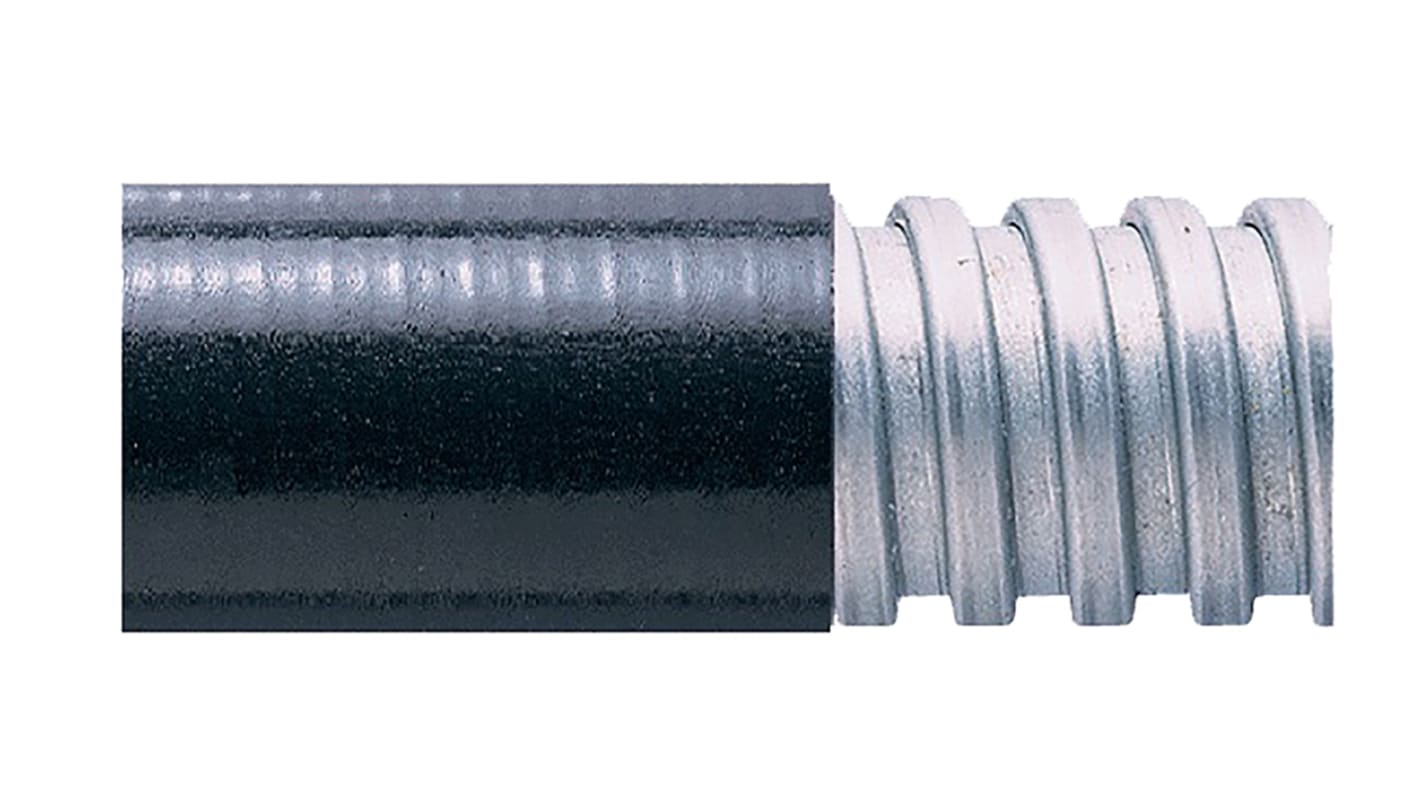

Adaptaflex Type SPL-EF Low Fire Hazard, Liquid Tight, Oil Resistant, Covered Steel Conduit
Enhanced low fire hazard, liquid tight, oil resistant covered steel conduit. EN45545-2 HL3 approved for interior and exterior use.
Suitable for use in the following environments: extreme temperature, low temperature flexing, rail, rail interior, rail exterior, safety critical environments and underground.
Suitable for use in the following environments: extreme temperature, low temperature flexing, rail, rail interior, rail exterior, safety critical environments and underground.
Low Fire Hazard Sheathing
Approved for use in railway applications, both interior and exterior
Galvanised steel core
LFH thermoplastic covering
Very high UV protection
Black finish
IP Ratings: IP66, IP67, IP68, IP69k
Approved for use in railway applications, both interior and exterior
Galvanised steel core
LFH thermoplastic covering
Very high UV protection
Black finish
IP Ratings: IP66, IP67, IP68, IP69k
Approvals
Fire test standard: EN45545-2 UL94
Fire performance rating: HL-3 R22 & R23 V0 fire rating
Fire performance rating: HL-3 R22 & R23 V0 fire rating
Adaptaflex Metallic Systems
