RS PRO 50Ω Straight Cable Mount MCX ConnectorBulkhead Fitting, Plug, RG405

  • RS Stock No. 921-0221
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

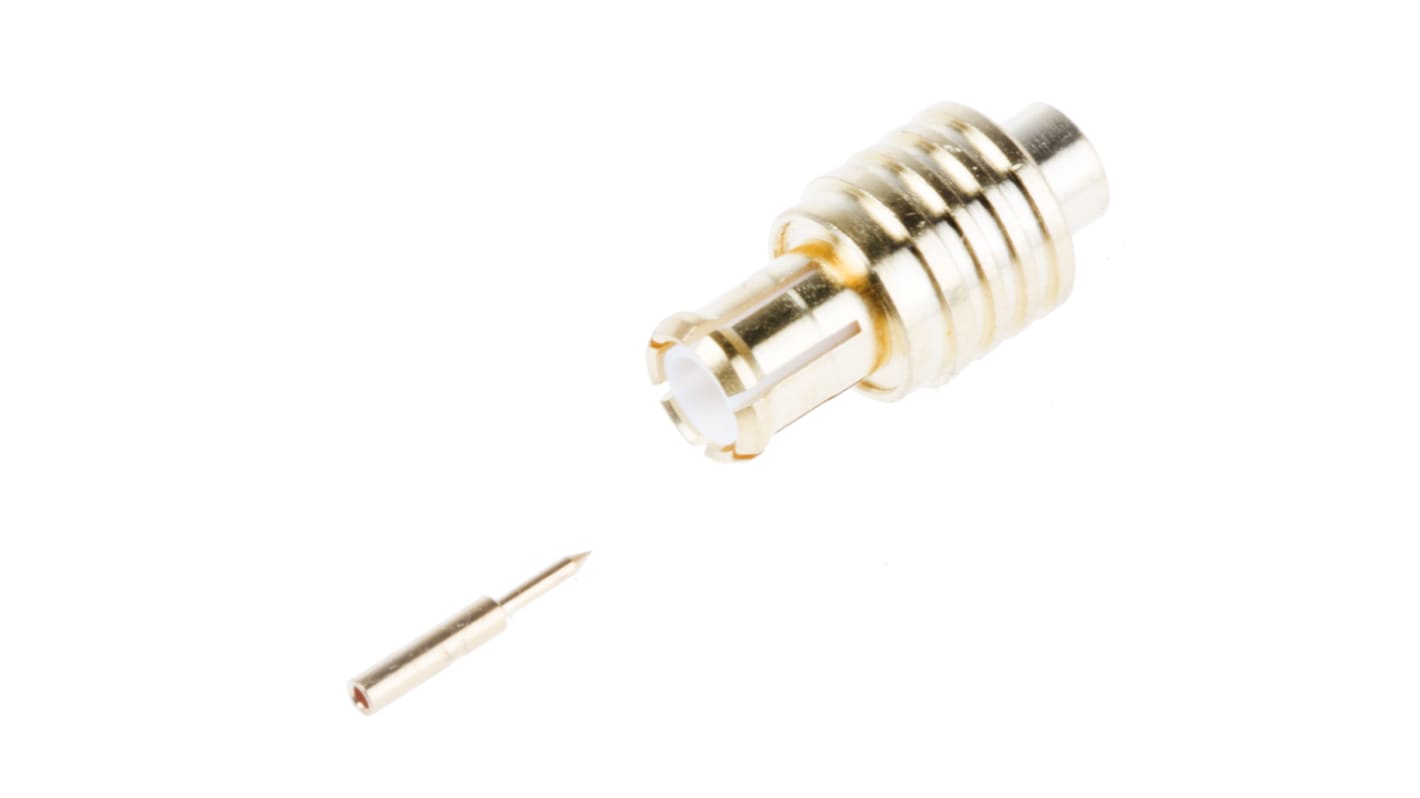

MCX Straight Plugs

From the trusted RS Pro brand, a series of 50 Ω MCX connectors. These MCX straight solder plugs have gold plated brass bodies and gold plated brass contacts. This high-quality range of MCX connectors are designed for use from DC to 6 GHz. Similar to SMB connectors, however they are 30% smaller in size making them ideal for space critical applications. Typically used in the mobile telecommunication and GPS markets.

Specifications
Attribute Value
Gender Male
Coaxial Connector Type MCX Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Straight
Cable Type RG405
Size Micro Miniature
Bulkhead Yes
Operating Frequency 0 to 6GHz
Body Plating Gold
Contact Material Brass
Contact Plating Gold
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 16.05
units
Per unit
1 - 9
MYR16.05
10 - 24
MYR15.89
25 - 49
MYR15.40
50 - 99
MYR15.05
100 +
MYR14.32
