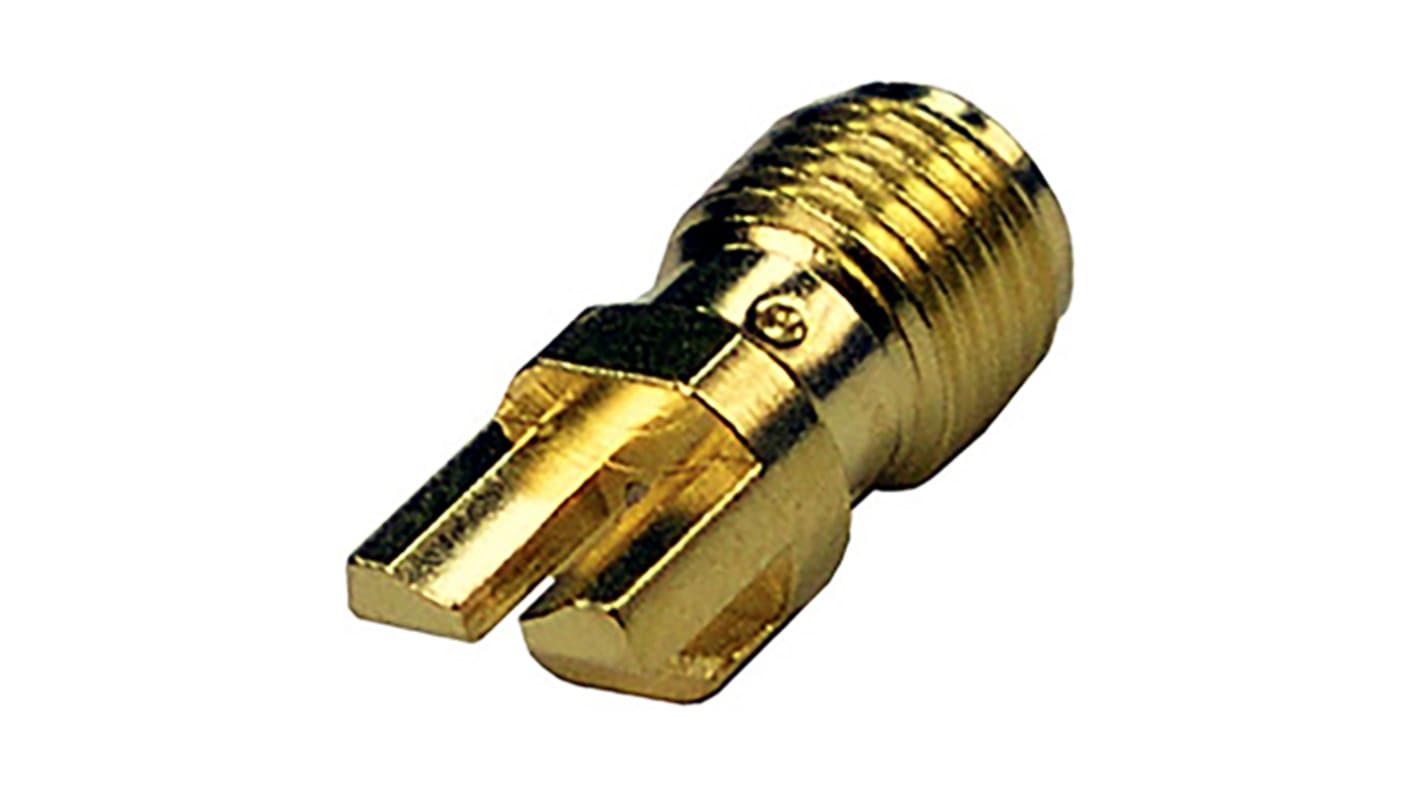

Cinch SMA HF Series, Jack Edge Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 886-1162
- Mfr. Part No.:
- 142-0761-891
- Manufacturer:
- Cinch
Subtotal (1 pack of 25 units)*
MYR1,313.475
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 + | MYR52.539 | MYR1,313.48 |
*price indicative
- RS Stock No.:
- 886-1162
- Mfr. Part No.:
- 142-0761-891
- Manufacturer:
- Cinch
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cinch | |
| Coaxial Connector Type | SMA Connector | |
| Gender | Female | |
| Mounting Type | Edge Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Bulkhead | No | |
| Operating Frequency | 0 to 26.5GHz | |
| Body Plating | Gold over Nickel | |
| Polarity | Normal | |
| Series | SMA HF | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Series Number | 142 | |
| Mating Type | Threaded | |
| Select all | ||
|---|---|---|
Brand Cinch | ||
Coaxial Connector Type SMA Connector | ||
Gender Female | ||
Mounting Type Edge Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Bulkhead No | ||
Operating Frequency 0 to 26.5GHz | ||
Body Plating Gold over Nickel | ||
Polarity Normal | ||
Series SMA HF | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Series Number 142 | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- US
SMA PCB Connectors
Cinch Connectivity range of professional grade SMA series RF coaxial PCB jacks and plugs have a stainless steel body and gold plated contact pin. The SMA series RF coaxial PCB jack and plug connectors are available in a variety of configurations to suit any application.
Max frequency – 12 GHz
Impedance - 50 Ohm
Operating temperature - 65°C to + 165°C
Impedance - 50 Ohm
Operating temperature - 65°C to + 165°C
Cinch Connectivity SMA Coaxial Connectors
