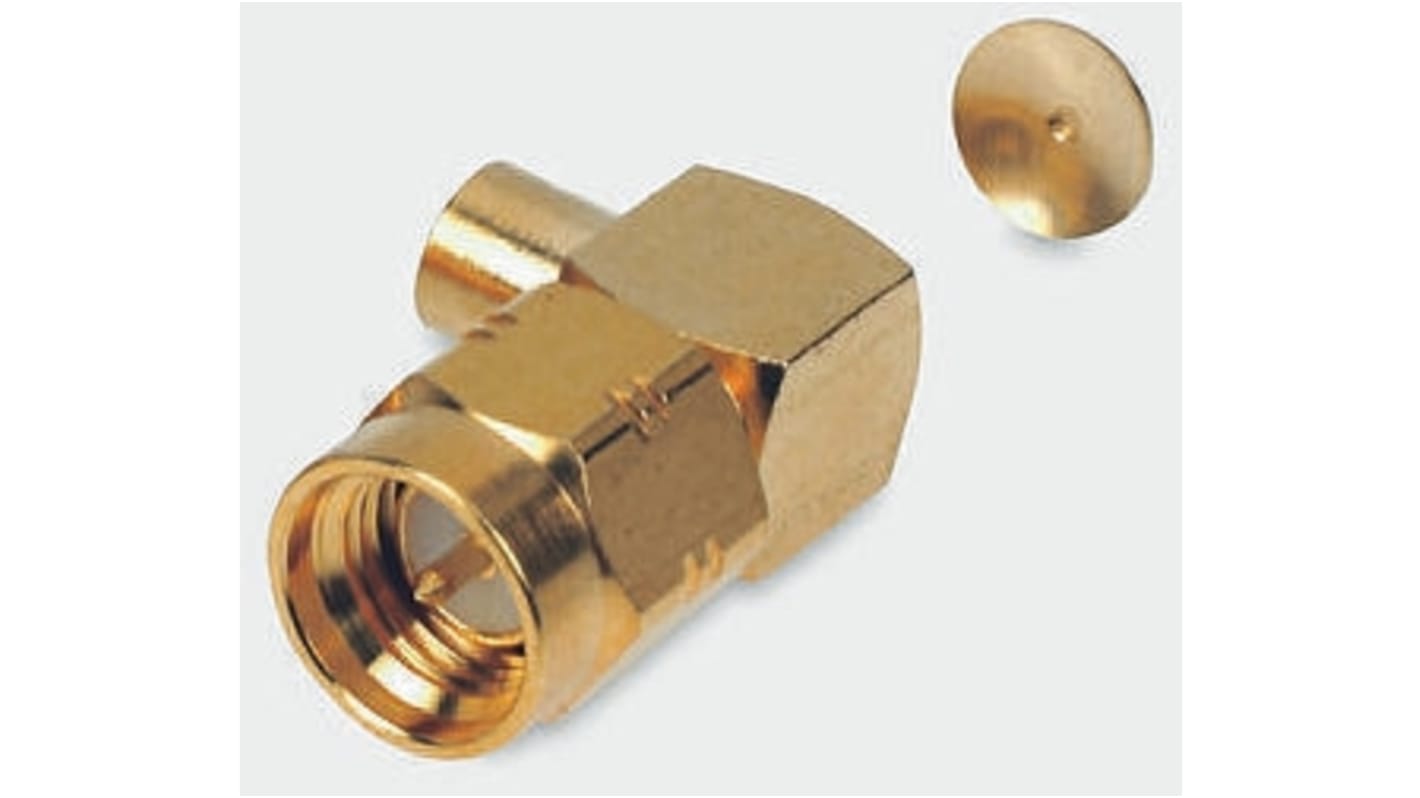

Radiall Right Angle 50Ω Cable Mount SMA Connector, Solder Termination RG402

  • RS Stock No. 414-1199
  • Mfr. Part No. R124154003W
  • Manufacturer Radiall
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

90° Plug Solder

//media.rs-online.com/t_line/L313662-01.gif

90°plug

Approvals

-

Radiall SMA Commercial

SMA crimp termination types for use with a variety of flexible and semi-rigid cables
Cable plugs in captive contact form for mechanical reliability in adverse conditions, or non-captive form for optimum electrical performance
Bulkhead and panel types have captive contacts
Centre contacts require soldering unless otherwise stated
Connectors are available in gold plated and white bronze plated brass
End terminations and attenuators are in nickel plated brass

Specifications
Attribute Value
Gender Male
Coaxial Connector Type SMA Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Right Angle
Cable Type RG402
Bulkhead No
Operating Frequency 0 → 12.4GHz
Body Plating Gold
Minimum Operating Temperature -65°C
Maximum Operating Temperature 105°C
Contact Material Brass
Contact Plating Gold over Copper
6 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 28.75
units
Per unit
1 - 14
MYR28.75
15 - 49
MYR27.74
50 - 99
MYR27.40
100 - 249
MYR26.59
250 +
MYR25.95
