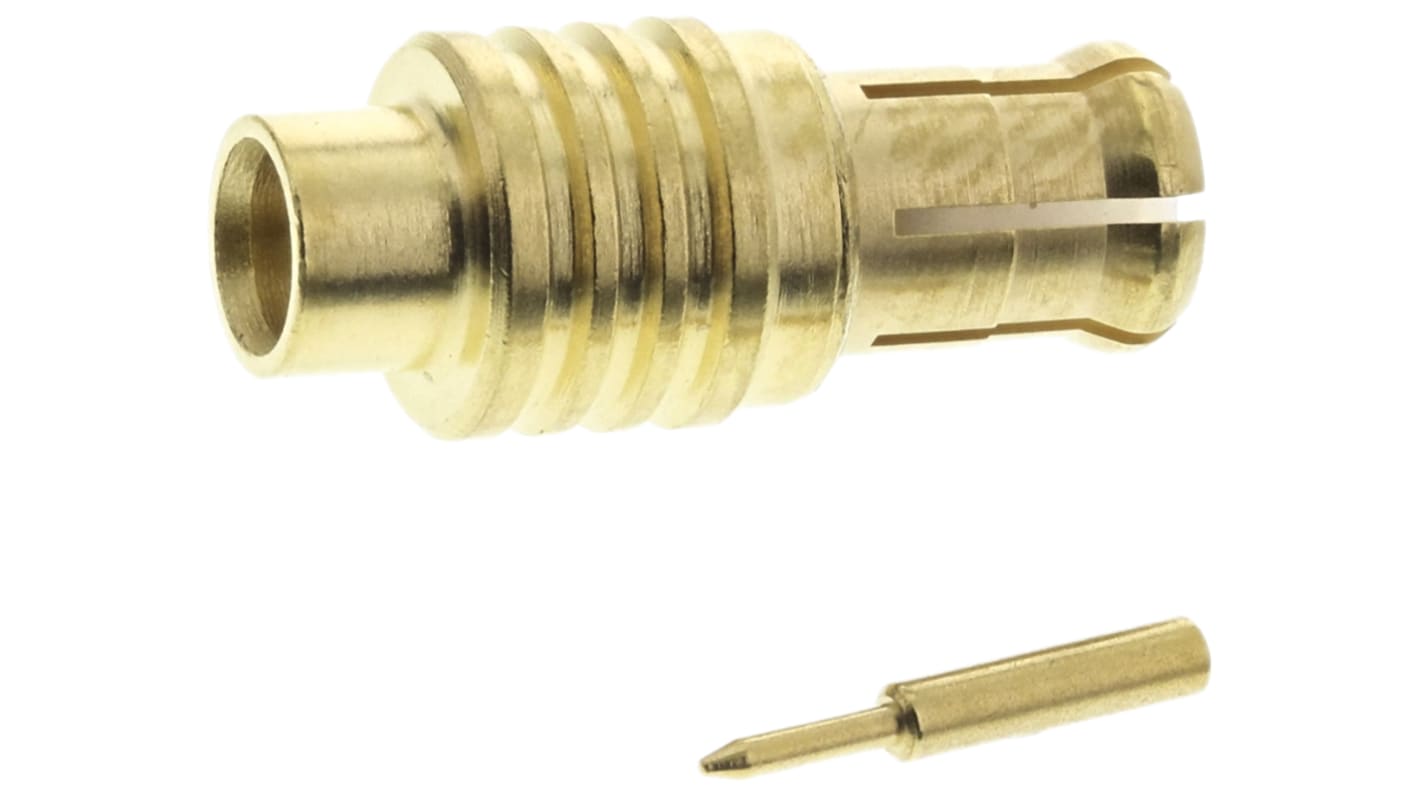

Radiall, Plug Cable Mount MCX Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 307-1011
- Mfr. Part No.:
- R113053000
- Manufacturer:
- Radiall
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR35.01
| Units | Per Unit |
| 1 - 24 | MYR35.01 |
| 25 - 49 | MYR34.03 |
| 50 + | MYR32.00 |
- RS Stock No.:
- 307-1011
- Mfr. Part No.:
- R113053000
- Manufacturer:
- Radiall
Technical data sheets
Legislation and Compliance
Product Details
MCX male plugs for soldering
MCX connectors, identical to the crimp series, but designed for mounting on semi-rigid cable.
Conform to CECC 22220 specifications.
Conform to CECC 22220 specifications.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Radiall MCX
Microminiature coaxial connectors suitable for industrial and military communication applications
Rapid push-pull snap-on mating action compatible with 75Ω versions
Similar to SMB but 30% smaller in size, ideal for use in equipments with restricted space
Available with gold or nickel plating (cable types only)
Tooling as for 75Ω version
Rapid push-pull snap-on mating action compatible with 75Ω versions
Similar to SMB but 30% smaller in size, ideal for use in equipments with restricted space
Available with gold or nickel plating (cable types only)
Tooling as for 75Ω version
MCX 50Ω
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | MCX Connector |
| Gender | Male |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Cable Type | RG405 |
| Operating Frequency | 0 to 6GHz |
| Body Plating | Gold over Nickel |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +115°C |
| Contact Material | Brass |
| Contact Plating | Gold over Nickel |
