Radiall Right Angle 50Ω Cable Mount SMA Connector, Crimp Termination RG141, RG58
- RS Stock No.:
- 295-6012
- Mfr. Part No.:
- R125175000W
- Manufacturer:
- Radiall
Temporarily out of stock - back order for despatch 23/07/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR138.97
| Units | Per Unit |
| 1 - 14 | MYR138.97 |
| 15 - 49 | MYR136.04 |
| 50 - 99 | MYR131.89 |
| 100 - 249 | MYR128.70 |
| 250 + | MYR125.93 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 295-6012
- Mfr. Part No.:
- R125175000W
- Manufacturer:
- Radiall
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

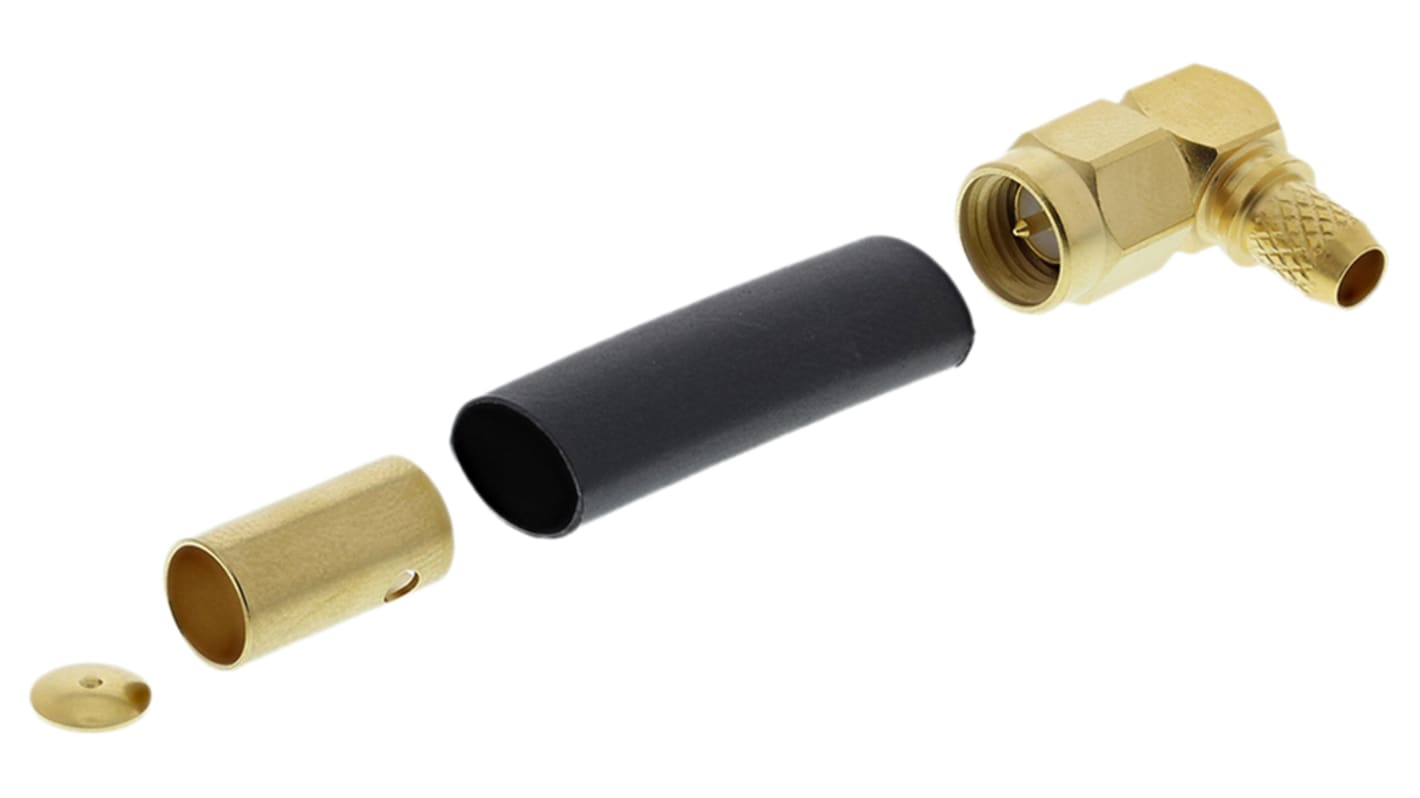

Radiall 50 Ohm SMA RF Coaxial Right Angle Crimp Plug Connectors, Stainless Steel Body
50 Ohm SMA RF coaxial right angle crimp plug connectors with screw-on mating and a solder or crimp termination. These 50 Ohm RF coax right angle SMA cable mount plugs have a gold plated stainless stainless steel body, gold plated centre contact, are supplied with a silicone gasket and are for use with a variety of RF coaxial cable types.
Approvals
N/A
Radiall SMA Gold Plated Stainless Steel
SMA connectors to MIL-C-39012 and BS 9210 N006 standards for high performance RF applications. Connectors have gold plated stainless steel bodies in a variety of popular semi-rigid and flexible cable applications.
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Mounting Type | Cable Mount |
| Body Orientation | Right Angle |
| Cable Type | RG141, RG58 |
| Termination Method | Crimp |
| Impedance | 50Ω |
| Operating Frequency | 0 → 12.4GHz |
| Body Plating | Gold |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +165 °C |
| Contact Plating | Gold over Nickel |
| Contact Material | Brass |
