    Amphenol RF BNC Series, jack Cable Mount BNC Connector, 50Ω, Crimp Termination, Straight Body

    Amphenol RF
    RS Stock No.:
    144-0904
    Mfr. Part No.:
    112443
    Manufacturer:
    Amphenol RF
    View all Coaxial Connectors
    30 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each

    MYR31.10

    unitsPer Unit
    1 - 9MYR31.10
    10 - 19MYR30.49
    20 - 49MYR29.89
    50 - 99MYR29.30
    100 +MYR28.72
    RS Stock No.:
    144-0904
    Mfr. Part No.:
    112443
    Manufacturer:
    Amphenol RF

    Technical data sheets


    Legislation and Compliance


    Product Details

    The Connex BNC connectors are made to a high quality level. Medium size coaxial connectors with bayonet lock. 50 ohm impedance for applications up to 4 GHz and 75 ohm impedance up to 2 GHz. 75 Ohm Series Within the internationally standardized BNC mating face dimensions, a perfect 75 ohm characteristic impedance cannot be realized. However, at frequencies up to 1000 MHz, the small impedance deviation is negligible for practical applications. Connex true 75 ohm connectors with a typical VSWR reading of 1.06:1 at 2000 MHz are identified by an asterisk following the part number. All 75 ohm BNC connectors and 50 ohm BNC connectors are intermateable without restrictions.

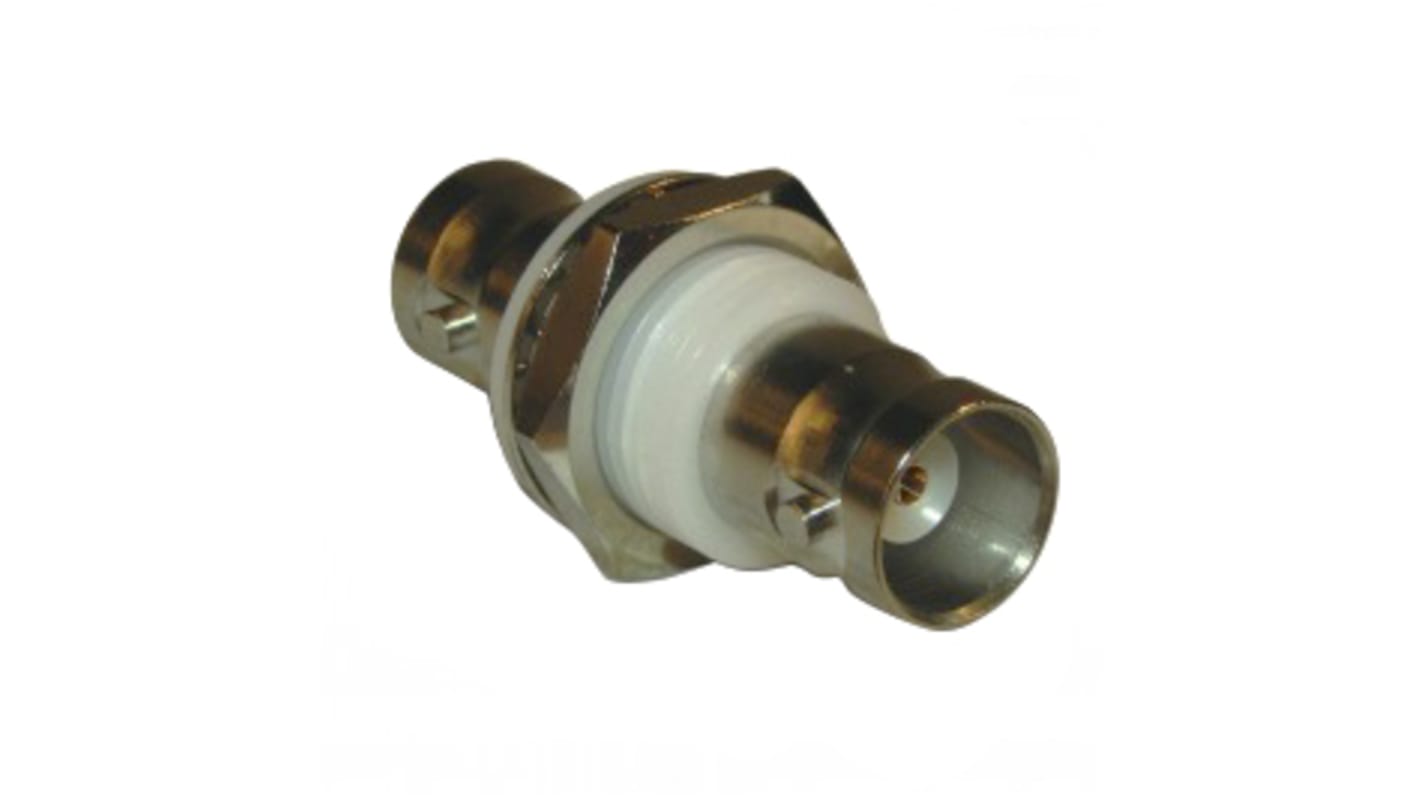

    Adapter, BNC Jack to BNC Jack, Bulkhead, 50 Ohms, Isolated


    Specifications

    Attribute
    Value
    GenderFemale
    Coaxial Connector TypeBNC Connector
    Mounting TypeCable Mount
    Impedance50Ω
    Termination MethodCrimp
    Body OrientationStraight
    SizeStandard
    BulkheadNo
    Operating Frequency4GHz
    Body PlatingNickel
    Minimum Operating Temperature-40°C
    Maximum Operating Temperature+85°C
    PolarityNormal
    SeriesBNC
    Contact MaterialPhosphor Bronze
    Contact PlatingGold
