Belden SDI Coaxial Cable, 100m, RG59 Coaxial, Unterminated
- RS Stock No.:
- 521-8284
- Manufacturer:
- Belden
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Reel of 100 Metre(s)
MYR3,309.27
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | MYR3,309.27 | MYR33.093 |
| 5 + | MYR2,723.52 | MYR27.235 |
| *price indicative | ||
- RS Stock No.:
- 521-8284
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details

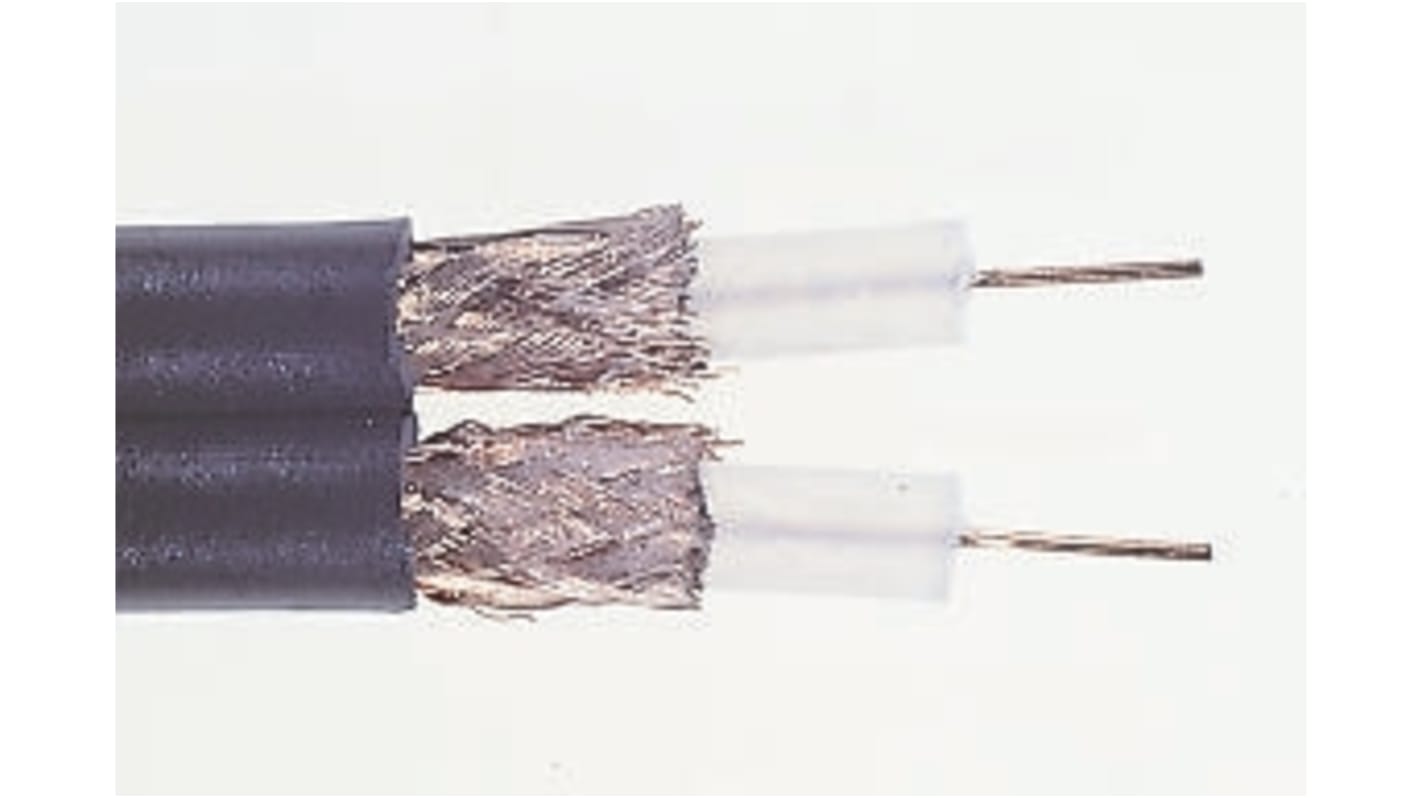

Twin RG59
A pair of RG59B/U coaxial cables edge bonded to form a figure of eight. Each conforms to the requirements for a RG59B/U cable.,This cable is intended for use with mini or micro computer systems.
Meets the requirements of MIL-C-17
Connector / Cable group F
Connector / Cable group F
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG59 |
| Outer Diameter | 6.12mm |
| CPR Certification | Eca |
| Characteristic Impedance | 75 Ω |
| Attenuation | 23 dB/100m @ 400MHz, 31.8 dB/100m @ 700MHz, 36.4 dB/100m @ 900MHz, 39.4 dB/100m @ 1GHz |
| Length | 100m |
| Sheath Colour | Black |
| Conductor Strand Type | Solid |
| Insulation Material | PE |
| Velocity ratio | 66% |
| Minimum Operating Temperature | -40°C |
| Sheath Material | Polyvinyl Chloride PVC |
| Number of Strands | 1 |
| Operating Temperature Range | -40 → +85 °C |
| Maximum Operating Temperature | +85°C |
| Size of Strands | 23 AWG |
| Conductor Material | Bare Copper Clad Steel |
| Core Strands | 1/23 |
| Capacitance | 67.3pF/m |
